1993 Suzuki VS800GL Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 1993 Suzuki VS800GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

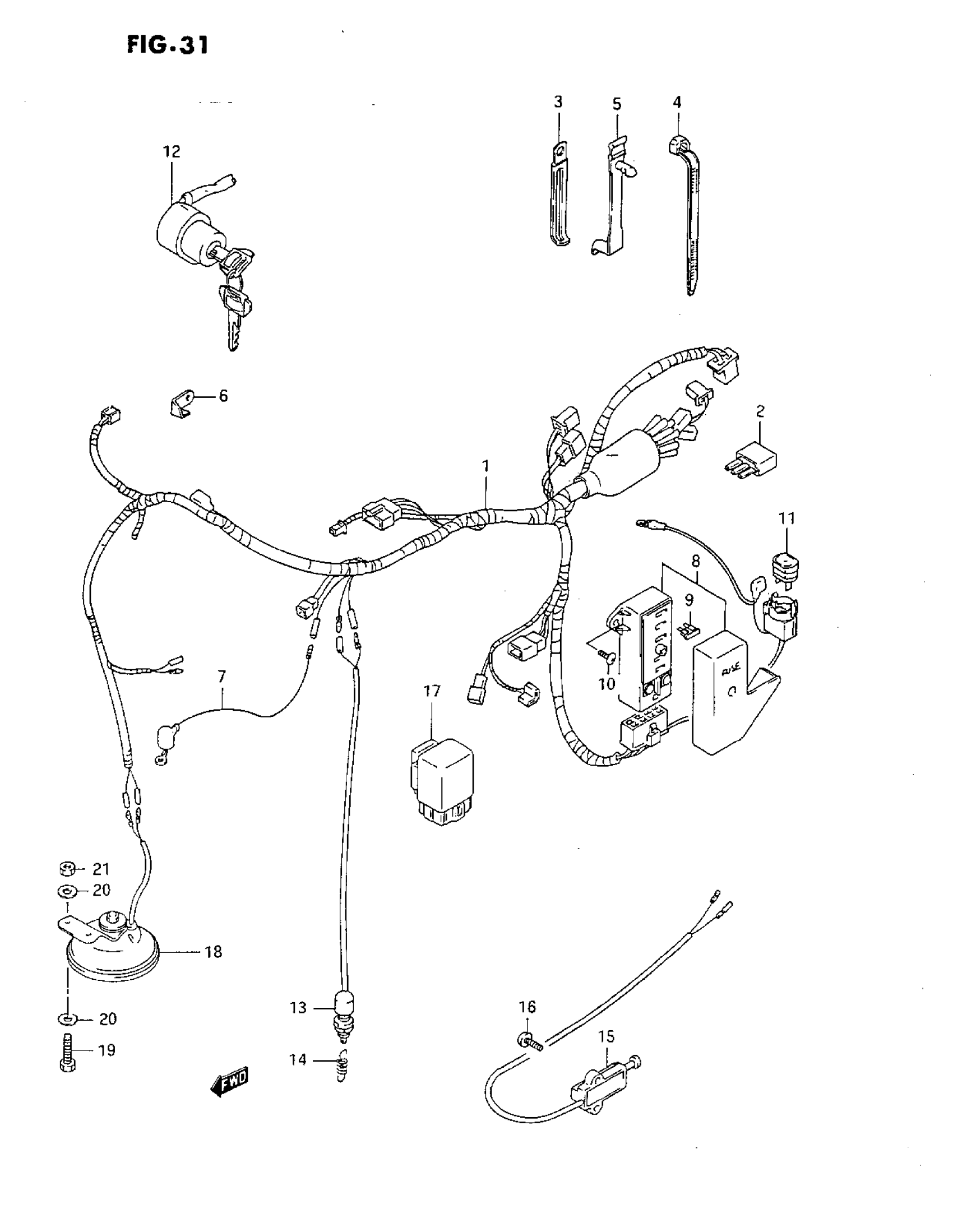

1993 Suzuki VS800GL Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING | MODEL N

36610-39A70

1
Out of stock

1

HARNESS, WIRING | MODEL P/R

36610-39A90

1
Out of stock

2

.DIODE This part replaces 36611-38A00.

36611-38A10

1
Out of stock

3

CLAMP (L:60) This part replaces 09404-05401.

09404-06429

1
Out of stock

3

CLAMP This part replaces 09404-06401.

09404-06039

1
Out of stock

3

CLAMP This part replaces 09404-06402.

09404-06039

1
Out of stock

3

CLAMP This part replaces 09404-06403.

09404-06039

2
Out of stock

3

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

1
Out of stock

4

CLAMP (L:125)

09407-14403

5
Out of stock

4

CLAMP (L:165)

09407-18402

7
Out of stock

5

CLAMP

09407-05403

1
Out of stock

6

PLATE, COUPLER HOLDER

36687-38A00

1
Out of stock

7

WIRE, WATER TEMP GAUGE

36851-38401

1
Out of stock

8

FUSE BOX ASSY | MODEL N

36740-38A00

1
Out of stock

8

FUSE BOX ASSY | MODEL P/R

36740-39A00

1
Out of stock

9

FUSE (IDA) | MODEL N

09481-10101

5
Out of stock

9

FUSE (IDA) | MODEL P/R

09481-10101

5
Out of stock

9

.FUSE (25A) | MODEL P/R This part replaces 09481-25101.

09481-25103

2
Out of stock

10

SCREW This part replaces 02142-06166.

02142-0616A

2
Out of stock

11

BREAKER ASSY, CIRCUIT | MODEL N

36750-05A00

1
Out of stock

12

SWITCH ASSY, IGNITION This part replaces 37110-38A02.

37110-38A04

1
Out of stock

13

SWITCH ASSY, STOP LAMP

37740-45D00

1
Out of stock

14

SPRING

09443-06046

1
Out of stock

15

SWITCH ASSY,SD This part replaces 37840-39A21.

37840-39A23

1
Out of stock

16

SCREW | MODEL N/P This part replaces 02112-76205.

02112-7620B

2
Out of stock

16

SCREW | MODEL R This part replaces 02112-76203.

02112-7620B

2
Out of stock

17

RELAY ASSY, SIDE STAND This part replaces 38740-39A00.

38740-24X50

1
Out of stock

18

HORN ASSY

38500-38A30

1
Out of stock

19

BOLT, REAR This part replaces 01107-06307.

01500-06307

1
Out of stock

20

WASHER This part replaces 08322-21067.

08322-01067

2
Out of stock

21

.NUT This part replaces 08310-11068.

08310-00067

1
Out of stock
