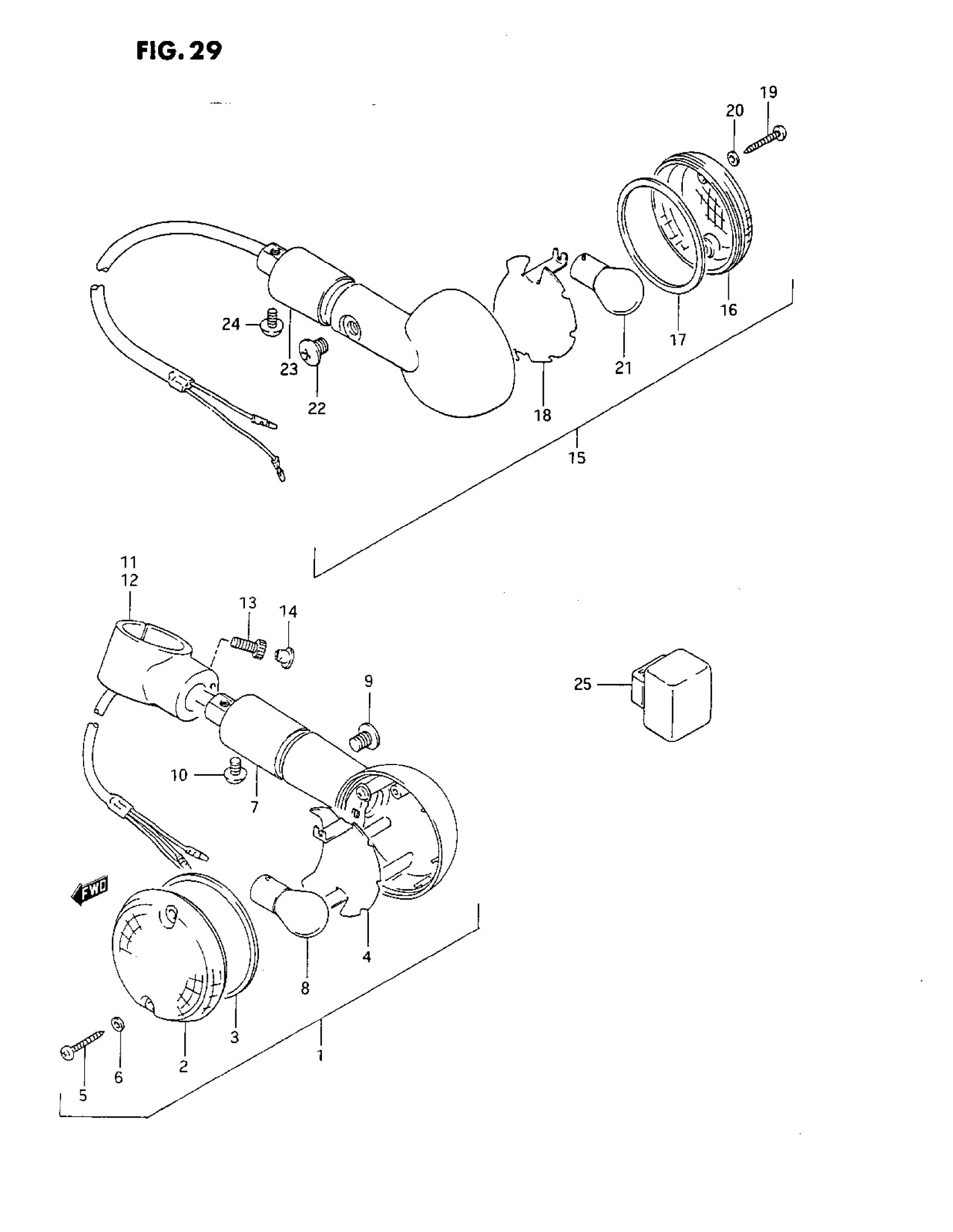

Suzuki VS800GL (1993) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FR TURN SIGNAL LH | MODEL N/P This part replaces 35601-39A00.

35601-38A32-999

Unavailable

1

LAMP ASSY, FR TURN SIGNAL LH | MODEL N/P This part replaces 35602-39A00.

35601-38A32-999

Unavailable

1

LAMP ASSY, FR TURN SIGNAL, L | MODEL R

35601-38A32-999

Unavailable

2

LENS

35612-38A30

$20.22

3

GASKET

35613-38A00

$10.99

4

REFLECTOR

35624-39A00

Unavailable

5

SCREW This part replaces 03211-04256.

03211-0425B

$2.95

6

GASKET

35627-43010

$2.29

7

STAY, TURN SIGNAL LAMP

35619-38A01

$45.50

8

BULB (12V, 21/5W)

09471-12128

$6.08

9

SCREW

35623-38A01

$4.75

10

SCREW

02142-06107

Unavailable

11

BRACKET, RH

35671-39A00

Unavailable

12

BRACKET, LH

35681-39A00

$89.85

13

BOLT This part replaces 07110-06167.

07130-06167

$4.03

14

CAP

09250-05008

$3.44

15

LAMP ASSY, REAR TURNSIGNAL,R | MODEL N/P This part replaces 35603-39A00.

35603-38A02-999

Unavailable

15

LAMP ASSY, REAR TURNSIGNAL,R | MODEL N/P This part replaces 35604-39A00.

35603-38A02-999

Unavailable

15

LAMP ASSY, RR TURN SIGNAL, L | MODEL R

35603-38A02-999

Unavailable

16

LENS

35612-38A01

$13.02

17

GASKET

35613-38A00

$10.99

18

REFLECTOR

35624-39A00

Unavailable

19

SCREW This part replaces 03211-04256.

03211-0425B

$2.95

20

GASKET

35627-43010

$2.29

21

BULB (12V 21W) This part replaces 09471-12056.

09471-12045

$2.95

22

SCREW

35623-38A01

$4.75

23

STAY, TURN SIGNAL LAMP

35619-38A01

$45.50

24

SCREW

02142-06107

Unavailable

25

RELAY, TURN SIGNAL | MODEL N/P This part replaces 38610-45D00.

38610-45D01

$88.43

25

RELAY, TURN SIGNAL | MODEL R

38610-45D01

$88.43
