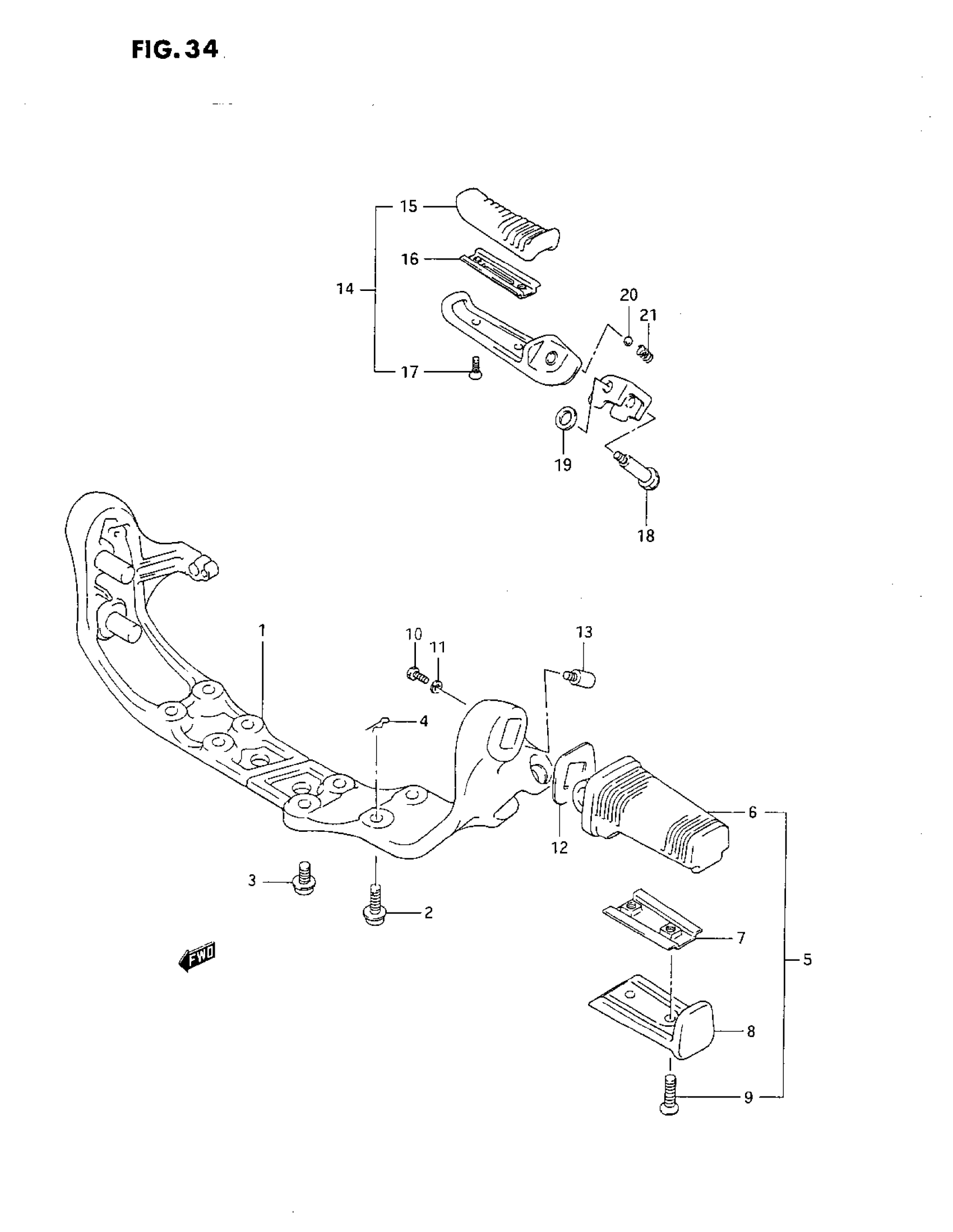

Suzuki VS800GL (1993) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST This part replaces 43510-38A42.

43510-38E01

Unavailable

2

BOLT, OUTER

09106-08064

$3.00

3

BOLT This part replaces 07120-08208.

07120-0820A

$2.88

4

PIN

09385-08005

$2.01

5

FOOTREST ASSY, FRONT RH This part replaces 43501-38B10.

43501-38B11

$169.60

5

FOOTREST ASSY, FRONT LH This part replaces 43502-38B10.

43502-38B11

$141.20

6

RUBBER,FR FOOTR This part replaces 43551-38B00.

43551-38B01

$14.85

7

PLATE, FOOTREST

43580-38B10

$14.18

8

COVER, FRONT FOOTREST This part replaces 43585-38B10.

43585-38B11

Unavailable

9

SCREW

09127-05018

Unavailable

10

BOLT, RUBBER STOP This part replaces 01107-05127.

01500-05127

$2.65

11

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.83

12

WASHER, FRONT FOOTREST This part replaces 43546-38B00.

43546-38B01

$7.07

13

BOLT This part replaces 43641-38B00.

09106-06101

$3.10

14

FOOTREST ASSY, PILLION RH

43600-38A01

Unavailable

14

FOOTREST ASSY,P This part replaces 43700-38A01.

43700-38A02

Unavailable

15

RUBBER,PILLION This part replaces 43612-38A00.

43612-38A10

$9.67

16

PLATE, RUBBER STOPPER

43632-38A00

$8.32

17

SCREW

09127-05017

$3.00

18

BOLT

09111-06050

$5.00

19

SHIM

08221-08164

$2.35

20

BALL

06111-07004

$1.22

21

SPRING

09440-05031

$1.45
