1993 Suzuki VS800GL Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 1993 Suzuki VS800GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

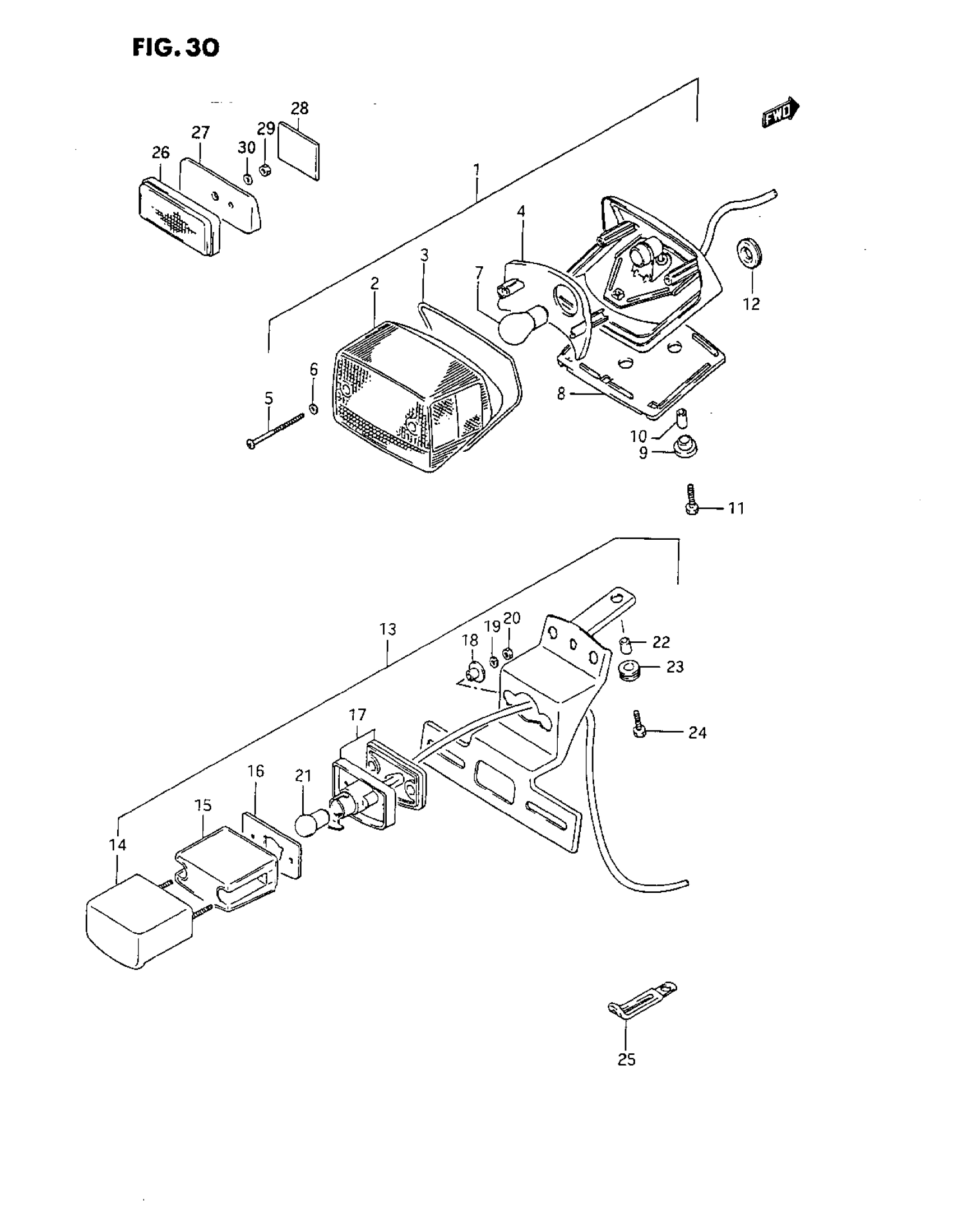

1993 Suzuki VS800GL Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION This part replaces 35710-39A00.

35710-39A00-999

1
Out of stock

2

LENS

35712-38A30

1
Out of stock

3

GASKET This part replaces 35713-38A00.

35713-31D00

1
Out of stock

4

REFLECTOR

35714-38A00

1
Out of stock

5

SCREW

35723-44130

2
Out of stock

6

GASKET

35627-43010

2
Out of stock

7

BULB (12V, 21/5W)

09471-12128

1
Out of stock

8

CUSHION

35765-38A00

1
Out of stock

9

CUSHION

35764-26470

3
Out of stock

10

SPACER

35766-37190

3
Out of stock

11

BOLT (6X25) This part replaces 09116-06087.

09116-06047

3
Out of stock

12

GROMMET

09308-09013

1
Out of stock

13

LAMP ASSY, LICENSE

35910-38A33

1
Out of stock

14

COVER, LICENSE LAMP

35917-38A20

1
Out of stock

15

LENS

35912-38A30

1
Out of stock

16

GASKET

35913-38A30

1
Out of stock

17

HOUSING, LICENSE LAMP

35915-38A31

1
Out of stock

18

SPACER

35766-38A30

2
Out of stock

19

LOCK WASHER This part replaces 08321-21047.

08321-0104A

2
Out of stock

20

NUT This part replaces 08310-11047.

08310-00047

2
Out of stock

21

BULB (12V, 8W)

09471-12141

1
Out of stock

22

SPACER

35766-38A00

3
Out of stock

23

CUSHION

35765-38A30

3
Out of stock

24

BOLT (6X20) This part replaces 09116-06065.

09116-06010

3
Out of stock

25

CLAMP This part replaces 09404-06402.

09404-06039

1
Out of stock

26

REFLEX REFLECTOR

35970-38B00

1
Out of stock

26

REFLEX REFLECTOR | CALIFORNIA ONLY

35970-38A00

1
Out of stock

27

SPACER This part replaces 35977-38B00.

35977-38B30

1
Out of stock

28

COVER, HARNESS This part replaces 36920-06400.

36920-02200

1
Out of stock

29

NUT This part replaces 08310-22056.

08310-0005A

1
Out of stock

29

NUT | CALIFORNIA ONLY This part replaces 08316-16056.

08316-1005A

2
Out of stock

30

WASHER, FRONT This part replaces 08322-21056.

08322-0105A

1
Out of stock
