1987 Suzuki VS700GLEF Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 1987 Suzuki VS700GLEF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

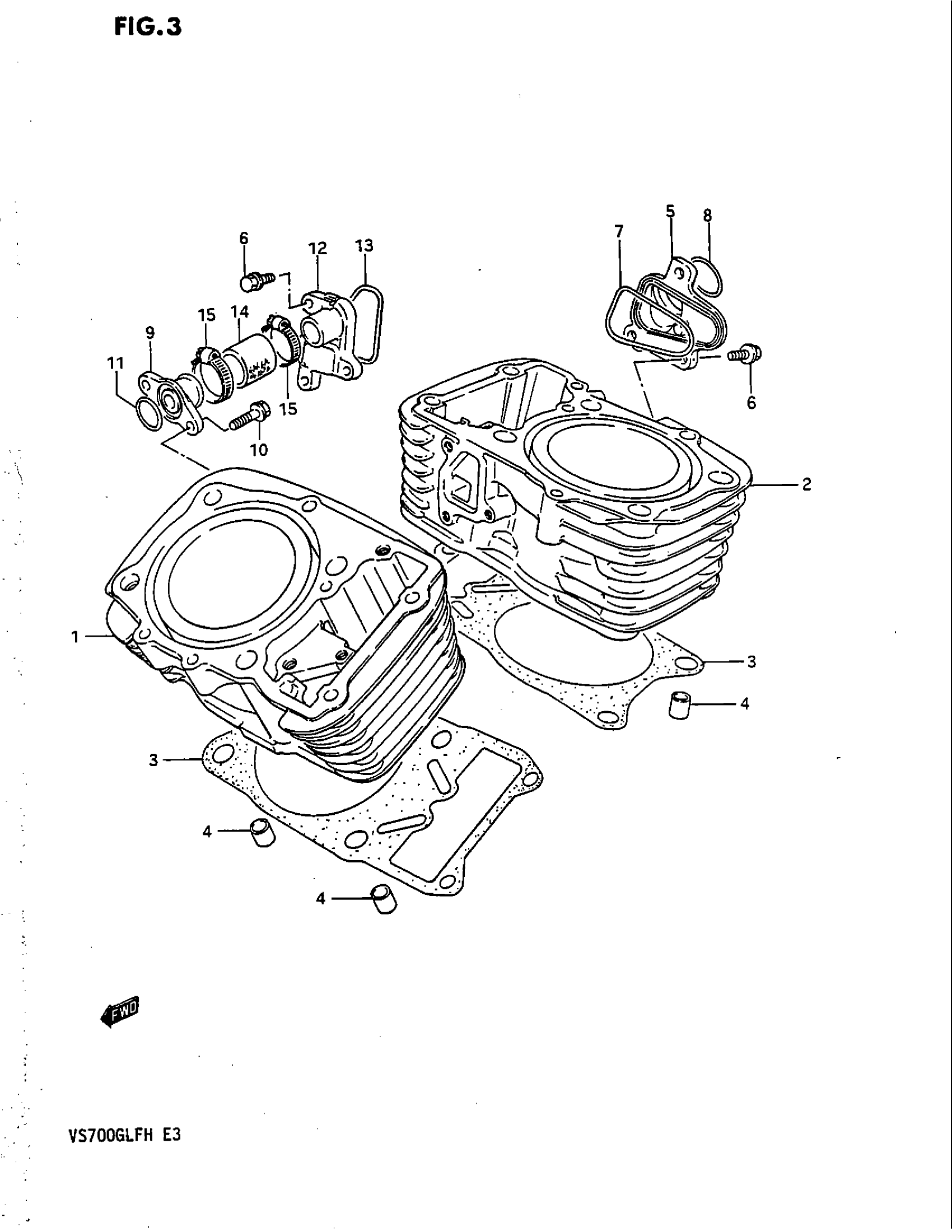

1987 Suzuki VS700GLEF Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER, FRONT

11210-38A02

1
Out of stock

2

CYLINDER, REAR

11220-38A02

1
Out of stock

3

GASKET, CYLINDER This part replaces 11241-38A10.

11241-45C20

2
Out of stock

4

PIN This part replaces 09206-13001.

04211-13189

4
Out of stock

5

CONNECTOR, WATER INLET This part replaces 11237-38A00.

11237-41F00

1
Out of stock

6

BOLT This part replaces 01547-06208.

01547-06207

6
Out of stock

7

O RING

11247-38A00

1
Out of stock

8

O RING

09280-24007

1
Out of stock

9

UNION, WATER INLET This part replaces 11235-38A00.

11235-41F00

1
Out of stock

10

BOLT This part replaces 01547-06168.

01547-06167

2
Out of stock

11

O RING

09280-16005

1
Out of stock

12

CHAMBER, WATER OUTLET This part replaces 11236-38A00.

11236-45C10

1
Out of stock

13

O RING

11246-38A00

1
Out of stock

14

HOSE, CYLINDER JOINT This part replaces 17853-38A00.

17851-01A00

1
Out of stock

15

CLAMP This part replaces 09402-25501.

09402-28511

2
Out of stock
