1987 Suzuki VS700GLEF Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1987 Suzuki VS700GLEF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

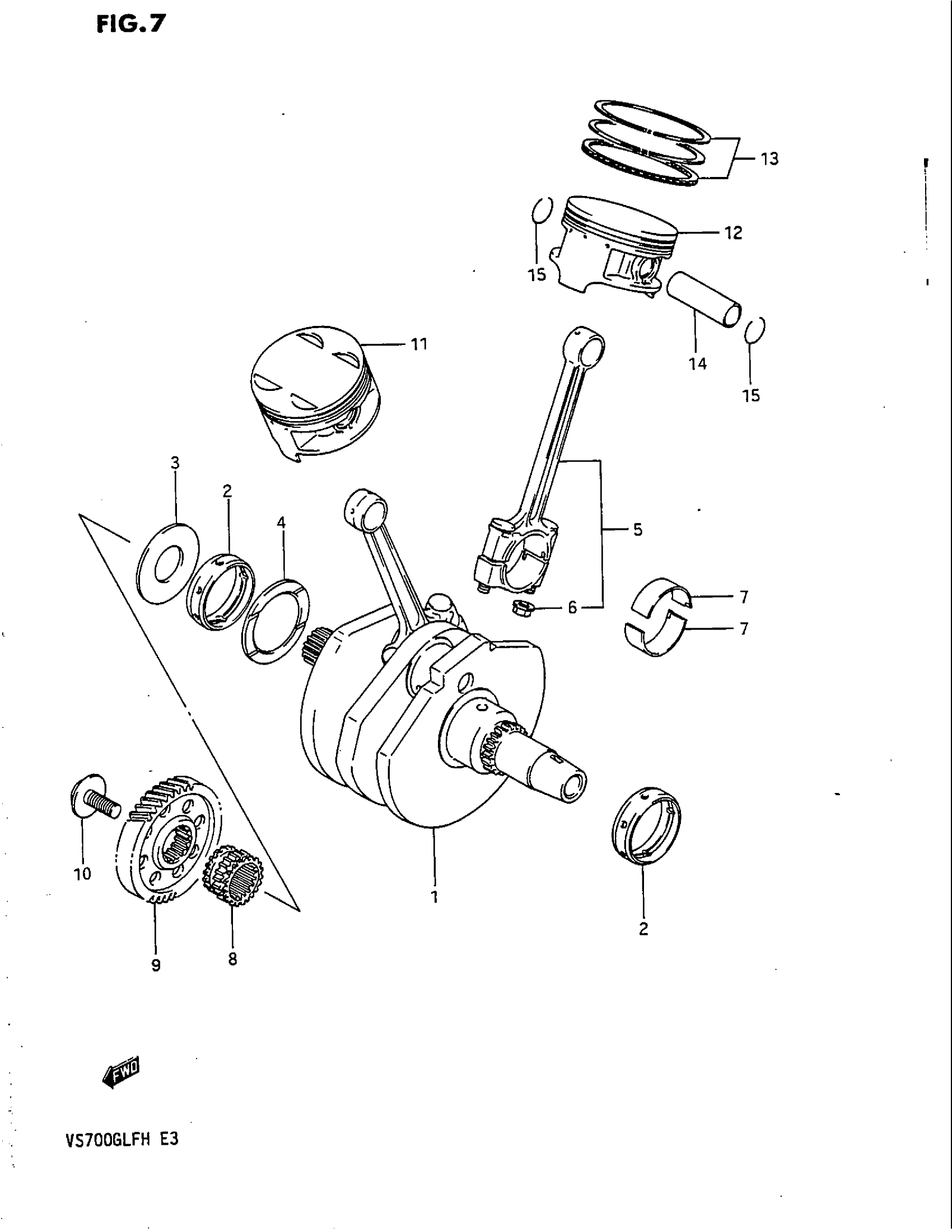

1987 Suzuki VS700GLEF Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 12220-38A01.

12000-38830

1
Out of stock

2

BEARING, CRANKSHAFT | INC. CRANK CASE SET

12229-38A00

2
Out of stock

3

WASHER, CRANK THRUST

12652-38A00

1
Out of stock

4

WASHER, CRANK THRUST (NO.1)

09160-48001

1
Out of stock

4

WASHER, CRANK THRUST (NO.2)

09160-48002

1
Out of stock

4

WASHER, CRANK THRUST (NO.3)

09160-48003

1
Out of stock

4

WASHER, CRANK THRUST (NO.4)

09160-48004

1
Out of stock

4

WASHER, CRANK THRUST (NO.5)

09160-48005

1
Out of stock

4

WASHER, CRANK THRUST (NO.6)

09160-48006

1
Out of stock

4

WASHER, CRANK THRUST (NO.7)

09160-48007

1
Out of stock

4

WASHER, CRANK THRUST (NO.8)

09160-48008

1
Out of stock

4

WASHER, CRANK THRUST (NO.9)

09160-48009

1
Out of stock

4

WASHER, CRANK THRUST (NO.10)

09160-48010

1
Out of stock

5

ROD ASSY, CONNECTING | Includes Item(s) 6

12160-38A01

2
Out of stock

6

NUT

09159-09001

4
Out of stock

7

BEARING, CRANK PIN (GREEN) This part replaces 12164-38A01-0A0.

12164-45C01-0A0

4
Out of stock

7

BEARING, CRANK PIN (BLACK) This part replaces 12164-38A01-0B0.

12164-45C01-0B0

4
Out of stock

7

BEARING, CRANK PIN (BROWN) This part replaces 12164-38A01-0C0.

12164-45C01-0C0

4
Out of stock

7

BEARING, CRANK PIN (YELLOW) This part replaces 12164-38A01-0D0.

12164-45C01-0D0

4
Out of stock

7

BEARING, CRANK PIN (BLUE) This part replaces 12164-38A01-0E0.

12164-45C01-0E0

4
Out of stock

8

SPROCKET, CAM CHAIN DRIVE RH

12731-38A00

1
Out of stock

9

GEAR, PRIMARY DRIVE

21111-38A00

1
Out of stock

10

BOLT

09103-12013

1
Out of stock

11

PISTON, FRONT This part replaces 12111-38A02.

12111-38A12

1
Out of stock

11

PISTON,SET | OPT This part replaces 12111-38A02-050.

12103-38830-050

1
Out of stock

11

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-38A02-100.

12103-38830-100

1
Out of stock

12

PISTON, REAR This part replaces 12112-38A01.

12112-38A12

1
Out of stock

12

PISTON SET,OS:0 | OPT This part replaces 12112-38A01-050.

12103-38880-050

1
Out of stock

12

NO DESCRIPTION AVAILABLE | OPT This part replaces 12112-38A01-100.

12103-38880-100

1
Out of stock

13

RING SET, PISTON

12140-38A20

2
Out of stock

13

RING SET, PISTON (OS:0.5) | OPT

12140-38A20-050

2
Out of stock

13

RING SET, PISTON (OS:1.0) | OPT

12140-38A20-100

2
Out of stock

14

PIN,PISTON

12151-24A00

2
Out of stock

15

CIRCLIP

09381-20004

4
Out of stock
