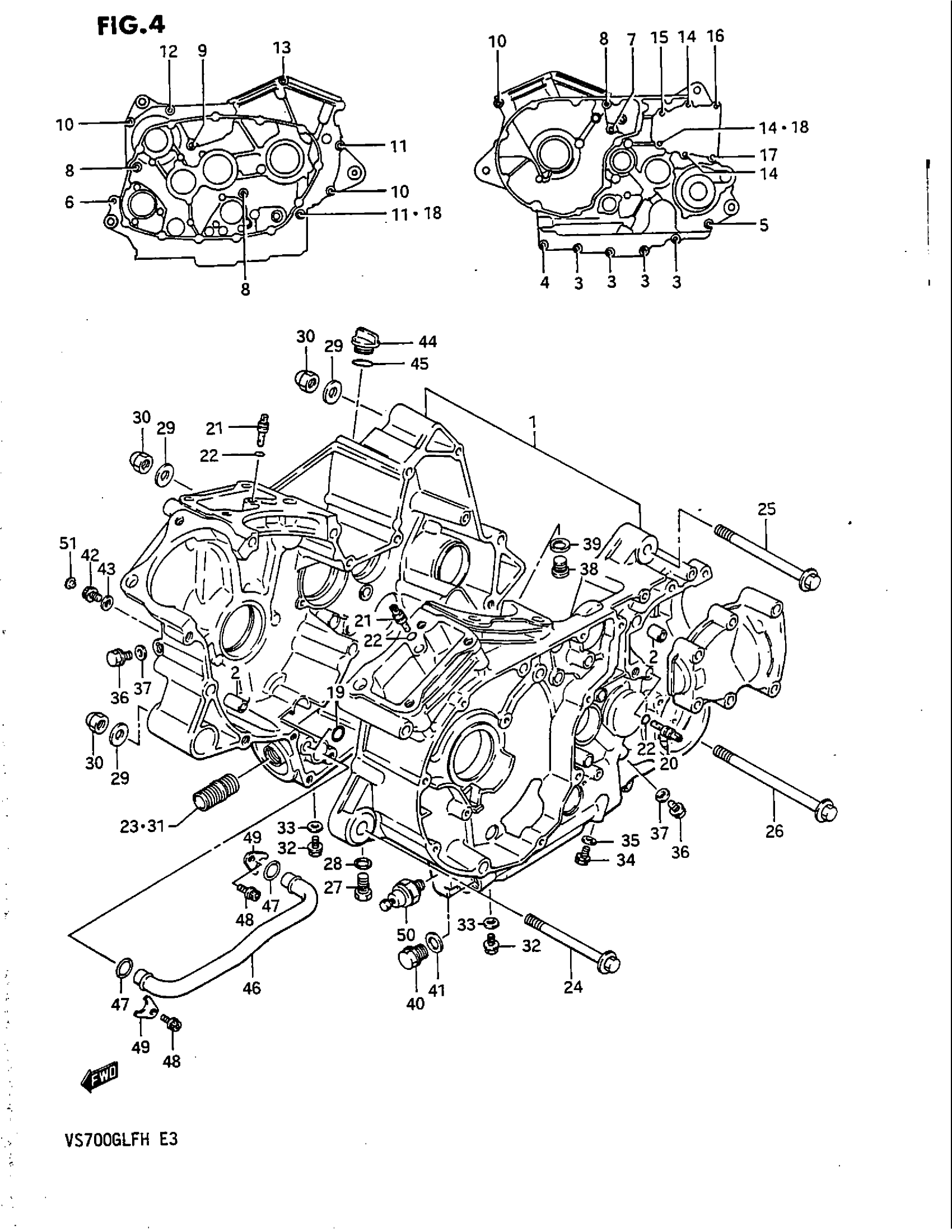

Suzuki VS700GLEF (1987) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL G ~F.NO.111193 This part replaces 11300-38890.

11300-38898

Unavailable

1

CRANKCASE SET | MODEL G F.NO.111194~ This part replaces 11300-38893.

11300-38898

Unavailable

1

CRANKCASE SET | MODEL H; Includes Item(s) 2 - 23 This part replaces 11300-38894.

11300-38898

Unavailable

2

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.85

3

BOLT This part replaces 01517-06408.

01550-06407

$2.73

4

BOLT This part replaces 01517-08358.

01550-08357

$3.19

5

BOLT This part replaces 01517-08558.

01550-08557

$3.25

6

BOLT This part replaces 01517-08608.

01550-08607

$3.44

7

BOLT This part replaces 01517-08758.

01550-08757

$5.10

8

BOLT This part replaces 01517-08958.

01550-08957

$5.83

9

BOLT (8X120)

09103-08109

$2.92

10

BOLT (8X95)

09103-08164

$5.17

11

BOLT (8X105)

09103-08165

Unavailable

12

BOLT (8X120)

09103-08166

Unavailable

13

BOLT (8X160)

09103-08167

Unavailable

14

BOLT This part replaces 01517-08408.

01550-08407

$2.63

15

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.25

16

BOLT (8X55)

09103-08162

Unavailable

17

BOLT (8X65)

09103-08163

$2.72

18

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.64

19

O RING (D:1.9,ID:12.6) This part replaces 09280-13007.

09280-12009

$2.87

20

JET,T/M OIL GALLERY

09493-20014

$18.33

21

JET, OIL GALLERY

09493-28010

$18.00

22

O RING

09280-04004

$1.76

23

UNION, OIL FILTER | MODEL G

16591-05A00

Unavailable

24

BOLT (10X125) This part replaces 09103-10062.

09103-10141

$9.15

25

BOLT (10X130) This part replaces 09103-10065.

09103-10237

$10.53

26

BOLT (10X150)

09103-10078

$9.33

27

BOLT This part replaces 01107-12208.

01500-1220B

$4.35

28

GASKET

09168-12002

$1.59

29

WASHER, KNUCKLE END This part replaces 08322-11105.

08322-0110A

$1.83

30

NUT

09159-10052

$9.08

31

UNION,OIL STAND | MODEL H This part replaces 16591-06B00.

16591-06B01

$6.45

32

BOLT This part replaces 01517-08128.

01550-08127

$2.15

33

GASKET

09168-08015

$2.77

34

PLUG, OIL GALLERY

09247-10001

$2.06

35

GASKET

09168-10002

$1.96

36

BOLT This part replaces 01517-06108.

01550-06107

$3.05

37

WASHER

09168-06023

$2.01

38

PLUG, OIL GALLERY

09248-16008

$6.22

39

GASKET

09168-16002

$1.89

40

PLUG This part replaces 09247-14012.

09247-14026

$3.38

41

GASKET

09168-14004

$1.69

42

PLUG, OIL GALLERY

07120-08127

Unavailable

43

GASKET

09168-08015

$2.77

44

PLUG, OIL FILLER This part replaces 09259-20009.

09259-20007

$6.89

45

O RING

09280-17003

$1.64

46

PIPE, OIL GALLERY

11451-38A00

Unavailable

47

O RING

09280-15008

$2.35

48

BOLT, OIL GALLERY This part replaces 07120-06128.

07120-06127

$4.18

49

CLAMP

11461-38A00

Unavailable

50

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33200.

37820-33D11

$27.58

51

CAP

09250-06011

$2.53
