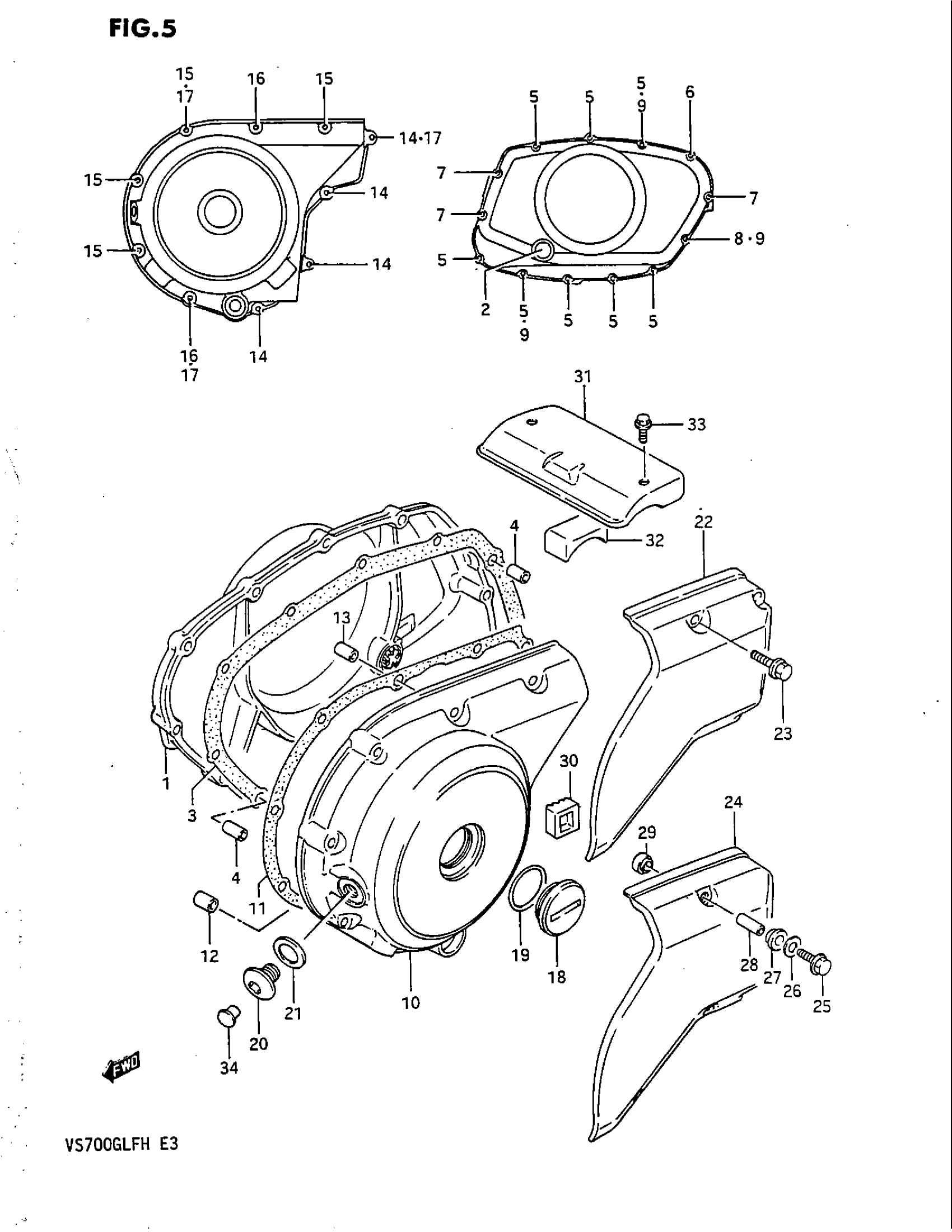

Find the part on the Crankcase Cover diagram for your 1987 Suzuki VS700GLEF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki VS700GLEF Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | Includes Item(s) 2

11340-38A00

1
Out of stock

2

LENS, OIL LEVEL

11971-33210

1
Out of stock

3

GASKET, CLUTCH COVER This part replaces 11482-38A00.

11482-41F00

1
Out of stock

4

PIN

04211-09189

2

$1.77

In stock

5

BOLT

01547-06307

8
Out of stock

6

BOLT

01547-06357

1
Out of stock

7

BOLT

01547-06457

3
Out of stock

8

BOLT

01547-06607

1
Out of stock

9

GASKET

09168-06023

3
Out of stock

10

COVER, GENERATOR This part replaces 11351-38A01.

11351-38A02

1
Out of stock

11

GASKET, GENERATOR COVER This part replaces 11483-38A00.

11483-41F00

1
Out of stock

12

PIN (11X20) This part replaces 09206-11005.

09206-11017

1
Out of stock

13

PIN

04211-09189

1

$1.77

In stock

14

BOLT This part replaces 01547-06308.

01547-06307

4
Out of stock

15

BOLT

01547-06407

4
Out of stock

16

BOLT

01547-06507

2
Out of stock

17

GASKET

09168-06023

3
Out of stock

18

PLUG, ACCESS

09259-36008

1
Out of stock

19

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

20

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

1
Out of stock

21

GASKET

09168-14004

1
Out of stock

22

COVER, SECONDARY DRIVE | ~F.NO.111193

11361-38A10

1
Out of stock

23

BOLT | ~F.NO.111193

01547-06457

4
Out of stock

24

COVER, SECONDARY DRIVE | F.NO.111194~

11361-38A50

1
Out of stock

25

BOLT | F.NO.111194~

01547-06457

3
Out of stock

26

WASHER | F.NO.111194~ This part replaces 09160-06097.

09160-06125

3
Out of stock

27

CUSHION, OUTER | F.NO.111194~

09161-09006

3
Out of stock

28

SPACER, LICENSE LAMP | F.NO.111194~ This part replaces 09180-06160.

09180-06278

3
Out of stock

29

CUSHION, INNER | F.NO.111194~

09161-09005

3
Out of stock

30

DAMPER, SECONDARY COVER

11369-38A00

1
Out of stock

31

COVER, STARTER MOTOR This part replaces 31210-38A00.

31210-38A01

1
Out of stock

32

DAMPER

31212-38A00

1
Out of stock

33

BOLT

01547-05087

2
Out of stock

34

CAP

09250-08014

1
Out of stock
