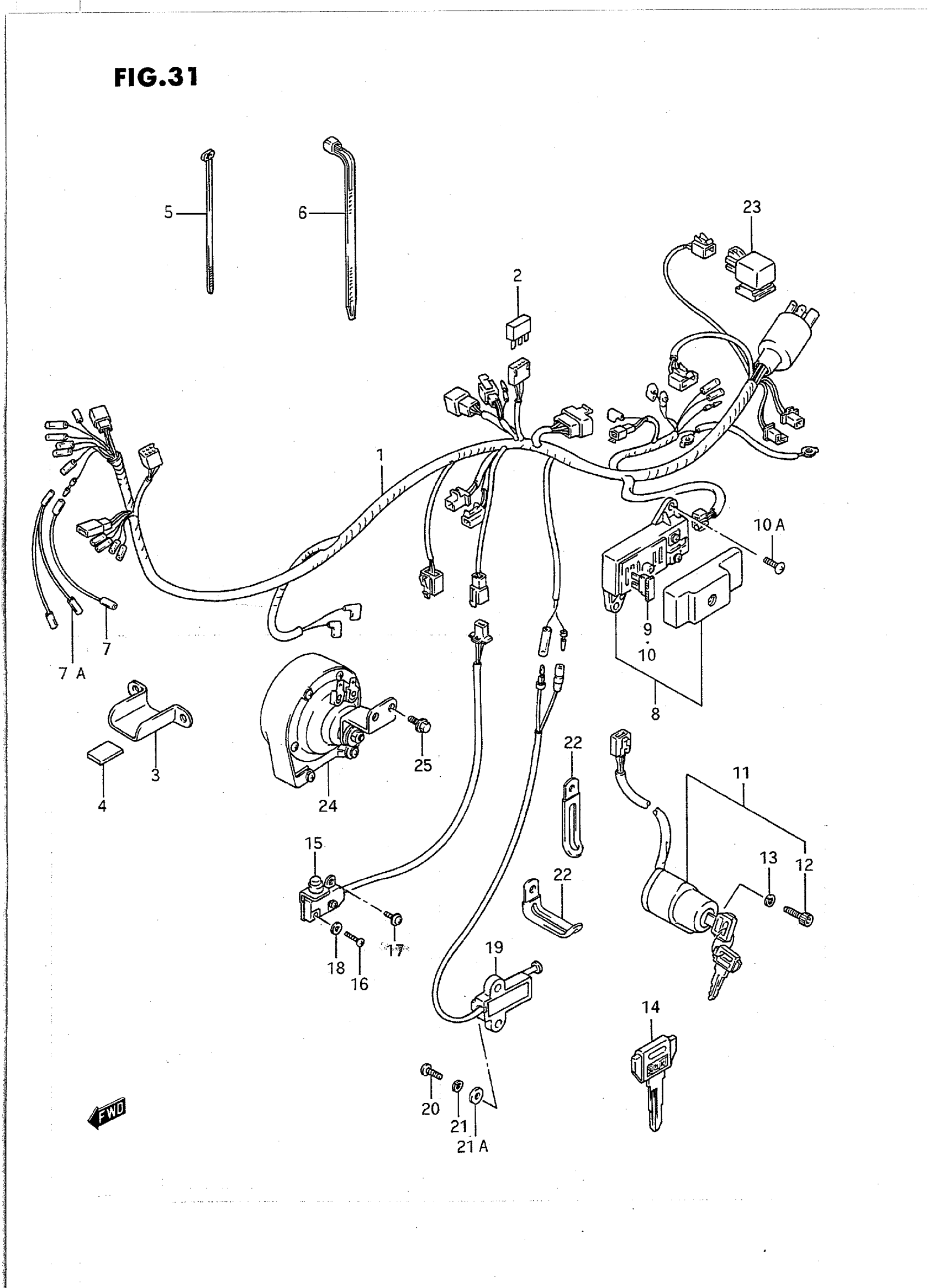

Find the part on the Wiring Harness diagram for your 1995 Suzuki VS1400GLPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki VS1400GLPS Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 36610-38B00.

36610-38B21

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 36610-38B80.

36610-38B21

1
Out of stock

1

HARNESS, WIRING | MODEL L/M/N This part replaces 36610-39B30.

36610-39B01

1
Out of stock

1

HARNESS, WIRING | MODEL P/R This part replaces 36610-39B80.

36610-39B01

1
Out of stock

1

HARNESS, WIRING | MODEL S; Includes Item(s) 2

36610-39B01

1
Out of stock

2

.DIODE This part replaces 36611-38A00.

36611-38A10

1
Out of stock

3

GUIDE, WIRING HARNESS

36619-38B00

1
Out of stock

4

PROTECTOR, WIRING HARNESS

36920-38B00

1
Out of stock

5

CLAMP

09407-09402

1
Out of stock

6

CLAMP (L:125)

09407-14403

6
Out of stock

6

CLAMP (L:145)

09407-14407

1
Out of stock

6

CLAMP This part replaces 09407-18403.

09407-18402

2
Out of stock

7

WIRE, CLUTCH SWITCH | MODEL H This part replaces 36852-38B00.

36852-38B10

1
Out of stock

7A

WIRE, CLUTCH SWITCH | MODEL J/L/M/N/P/R/S

36852-38B10

1
Out of stock

8

BOX ASSY, FUSE | MODEL H/J/L/M/N/P/R This part replaces 36740-38B00.

36740-19C00

1
Out of stock

8

BOX ASSY, FUSE | MODEL S; Includes Item(s) 9 - 10

36740-19C00

1
Out of stock

9

.FUSE (25A) This part replaces 09481-25101.

09481-25103

1
Out of stock

10

FUSE (10A)

09481-10101

4
Out of stock

10A

SCREW This part replaces 02142-06163.

02142-0616A

2
Out of stock

11

SWITCH ASSY, IGNITION | MODEL H/J This part replaces 37110-38B00.

37110-38B03

1
Out of stock

11

SWITCH ASSY, IGNITION | MODEL L/M/N/P/R/S This part replaces 37110-38B01.

37110-38B03

1
Out of stock

11

SWITCH ASSY, IGNITION | MODEL S; Includes Item(s) 12 - 13 This part replaces 37110-38B02.

37110-38B03

1
Out of stock

12

BOLT This part replaces 07110-05167.

07130-05167

1
Out of stock

13

LOCK WASHER This part replaces 08321-01057.

08321-0105A

1
Out of stock

14

KEY, BLANK TYPE C | OPT

37146-03A00

1
Out of stock

14

KEY, BLANK TYPE D | OPT

37146-03A10

1
Out of stock

14

KEY, BLANK TYPE E | OPT

37146-03A20

1
Out of stock

14

KEY, BLANK TYPE F | OPT

37146-03A30

1
Out of stock

15

SWITCH ASSY, STOP LAMP

37740-38B00

1
Out of stock

16

1

$1.34

In stock

17

SCREW | MODEL H/J/L/M/N/P/R

02152-04067

1
Out of stock

17

SCREW | MODEL S This part replaces 02142-04063.

02142-0406A

1
Out of stock

18

WASHER This part replaces 08322-21045.

08322-0104A

1
Out of stock

19

SWITCH ASSY,SD | MODEL H This part replaces 37840-39A10.

37840-39A23

1
Out of stock

19

SWITCH ASSY,SD | MODEL J This part replaces 37840-39A20.

37840-39A23

1
Out of stock

19

SWITCH ASSY,SD | MODEL L/M/N/P/R This part replaces 37840-39A21.

37840-39A23

1
Out of stock

19

SWITCH ASSY,SD | MODEL S This part replaces 37840-39A22.

37840-39A23

1
Out of stock

20

SCREW | MODEL H This part replaces 02112-06164.

02112-0616A

2
Out of stock

20

SCREW | MODEL P This part replaces 02112-76205.

02112-7620B

2
Out of stock

20

SCREW | MODEL R/S This part replaces 02112-76203.

02112-7620B

2
Out of stock

21

2

$1.97

In stock

21A

.WASHER | MODEL J/L/M/N This part replaces 08322-21064.

08322-0106B

2
Out of stock

22

CLAMP This part replaces 09404-06206.

09404-06039

3
Out of stock

23

RELAY ASSY, SIDE STAND | MODEL H/J/L/M/N/P/R

38740-38B00

1
Out of stock

23

RELAY ASSY, SIDE STAND | MODEL S

38740-24X50

1
Out of stock

24

HORN ASSY

38500-38B01

1
Out of stock

25

BOLT, CLAMP | MODEL H/J/L/M/N/P This part replaces 01517-06125.

01550-0612A

2
Out of stock

25

BOLT, CLAMP | MODEL R/S This part replaces 01550-06123.

01550-0612A

2
Out of stock
