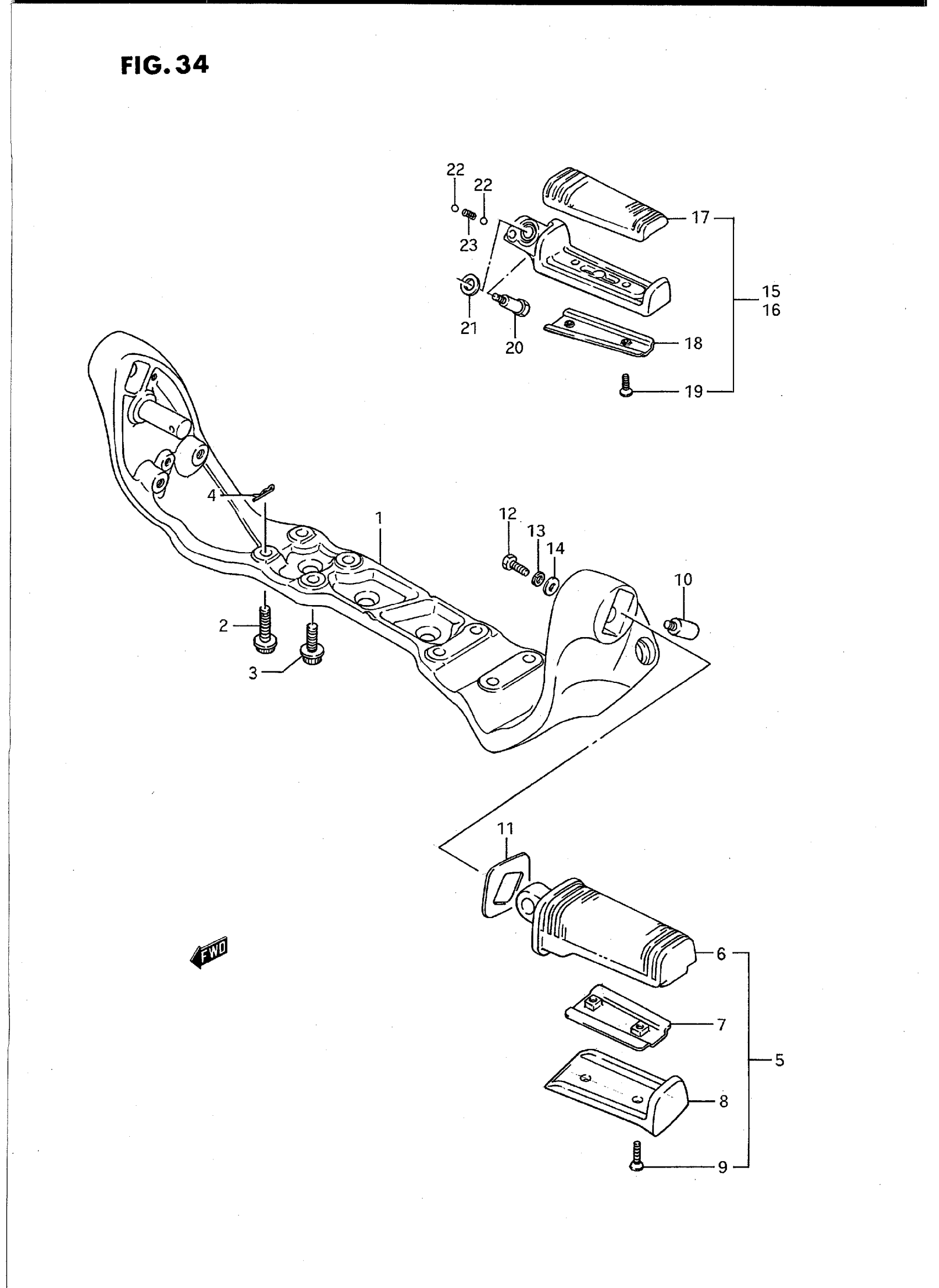

Suzuki VS1400GLPS (1995) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST | MODEL H/J/L/M This part replaces 43510-38B01.

43510-39B20

Unavailable

1

BRACKET, FRONT FOOTREST | MODEL N/P/R/S This part replaces 43510-38B02.

43510-39B20

Unavailable

2

BOLT, OUTER

09106-08064

$3.00

3

BOLT | MODEL H/J/L/M/N/P/R This part replaces 07120-08208.

07120-0820A

$2.88

3

BOLT | MODEL S This part replaces 07120-08203.

07120-0820A

$2.88

4

PIN

09385-08005

$2.01

5

FOOTREST ASSY, FRONT RH This part replaces 43501-38B10.

43501-38B11

$169.60

5

FOOTREST ASSY, FRONT LH | Includes Item(s) 6 - 9 This part replaces 43502-38B10.

43502-38B11

$141.20

6

RUBBER,FR FOOTR This part replaces 43551-38B00.

43551-38B01

$14.85

7

PLATE, RUBBER

43580-38B10

$14.18

8

COVER, FRONT FOOTREST This part replaces 43585-38B10.

43585-38B11

Unavailable

9

SCREW

09127-05018

Unavailable

10

BOLT This part replaces 43641-38B00.

09106-06101

$3.10

11

WASHER, FRONT FOOTREST | MODEL H/J/L/M/N/P/R This part replaces 43546-38B00.

43546-38B01

$7.07

11

WASHER, FRONT FOOTREST | MODEL S

43546-38B01

$7.07

12

BOLT, RUBBER STOPPER BOLT | MODEL H/J/L/M/N/P/R

07130-05127

$3.42

12

BOLT | MODEL S This part replaces 07130-05123.

07130-0512B

$2.53

13

LOCK WASHER | MODEL H/J/L/M/N/P/R This part replaces 08321-01057.

08321-0105A

$1.83

13

LOCK WASHER | MODEL S This part replaces 08321-01053.

08321-0105A

$1.83

14

WASHER

08322-01057

$1.86

15

FOOTREST ASSY, PILLION RH

43600-38A01

Unavailable

16

FOOTREST ASSY,P | Includes Item(s) 17 - 19 This part replaces 43700-38A01.

43700-38A02

Unavailable

17

RUBBER,PILLION This part replaces 43612-38A00.

43612-38A10

$9.67

18

PLATE, RUBBER STOPPER

43632-38A00

$8.32

19

SCREW

09127-05017

$3.00

20

BOLT

09111-06050

$5.00

21

SHIM

08221-08164

$2.35

22

BALL

06111-07004

$1.22

23

SPRING

09440-05031

$1.45
