2003 Suzuki VS1400GLP Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 2003 Suzuki VS1400GLP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

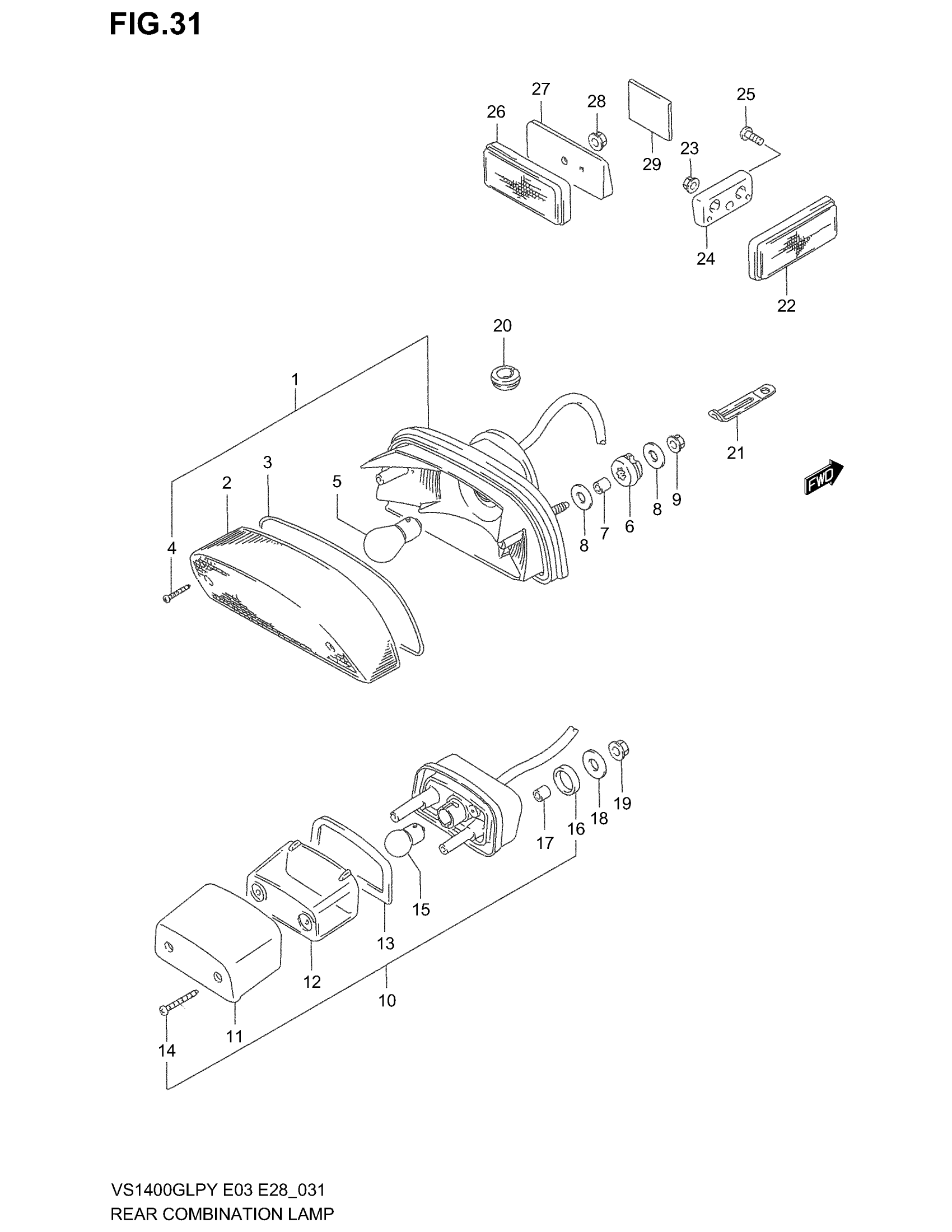

2003 Suzuki VS1400GLP Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 5

35710-38B30

1
Out of stock

2

LENS

35712-38B30

1
Out of stock

3

GASKET

35713-38B30

1
Out of stock

4

SCREW This part replaces 03511-04163.

03511-0416A

2
Out of stock

5

BULB (12V,27/8W)

09471-12129

1
Out of stock

6

CUSHION

09320-09018

2
Out of stock

7

SPACER (6.5X9X10.5) | MODEL T This part replaces 09180-06090.

09180-06264

2
Out of stock

7

SPACER (6.5X9X10.5) | MODEL V/W/X/Y/K1/K2/K3

09180-06264

2
Out of stock

8

WASHER (6.5X20X1.2)

09160-06077

4
Out of stock

9

NUT This part replaces 08316-20063.

08316-2006A

2
Out of stock

10

LAMP ASSY, LICENSE | Includes Item(s) 11 - 17

35910-38B30

1
Out of stock

11

COVER

35917-38B30

1
Out of stock

12

LENS

35912-38B30

1
Out of stock

13

GASKET

35913-38B30

1
Out of stock

14

SCREW

03211-04207

2
Out of stock

15

BULB (12V,7.5W)

09471-12130

1
Out of stock

16

CUSHION

35762-38B30

2
Out of stock

17

SPACER

35766-38B30

2
Out of stock

18

WASHER (6.5X20X1.2)

09160-06077

2
Out of stock

19

NUT This part replaces 08316-20063.

08316-2006A

2
Out of stock

20

GROMMET, LEAD WIRE

09308-12009

1
Out of stock

21

CLAMP, LEAD WIRE (L:60)

09404-06429

1
Out of stock

22

REFLEX REFLECTOR, REAR SIDE

35970-24D60

2
Out of stock

23

NUT This part replaces 08316-10053.

08316-1005A

2
Out of stock

24

SPACER

35977-38B12

2
Out of stock

25

SCREW This part replaces 03512-05123.

03511-0512A

4
Out of stock

26

REFLEX REFLECTOR, REAR

35970-24D60

1
Out of stock

27

SPACER

35977-38B30

1
Out of stock

28

NUT This part replaces 08310-00053.

08310-0005A

1
Out of stock

29

COVER, REAR RR NUT

68262-38A00

1
Out of stock
