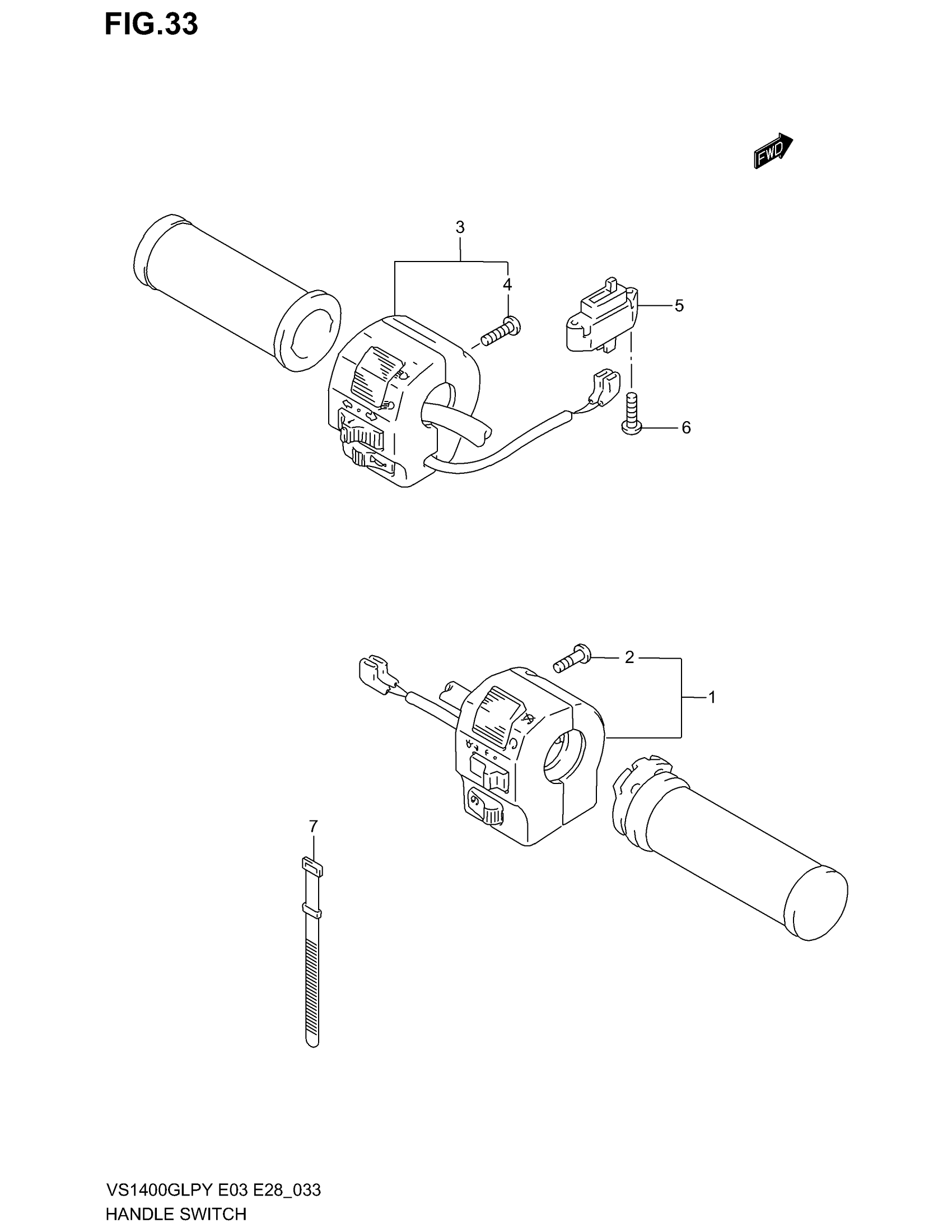

Suzuki VS1400GLP (2003) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | MODEL T This part replaces 37200-38BD0.

37200-38BD1

Unavailable

1

SWITCH ASSY, HANDLE RH | MODEL V/W/X

37200-38BD1

Unavailable

1

SWITCH ASSY, HANDLE RH | MODEL Y/K1/K2/K3; Includes Item(s) 2

37200-38BG0

Unavailable

2

SCREW

02112-05167

$1.97

3

SWITCH ASSY, HANDLE LH | MODEL T This part replaces 37400-38BD0.

37400-38BD1

Unavailable

3

SWITCH ASSY, HANDLE LH | MODEL V/W/X

37400-38BD1

Unavailable

3

SWITCH ASSY, HANDLE LH | MODEL Y/K1/K2/K3; Includes Item(s) 4

37400-38BG0

Unavailable

4

SCREW

02112-05167

$1.97

5

SWITCH ASSY, CLUTCH

37560-38A00

$16.94

6

SCREW

02142-03127

$1.95

7

CLAMP (L:141)

09407-14401

$4.10
