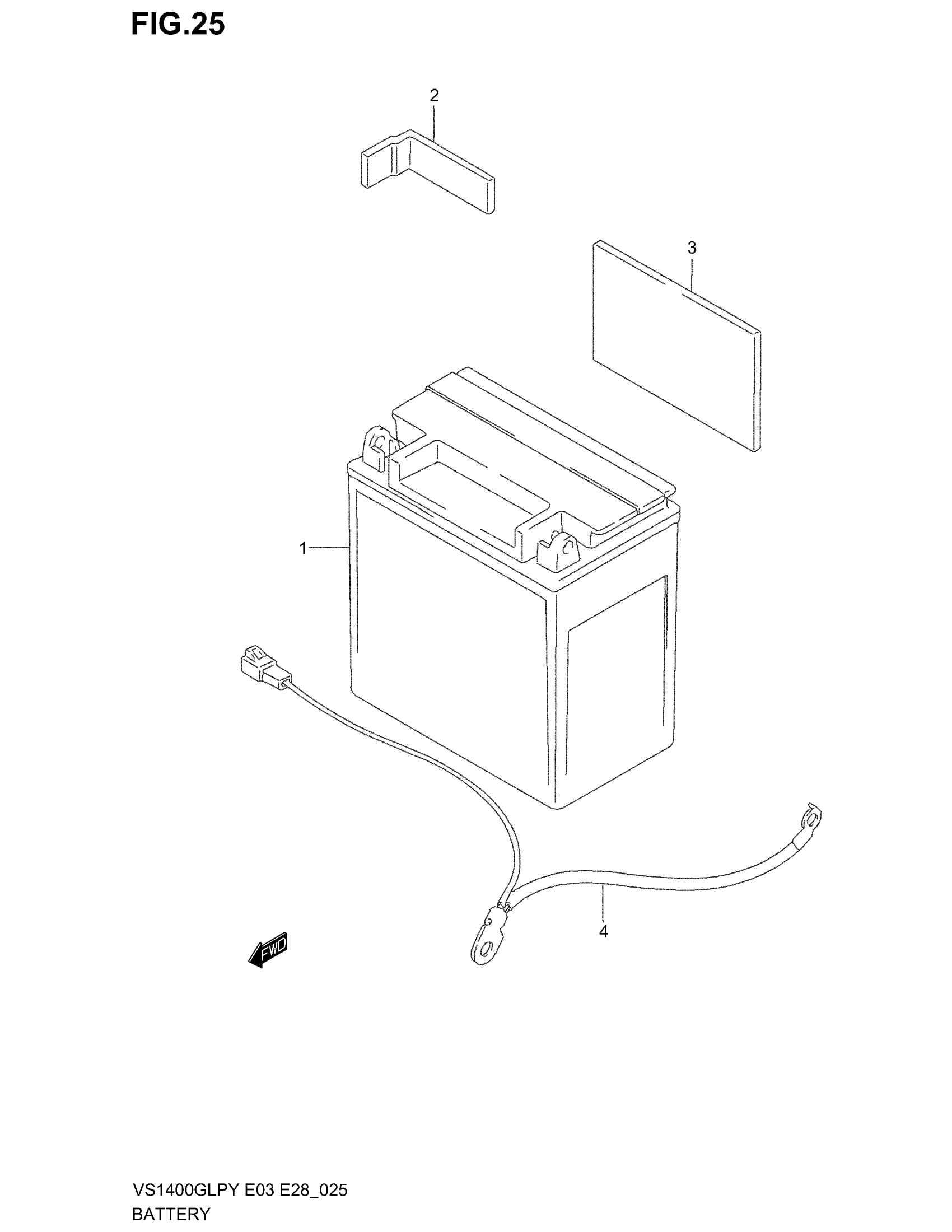

Suzuki VS1400GLP (2003) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (12V,14AH) | MODEL T/V,FTH16-BS-1 This part replaces 33610-38B60.

33610-38B50

$150.75

1

BATTERY ASSY (12V,14AH) | MODEL W/X/Y/K1/K2/K3 FTH16-BS-1

33610-38B50

$150.75

1

BATTERY ASSY (12V,14AH) | E28,FTH16-BS-1

33610-38B50

$150.75

2

PROTECTOR (80X80X2) | CUT AS REQUIRED PROFILE (80X20X2)

33652-07D00

$5.17

3

PROTECTOR (170X95X3.0) | CUT AS REQUIRED PROFILE (130X60X3)

33651-37000

$4.09

4

WIRE, BATTERY (-) LEAD

33860-38B00

$22.25
