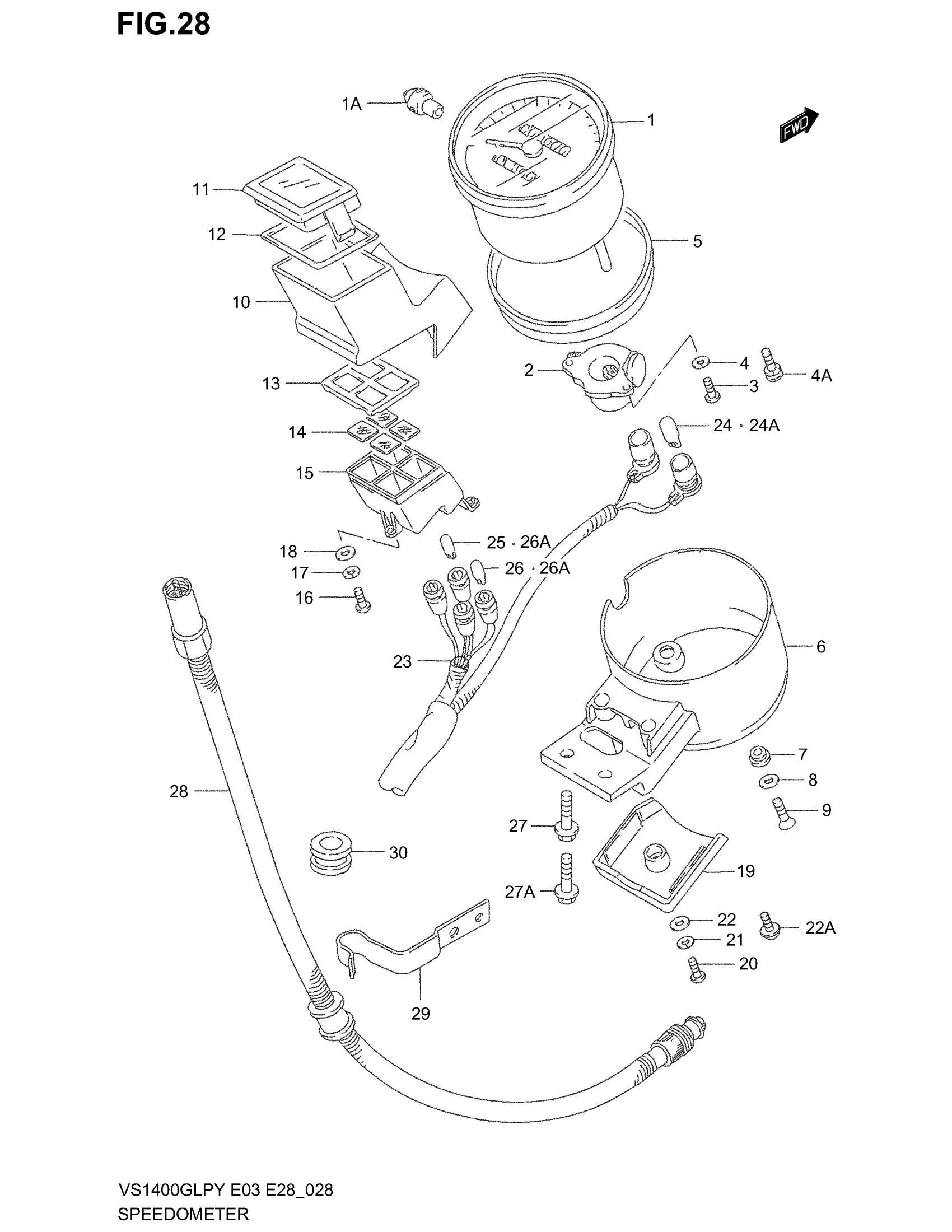

Suzuki VS1400GLP (2003) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | MODEL T

34110-38B40

Unavailable

1

SPEEDOMETER (MILE/KILO) | MODEL V/W/X/Y/K1/K2/K3

34110-38B90

Unavailable

1

SPEEDOMETER (KILO) | MODEL T E28

34110-38B10

Unavailable

1

SPEEDOMETER (KILO) | MODEL V/W/X/Y/K1/K2/K3 E28

34110-38B60

Unavailable

1A

KNOB, TRIP

34124-39A10

$17.96

2

BOX, METER GEAR | MODEL T

34131-38A00

Unavailable

2

BOX, METER GEAR | MODEL V/W/X/Y/K1/K2/K3

34131-19B00

Unavailable

3

SCREW | MODEL T

02112-04107

$1.55

4

LOCK WASHER | MODEL T This part replaces 08321-01043.

08321-0104A

$1.86

4A

SCREW | MODEL V/W/X/Y/K1/K2/K3 This part replaces 02112-34103.

02112-3410A

$2.04

5

CUSHION, METER

34288-39A00

$11.50

6

COVER, METER

34193-38B00

$193.15

7

CUSHION This part replaces 34189-05A30.

34189-05A31

$6.00

8

WASHER

34181-38A00

$3.72

9

SCREW

02112-04087

$1.10

10

BOX, PILOT LAMP

36381-39A20

$120.47

11

LENS, PILOT BOX | MODEL T

36393-38A00

Unavailable

11

LENS, PILOT BOX | MODEL V/W/X/Y/K1/K2/K3

36393-38B60

$18.22

12

CUSHION

36395-38A00

$8.32

13

PLATE, PILOT LENS

36386-38A00

Unavailable

14

LENS SET, PILOT LAMP | MODEL T This part replaces 36300-38820.

36300-38830

Unavailable

14

LENS SET, PILOT LAMP | MODEL V

36300-38860

Unavailable

14

LENS SET, PILOT LAMP | MODEL W/X/Y/K1/K2/K3

36300-38870

$15.80

14

LENS SET, PILOT LAMP | MODEL T E28

36300-38830

Unavailable

14

LENS SET, PILOT LAMP | MODEL V/W/X/Y/K1/K2/K3 E28

36300-38870

$15.80

15

CASE, PILOT LAMP

36382-38B30

$24.57

16

SCREW This part replaces 02112-03083.

02112-0308A

$1.81

17

LOCK WASHER This part replaces 08321-21033.

08321-2103B

$1.78

18

WASHER This part replaces 08322-01033.

08322-0103B

$1.70

19

COVER, PILOT BOX

34152-38B30

Unavailable

20

SCREW | MODEL T

02112-04087

$1.10

21

LOCK WASHER | MODEL T This part replaces 08321-01043.

08321-0104A

$1.86

22

WASHER | MODEL T

08322-01047

$1.88

22A

SCREW | MODEL V/W/X/Y/K1/K2/K3 This part replaces 02112-74083.

02112-7408B

$2.37

23

SOCKET, METER | MODEL T

34173-38B30

Unavailable

23

SOCKET, METER | MODEL V/W/X/Y/K1/K2/K3

34173-38B60

Unavailable

24

BULB (12V,3.4W) | MODEL T

09471-12028

$1.98

24A

BULB (12V,3.4W) | MODEL V/W/X/Y/K1/K2/K3

09471-12028

$1.98

25

BULB (12V,3W) | MODEL T

09471-12103

$3.46

26

.BULB (12V1.7W) | MODEL T

09471-12108

$3.08

26A

.BULB (12V1.7W) | MODEL V/W/X/Y/K1/K2/K3

09471-12108

$3.08

27

BOLT | MODEL T This part replaces 01550-06163.

01550-0616A

$1.97

27A

SCREW | MODEL V/W/X/Y/K1/K2/K3 This part replaces 02162-06163.

02162-0616B

$2.06

28

CABLE ASSY,SPEE | MODEL T/V/W/X This part replaces 34910-38B10.

34910-38B12

$103.40

28

CABLE ASSY,SPEE | MODEL Y/K1/K2/K3 This part replaces 34910-38B11.

34910-38B12

$103.40

29

GUIDE, METER CABLE

34938-38A02

$12.02

30

GROMMET This part replaces 09308-13005.

09308-13006

$4.15
