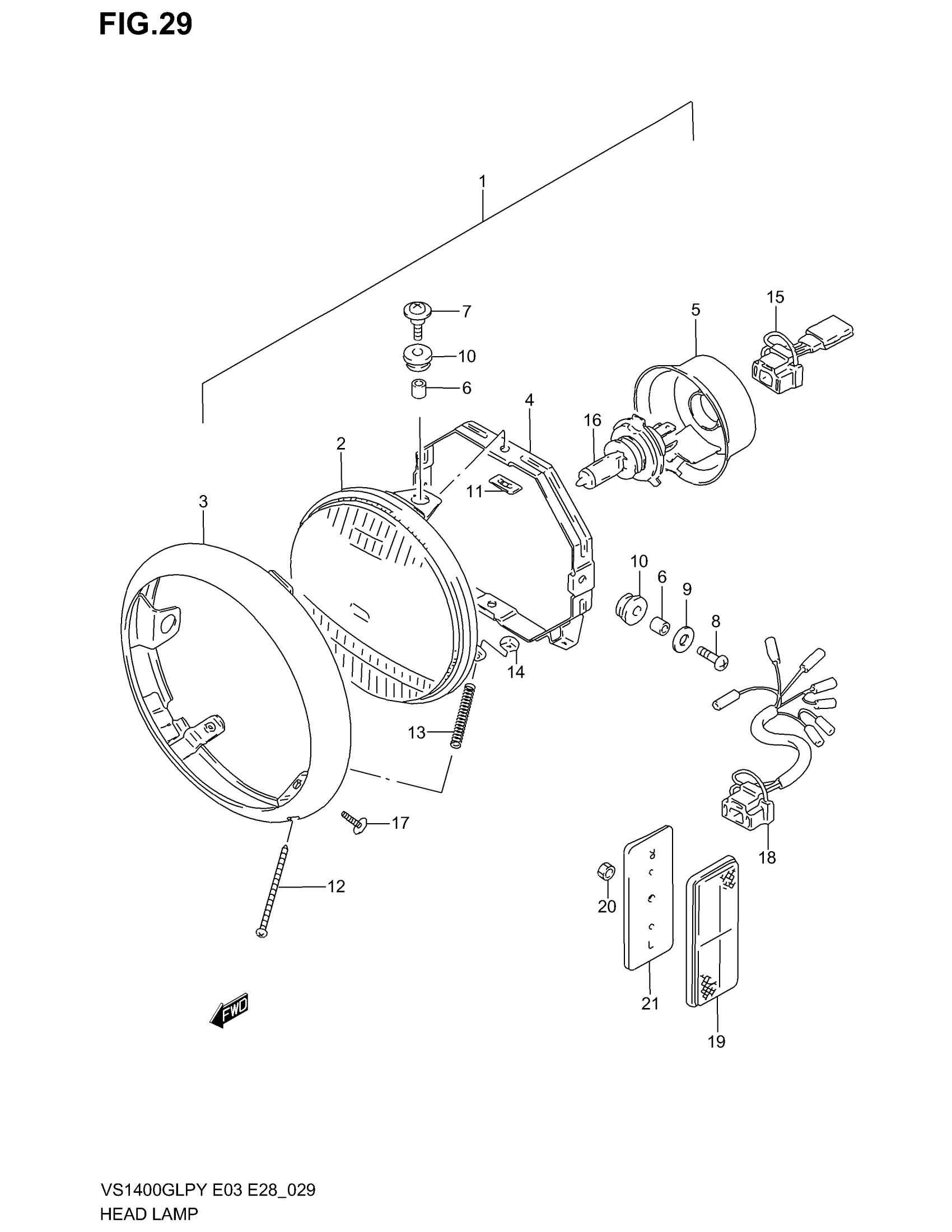

Suzuki VS1400GLP (2003) HEADLAMP (MODEL T/V/W/X/Y) Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 15 This part replaces 35100-38A30-999.

35100-38A62-999

$308.58

2

UNIT, LAMP

35121-38A30

Unavailable

3

RIM

35111-38A00

$52.15

4

RING, MOUNTING

35130-38A00

$19.68

5

COVER, SOCKET

35173-38A00

$19.03

6

SPACER

35133-45230

$3.72

7

.SCREW MOUNTING

35136-38A00

$4.53

8

SCREW, SIDE

02112-05167

$1.97

9

WASHER (5.5X18X1) This part replaces 09160-05003.

09160-05045

$1.95

10

CUSHION

35139-45230

$2.25

11

NUT

35155-48510

$2.58

12

SCREW, ADJUST

35151-38A00

$4.10

13

SPRING

35154-31300

$3.49

14

NUT

35135-45600

$4.12

15

SOCKET

36853-38A00

$15.70

16

BULB (12V,60/55W)

09471-12060

$22.69

17

SCREW

02122-05127

$1.68

18

WIRE, HEADLAMP LEAD

36853-38B10

Unavailable

19

REFLEX REFLECTOR, FRONT SIDE

35950-43431

$20.13

20

NUT This part replaces 08310-00053.

08310-0005A

$1.83

21

SPACER

35954-38B00

Unavailable
