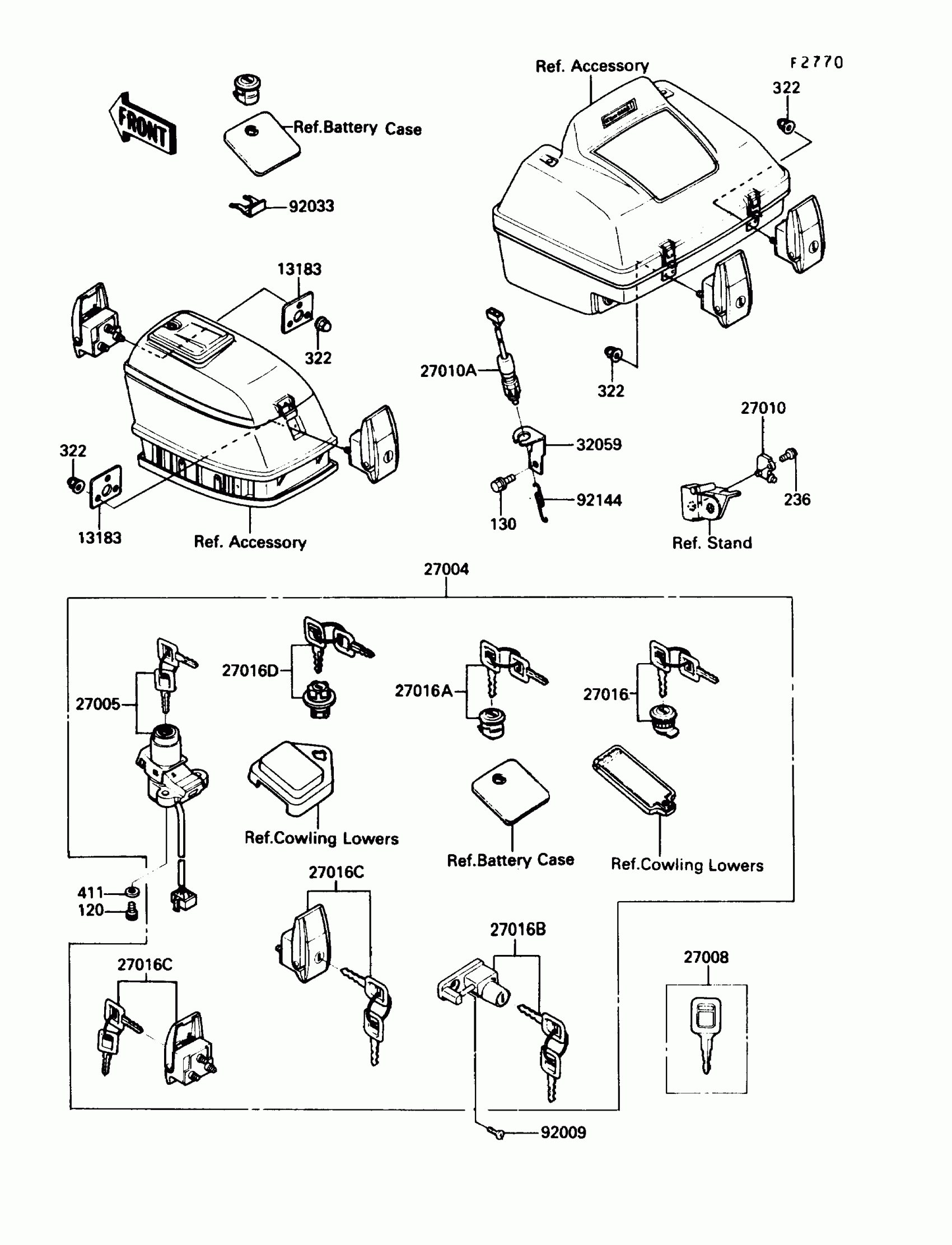

Kawasaki Voyager XII Ignition Switch Diagram

Description

Price

120

BOLT-SOCKET,6X16

120T0616

Unavailable

130

BOLT-FLANGED

130D0610

Unavailable

236

SCREW-PAN-WSP-CROS

236B0416

Unavailable

322

NUT-CAP,4MM

322C0400

Unavailable

411

WASHER-PLAIN,6MM

411E0600

$1.19

13183

PLATE,BAG

13169-1641

$6.64

27004

SWITCH-ASSY

27004-5318

$1,021.47

27005

SWITCH-ASSY-IGNITION

27005-5063

$221.25

27008

KEY-LOCK,BLANK

27008-1103

$18.83

27010

SWITCH,BRAKE/SIDE STAND

27010-1185

Unavailable

27010A

SWITCH,REAR BRAKE

27010-1200

$38.75

27016

LOCK-ASSY

27016-5105

$106.07

27016A

LOCK-ASSY,TANK CAP COVER

27016-5106

$113.81

27016B

LOCK-ASSY,HELMET

27016-5107

$83.33

27016C

LOCK-ASSY,BAG

27016-5108

$196.68

27016D

LOCK-ASSY,FAIRING POCKET

27016-5128

$113.81

32059

BRACKET-SWITCH,REAR BRAKE

32059-1068

$8.24

92009

SCREW,5X12

92009-1401

$4.08

92033

RING-SNAP,COWLING POCKET

92033-1095

$5.61

92144

SPRING,REAR BRAKE

92144-1015

$5.64
