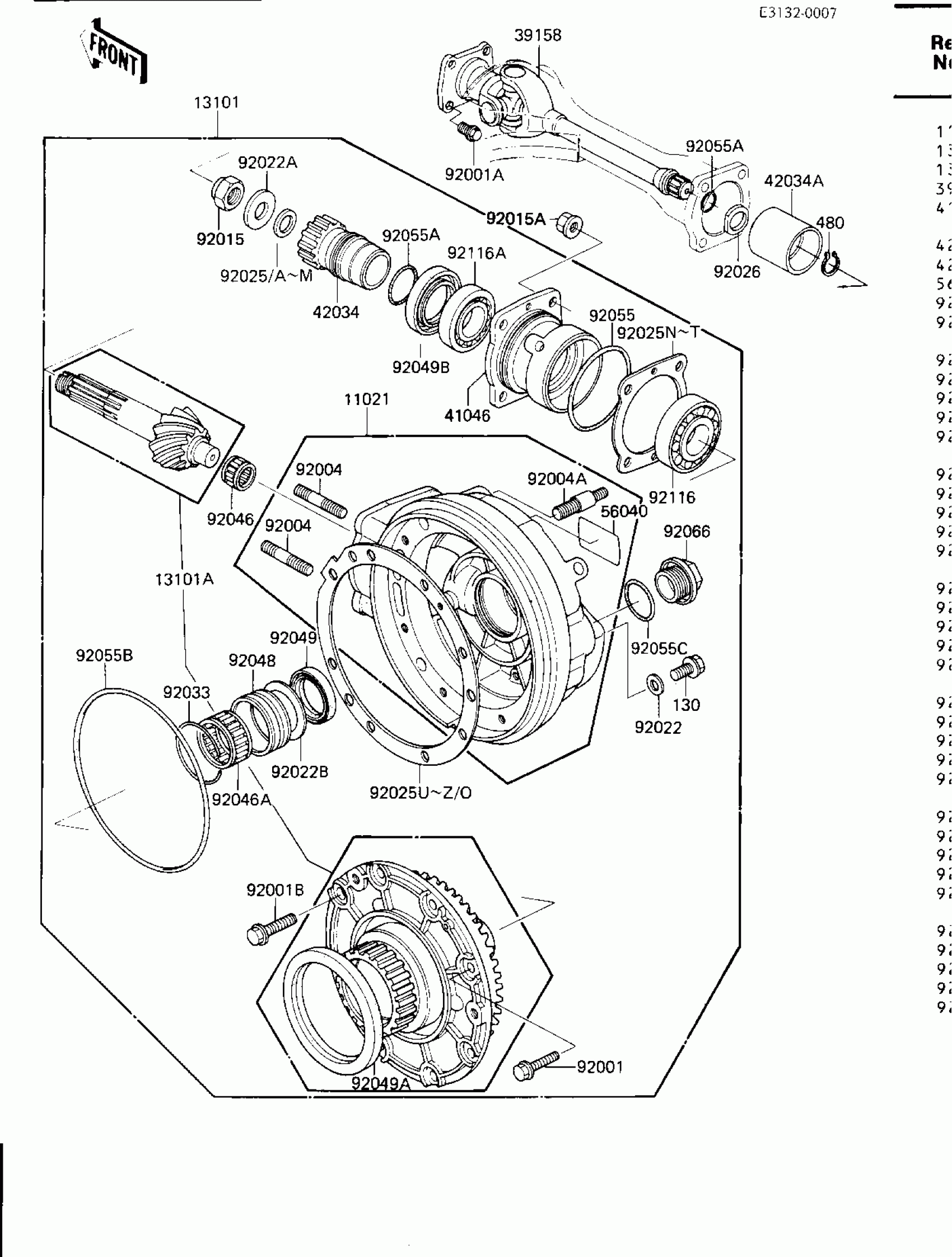

Kawasaki Voyager DRIVE SHAFT/FINAL GEARS Diagram

#

Description
Price

11021

CASE-ASSY,FINAL GEAR,NO.2 GOLD

11021-1019-F6

Unavailable

13101

GEAR-ASSY,FINAL NO.2 GOLD

13101-1033-F6

Unavailable

13101A

GEAR-ASSY,BEVEL,RR

13101-5041

Unavailable

39158

SHAFT-ASSY-DRIVE

39158-1008

$360.51

41046

HOUSING-BEARING,FINAL

41046-1020

$157.51

42034

COUPLING,PROPELLER SHAFT,INNER

42034-1023

$132.47

42034A

COUPLING,PROPELLER SHAFT,OUTER

42034-1037

$239.56

56040

LABEL-WARNING,OIL

56040-1047

$5.32

92001

BOLT,FLANGED,8X28

92001-1095

$5.71

92001A

BOLT,FLANGED,12X15

92001-1139

Unavailable

92001B

BOLT,10X23

92001-1778

$5.39

92004

STUD,10X31.5

92004-1021

$5.10

92004A

STUD,RR SHOCKABSORBER

92004-1047

$15.51

92015

NUT,16MM

92015-1059

Unavailable

92015A

NUT,FLANGED,10MM

92015-1415

$3.72

92022

WASHER,8.2X16X1

92022-1086

$2.85

92022A

WASHER,16X32X3.2

92022-1105

$11.47

92022B

WASHER,39X49.5X1

92022-1294

$7.15

92025

SHIM,T=1.30

92025-1214

$9.31

92025A

SHIM,T=1.32

92025-1215

$10.17

92025B

SHIM,T=1.34

92025-1216

$10.17

92025C

SHIM,T=1.36

92025-1217

$10.17

92025D

SHIM,T=1.38

92025-1218

$10.17

92025E

SHIM,T=0.10

92025-1219

$6.54

92025F

SHIM,T=0.20

92025-1220

$7.42

92025G

SHIM,T=0.30

92025-1221

$6.54

92025H

SHIM,T=0.50

92025-1222

$7.42

92025I

SHIM,T=0.60

92025-1223

$9.08

92025J

SHIM,T=0.70

92025-1224

$9.66

92025K

SHIM,T=0.80

92025-1225

$9.08

92025L

SHIM,T=0.90

92025-1226

$9.08

92025M

SHIM,T=1.00

92025-1227

$9.66

92025N

SHIM,T=0.10

92025-1388

$3.15

92025O

SHIM,T=0.15

92025-1389

$3.15

92025P

SHIM,T=0.20

92025-1390

$3.15

92025Q

SHIM,T=0.30

92025-1391

$3.15

92025R

SHIM,T=0.60

92025-1392

$3.15

92025S

SHIM,T=0.90

92025-1393

$4.59

92025T

SHIM,T=1.20

92025-1394

$5.00

92025U

SHIM,T=0.10

92025-1625

Unavailable

92025V

SHIM,T=0.15

92025-1626

$10.03

92025W

SHIM,T=0.20

92025-1627

$9.76

92025X

SHIM,T=0.30

92025-1628

$10.03

92025Y

SHIM,T=0.60

92025-1629

$21.97

92025Z

SHIM,T=0.90

92025-1630

$20.68

920250

SHIM,T=1.20

92025-1631

$20.68

92026

SPACER,26.2X36X2

92026-1085

$8.56

92033

RING-SNAP,52MM

92033-1074

$4.24

92046

BEARING-NEEDLE,K18X25X17

92046-1056

$20.64

92046A

BEARING-NEEDLE,KTV384620E01 C3

92046-1057

$62.54

92048

RACE,ORT465021E01

92048-1019

$45.48

92049

SEAL-OIL,S-35477HS

92049-1025

$12.34

92049A

SEAL-OIL,S-901159HS

92049-1026

$41.49

92049B

SEAL-OIL,SC32558

92049-1082

Unavailable

92055

RING-O,67MM

92055-1032

Unavailable

92055A

RING-O,ID=32.7

92055-1037

Unavailable

92055B

RING-O,154X3

92055-1165

$9.01

92055C

RING-O,35.8MM

92055-1281

$5.84

92066

PLUG,36MM,NO.2 GOLD

92066-1006-F6

$14.71

92116

BEARING-ROLLER,4T30305C

92116-1002

$40.53

92116A

BEARING-ROLLER,4T30205

92116-1003

$33.21

130

BOLT-FLANGED,8X12

130B0812

Unavailable

480

CIRCLIP-TYPE-C,26MM

480J2600

$10.08
