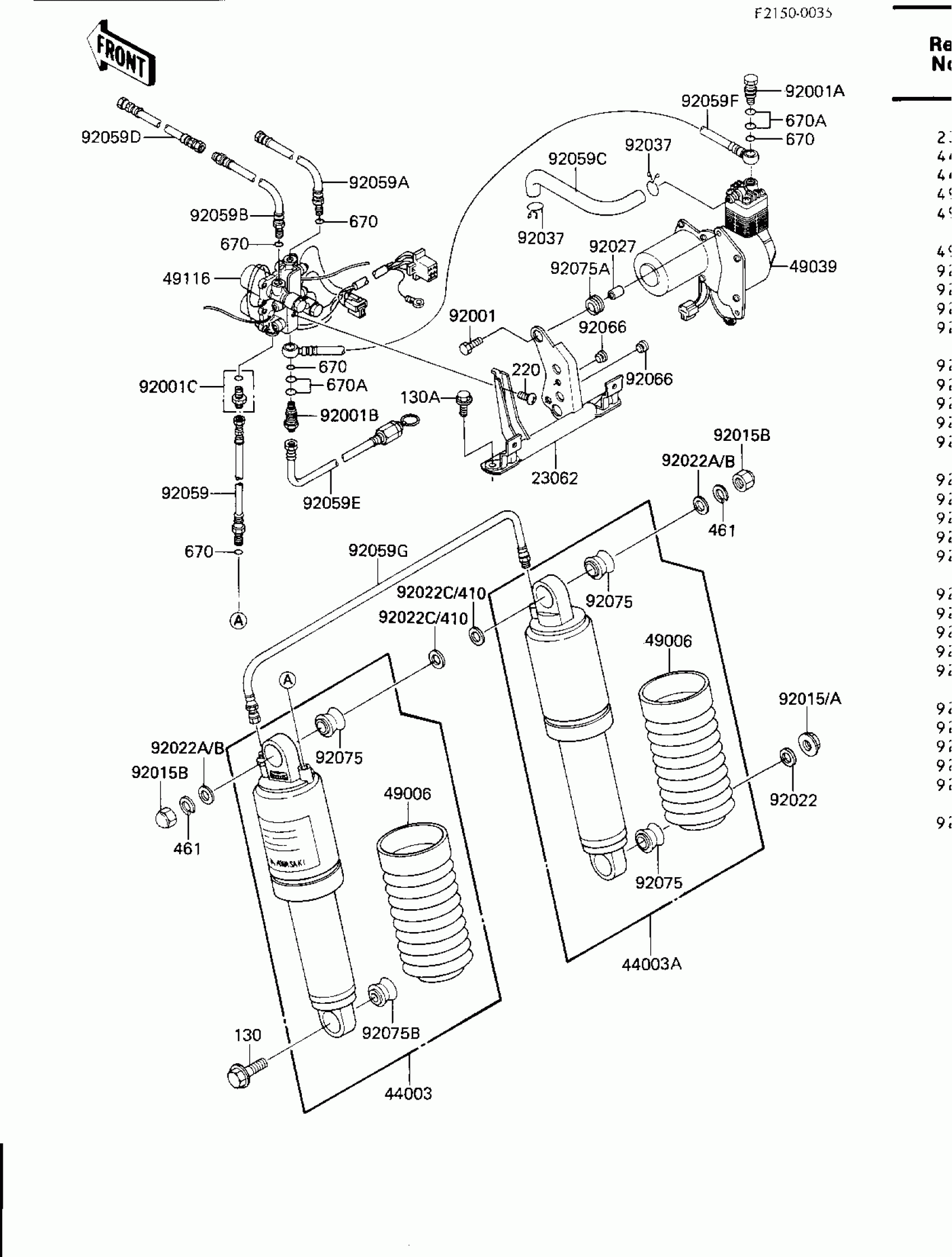

Kawasaki Voyager AIR PUMP/SHOCK ABSORBERS Diagram

#

Description
Price

23062

BRACKET-COMP,AIR PUMP

23062-1055

$33.78

44003

DAMPER-ASSY,LH

44003-1473

$718.57

44003A

DAMPER-ASSY,RH

44003-1474

$718.57

49006

BOOT,SHOCKABSORBER

49006-1158

$47.37

49039

PUMP-AIR

49039-1051

$682.18

49116

VALVE-ASSY,AIR PUMP

49116-1053

$624.02

92001

BOLT,6X20

92001-1826

$3.53

92001A

BOLT,AIR PUMP

92001-1876

$13.05

92001B

BOLT,VALVE

92001-1877

$17.46

92001C

BOLT,NIPPLE

92001-1878

$23.12

92015A

NUT,FLANGED,10MM

92015-1415

$3.72

92015B

NUT,CAP,12MM

92020-014

$7.84

92022

WASHER,10.5X30X2.3

92022-1193

$7.42

92022B

WASHER,12.4X28X2.3,B

92022-1303

Unavailable

92022C

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

92027

COLLAR,6.8X10X8.5

92027-129

$3.97

92037

CLAMP

92037-1468

$7.61

92059

TUBE,AIR,RR,L=579.8

92059-1286

$78.66

92059A

TUBE,AIR,FR,L=1050

92059-1287

Unavailable

92059B

TUBE,AIR GAUGE,L=1500

92059-1288

$73.73

92059C

TUBE

92059-1373

$24.75

92059D

TUBE

92059-1374

$47.32

92059E

TUBE

92059-1384

$229.05

92059F

TUBE,L=200

92059-1385

$69.05

92059G

TUBE,SHOCKABSORBER

92059-1386

$93.34

92066

PLUG,7X2

92074-028

$3.81

92075

DAMPER,SHOCKABSORBER

92075-1141

$14.14

92075A

DAMPER

92075-1409

$5.61

92075B

DAMPER,SHOCKABSORBER

92075-1586

$14.14

130

BOLT-FLANGED,10X35

130B1035

Unavailable

130A

BOLT-FLANGED,6X60

130J0660

Unavailable

220

SCREW-PAN-CROS,6X10,BLACK

220C0610

$1.54

461

WASHER-SPRING,12MM

461F1200

Unavailable

670

O RING,6MM

670B1506

$1.14

670A

O RING,8MM

670B1508

$1.17
