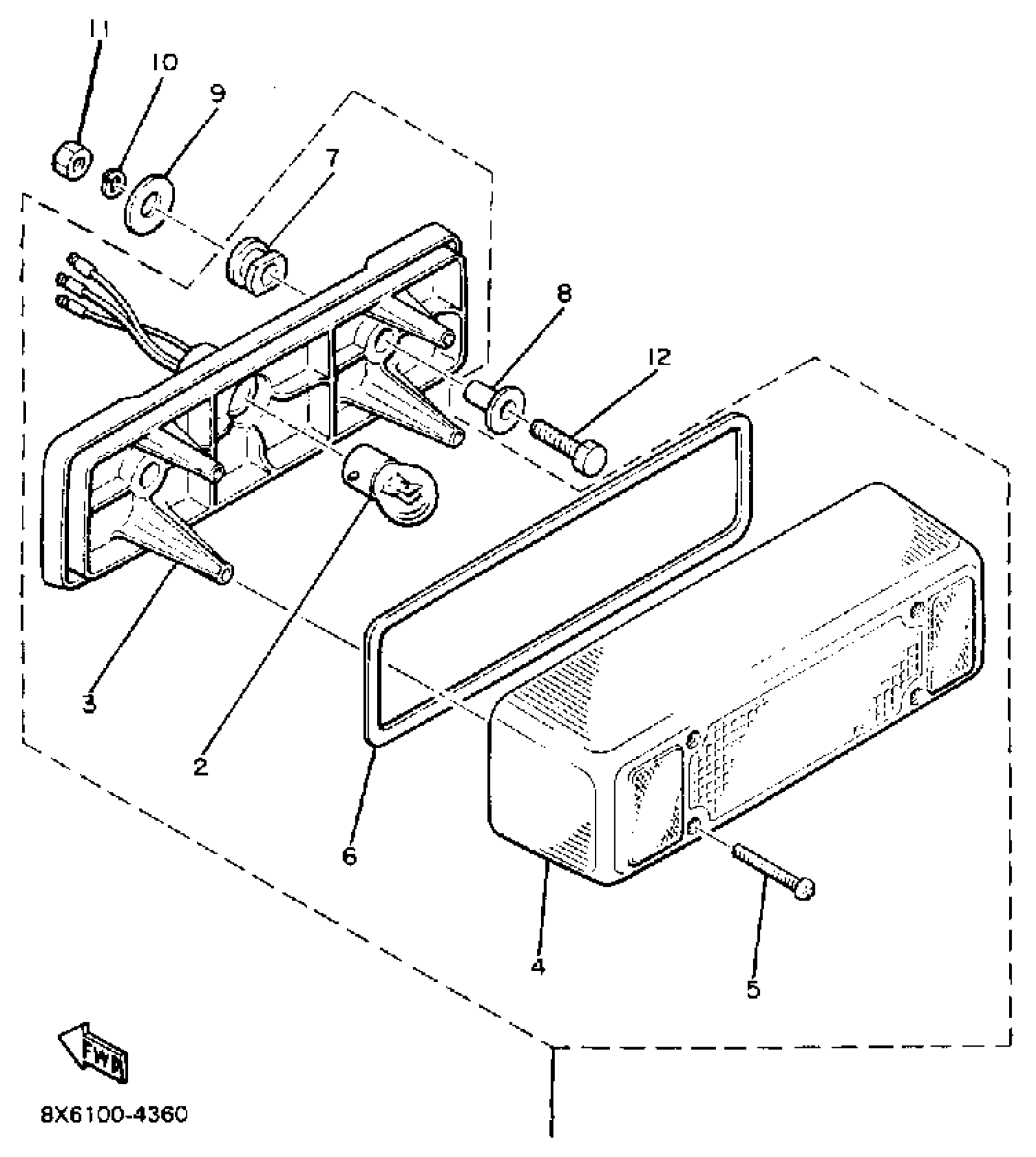

Yamaha VMX540H (V-MAX) 1984 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

8K4-84710-01-00

$70.89

2

BULB(12V32/3CP)1157

137-84714-61-XX

Unavailable

3

BASE, TAILLIGHT

8K4-84711-01-00

$24.32

4

LENS, TAILLIGHT

8K4-84721-01-00

$35.56

5

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$5.29

6

SEAL

3TJ-14457-00-00

Unavailable

7

GROMMET

8K4-84718-00-00

$2.53

8

COLLAR

90387-06166-00

$9.51

9

WASHER, PLATE

90201-06747-00

$5.75

10

WASHER, SPRING

92995-06100-00

$2.95

11

NUT, HEXAGON

95380-06600-00

$4.11

12

BOLT(3RV)

97014-06035-00

$1.54
