1984 Yamaha V-MAX (VMX540H) Generator Diagram

← All diagrams

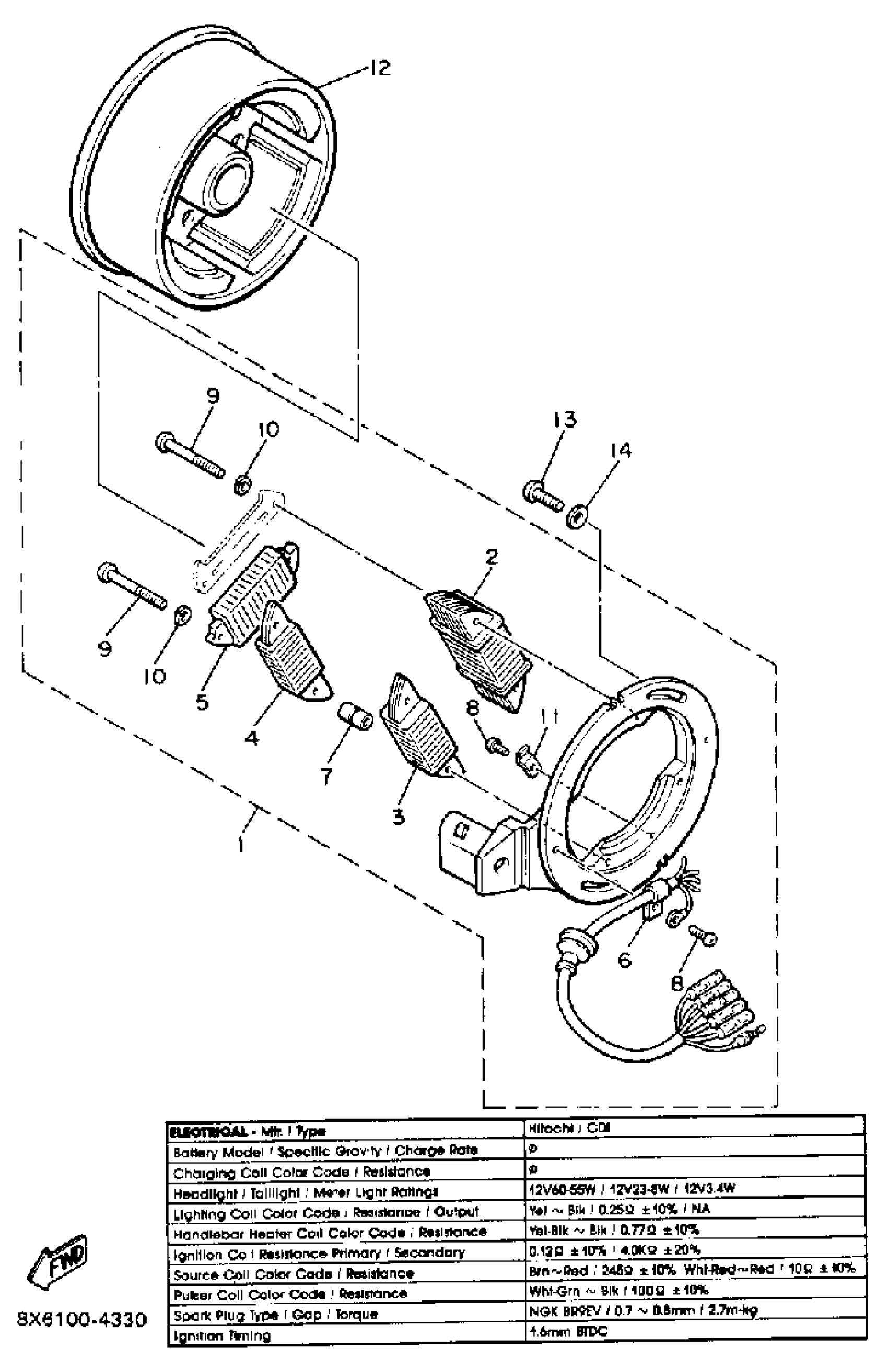

Find the part on the Generator diagram for your 1984 Yamaha V-MAX (VMX540H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha V-MAX (VMX540H) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TOOL

UNA-VAILA-BL-EI

1
Out of stock

2

. COIL, LIGHTING 1

8K4-85513-10-00

1
Out of stock

3

. COIL, CHARGE

8X6-85520-10-00

1
Out of stock

4

. COIL ASSEMBLY

8X6-85521-10-00

1
Out of stock

5

. COIL, CHARGE

8X6-85541-10-00

1
Out of stock

6

CLAMP

(8R9-81328-10-00)

1
Out of stock

7

SPACER

(8X6-81318-10-00)

1
Out of stock

8

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

9

SCREW, PAN

98507-05040-00

1

$6.68

In stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

. CLAMP

482-81328-10-00

1
Out of stock

12

ROTOR ASY

83H-85550-10-00

1
Out of stock

13

SCREW, BIND (705)

98980-06016-00

1
Out of stock

14

WASHER, PLATE 6261117600

90201-06043-00

1
Out of stock
