2016 Yamaha V-MAX (VMX17GL) Steering Handle Cable Diagram

← All diagrams

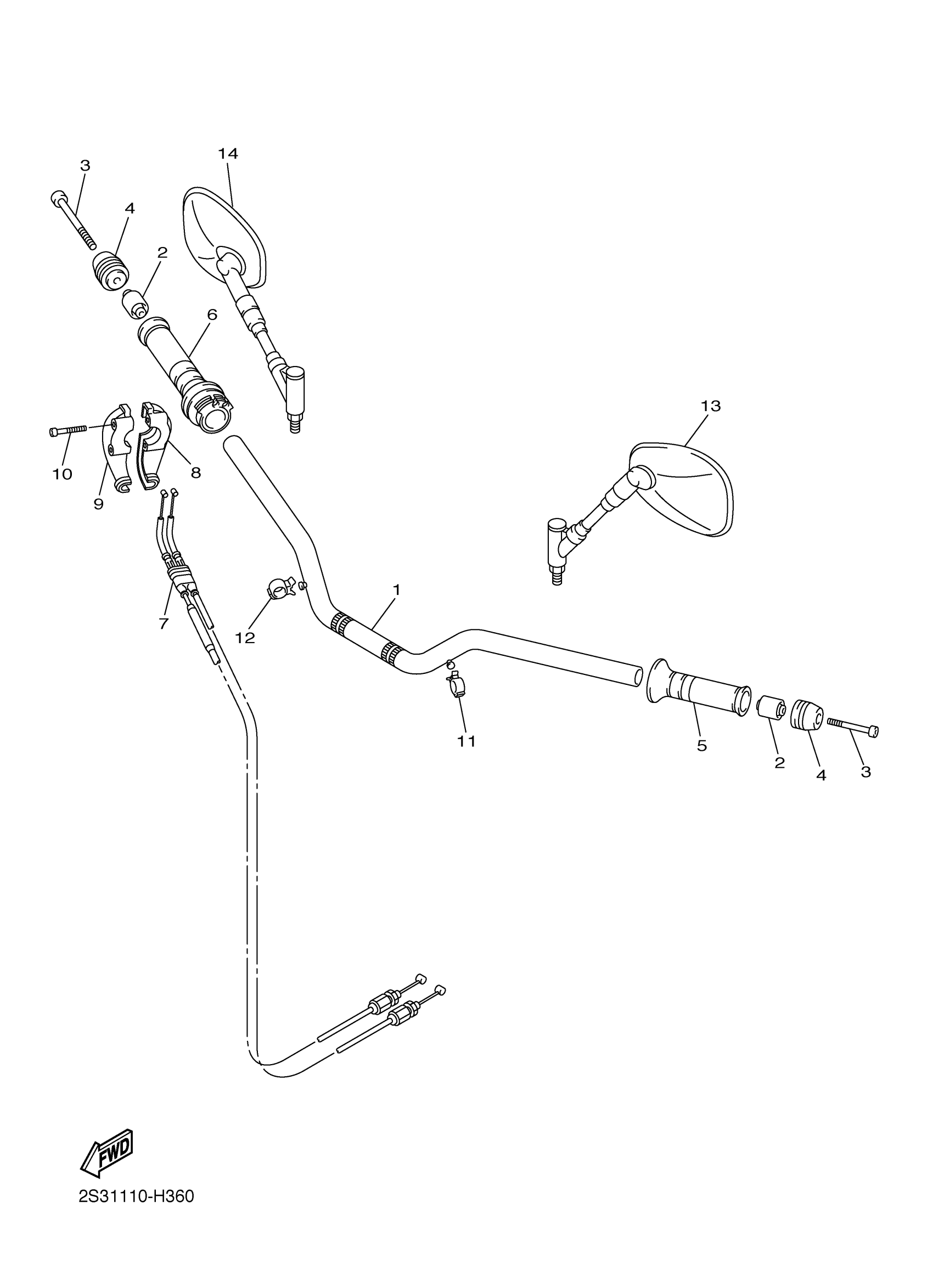

Find the part on the Steering Handle Cable diagram for your 2016 Yamaha V-MAX (VMX17GL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha V-MAX (VMX17GL) Steering Handle Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

2S3-26111-00-00

—
Out of stock

2

HOLDER, DAMPER

4JH-23434-02-00

1
Out of stock

3

BOLT, SOCKET

91314-06040-00

1
Out of stock

4

END, GRIP

2S3-26246-00-00

—
Out of stock

5

GRIP

4YR-26241-03-00

1

$9.28

In stock

6

GRIP ASSY

4YR-26240-03-00

1

$25.29

In stock

7

THROTTLE CABLE ASSY

2S3-26302-01-00

—

$46.02

In stock

8

CAP, GRIP UPPER

5VY-26281-00-00

1

$34.11

In stock

9

CAP, GRIP UNDER

3XW-26282-01-00

1

$26.47

In stock

10

BOLT, HEXAGON SOCKET HEAD

90110-05018-00

1

$6.28

In stock

11

CLAMP(4HM)

90464-15192-00

1

$6.17

In stock

12

CLAMP(4GY)

90464-10190-00

1

$7.26

In stock

13

REAR VIEW MIRROR ASSY (LEFT)

2S3-26280-00-00

—
Out of stock

14

REAR VIEW MIRROR ASSY (RIGHT)

2S3-26290-00-00

—
Out of stock
