2016 Yamaha V-Max (VMX17GL) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 2016 Yamaha V-Max (VMX17GL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

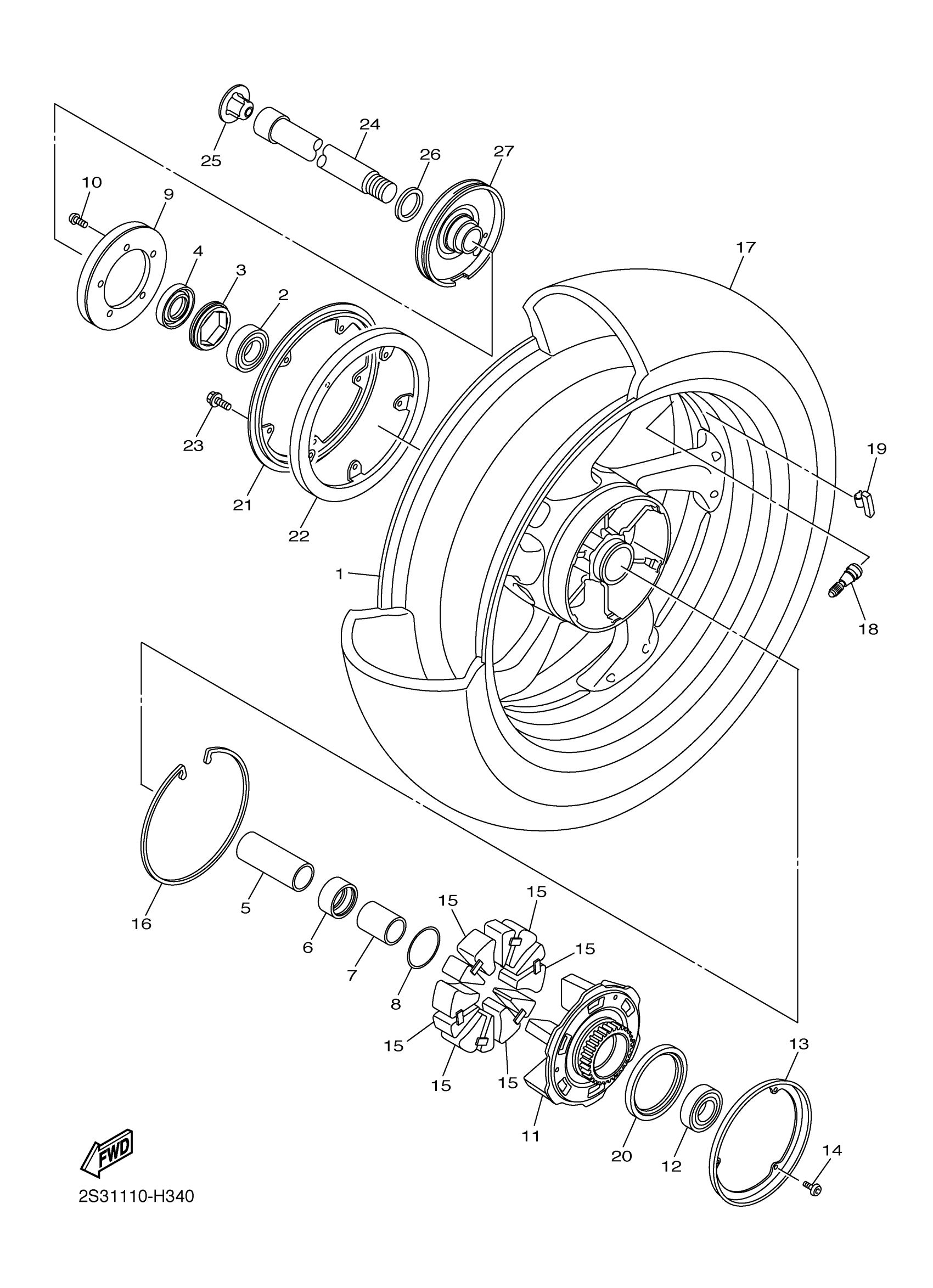

2016 Yamaha V-Max (VMX17GL) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAST WHEEL, REAR

2S3-25338-00-98

—
Out of stock

2

BEARING

93306-07809-00

1
Out of stock

3

NUT, ADJUSTING

3P6-2538E-00-00

—
Out of stock

4

OIL SEAL

93106-40013-00

1
Out of stock

5

SPACER, BEARING

2S3-25317-00-00

—
Out of stock

6

BEARING

93317-43580-00

1
Out of stock

7

COLLAR, WHEEL

2S3-25377-00-00

1
Out of stock

8

O-RING(52H)

93210-47675-00

1
Out of stock

9

ROTOR, SENSOR

2S3-2517G-00-00

1
Out of stock

10

SCREW

90149-05010-00

1
Out of stock

11

CLUTCH, HUB

2S3-25366-00-00

—
Out of stock

12

BEARING

93306-07808-00

—
Out of stock

13

COVER, PLATE

2S3-25327-00-00

—
Out of stock

14

BOLT, BUTTON HEAD

92014-05008-00

1
Out of stock

15

DAMPER

2S3-25364-00-00

—
Out of stock

16

STOPPER, HUB

2S3-25318-00-00

—
Out of stock

17

TIRE(200/50 R18 M/C 76V)

94120-18008-00

1
Out of stock

18

VALVE, RIM(2GH)

93900-00030-00

—
Out of stock

19

BALANCER, WHEEL

5MT-25398-00-00

—
Out of stock

19

BALANCER, WHEEL

5MT-25398-10-00

—
Out of stock

19

BALANCER, WHEEL

5MT-25398-20-00

—
Out of stock

20

SEAL, HUB DUST

2S3-25319-00-00

—
Out of stock

21

RING, WHEEL 2

2S3-2515A-00-00

—
Out of stock

22

RING, WHEEL 1

2S3-2514A-00-00

—
Out of stock

23

BOLT, FLANGE

95817-06016-00

—
Out of stock

24

AXLE, WHEEL

2S3-25381-00-00

—
Out of stock

25

CAP

2S3-25335-00-00

—
Out of stock

26

WASHER, PLATE

90201-28016-00

—
Out of stock

27

HOUSING, SENSOR REAR

2S3-2537A-00-00

—
Out of stock
