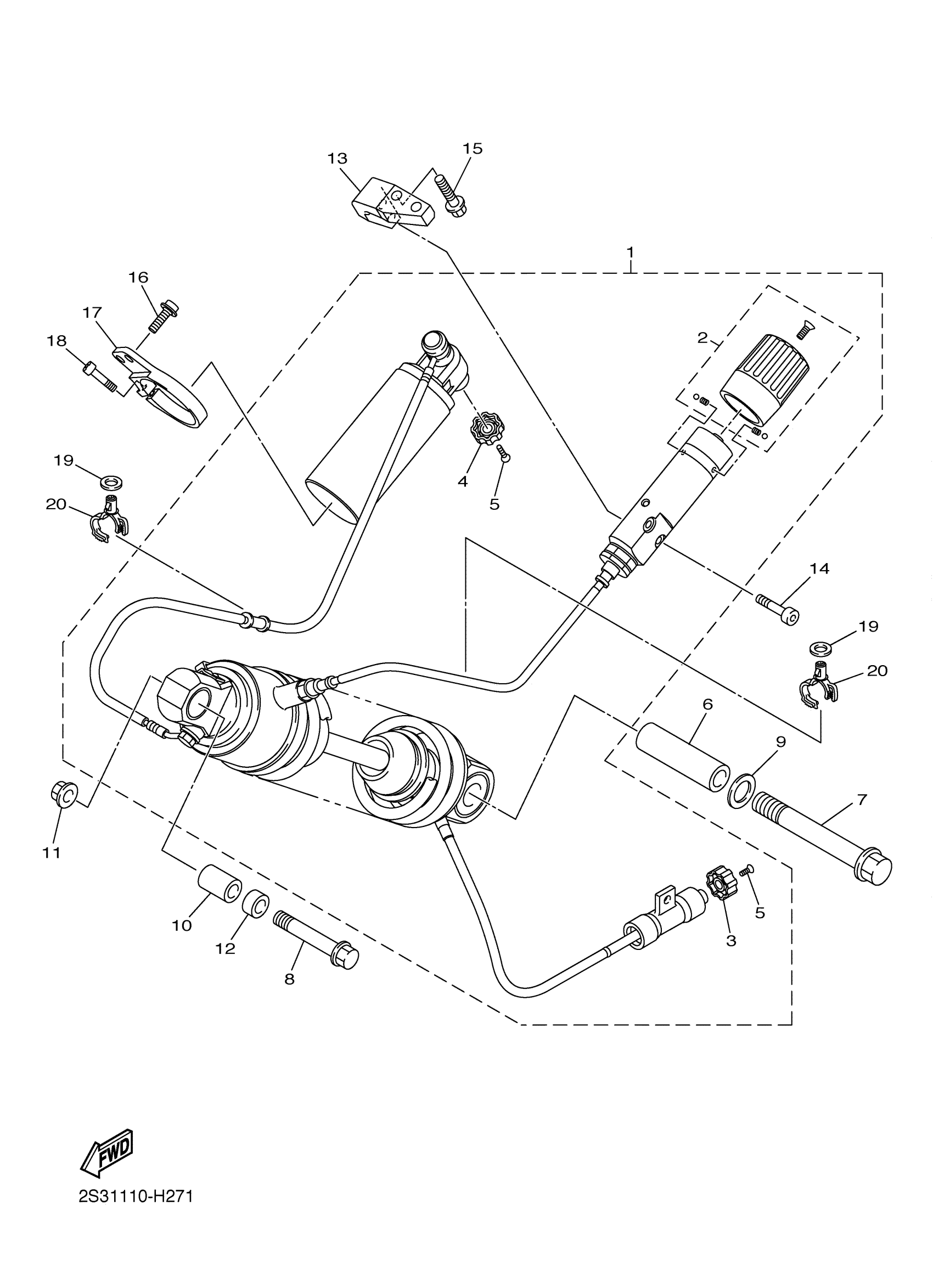

Yamaha VMX17GL (V-MAX) 2CEG 2016 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

2S3-22210-00-00

Unavailable

2

REPAIR KIT

2S3-28130-09-00

Unavailable

3

KNOB (TEN)

5JW-2319W-00-00

$9.17

4

. KNOB (COMP)

5EA-22464-00-00

$3.52

5

SCREW, OVAL HEAD

98680-03008-00

$0.29

6

COLLAR

90387-14013-00

$15.45

7

BOLT, FLANGE

90105-14006-00

Unavailable

8

BOLT, WASHER BASED(1KT)

90105-10402-00

$7.24

9

WASHER, PLATE

90201-16022-00

$7.77

10

COLLAR

90387-1012A-00

$16.59

11

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.11

12

BUSH, SOLID

90380-10005-00

Unavailable

13

BRACKET

2S3-27332-00-00

$53.71

14

BOLT

91314-05025-00

$0.74

15

BOLT, FLANGE

90105-06148-00

$5.80

16

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

Unavailable

17

BRKT

2S3-27333-00-00

Unavailable

18

BOLT,SOCKET HEAD

91314-05020-00

Unavailable

19

WASHER, PLATE

90201-06105-00

Unavailable

20

CLAMP

90464-18002-00

Unavailable
