2009 Suzuki VLR1800 Radiator Hose Diagram

← All diagrams

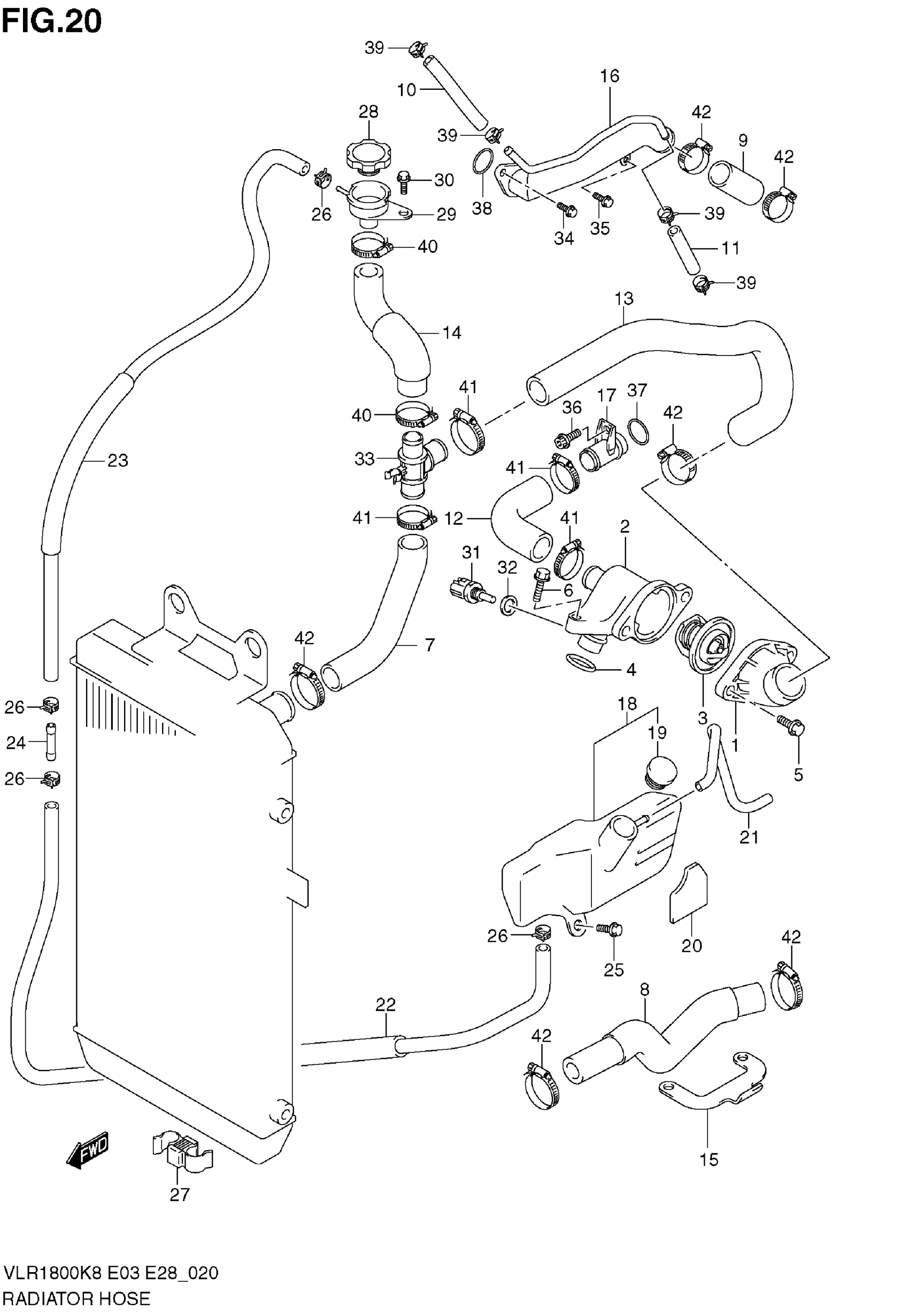

Find the part on the Radiator Hose diagram for your 2009 Suzuki VLR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VLR1800 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, THERMOSTAT

17661-48G10

1
Out of stock

2

CONNECTOR, THERMOSTAT INLET

17662-48G00

1
Out of stock

3

THERMOSTAT,WATER This part replaces 17670-06G50.

17670-06G51

1
Out of stock

4

O RING

09280-18009

1
Out of stock

5

BOLT

01550-0620A

2
Out of stock

6

BOLT

01547-0625A

1
Out of stock

7

HOSE, RADIATOR INLET

17851-22H00

1
Out of stock

8

HOSE, RADIATOR OUTLET

17852-22H00

1
Out of stock

9

HOSE, CYLINDER INLET

17853-48G00

1
Out of stock

10

HOSE, WATER BYPASS UPPER

17854-48G00

1
Out of stock

11

HOSE, WATER BYPASS LOWER

17855-48G00

1
Out of stock

12

HOSE, REAR CYL HEAD OUTLET

17856-48G00

1
Out of stock

13

HOSE, THERMOSTAT OUTLET

17857-22H00

1
Out of stock

14

HOSE, CONDUCTION

17858-22H00

1
Out of stock

15

BRACKET

17859-48G00

1
Out of stock

16

PIPE, CYL WATER INLET

17860-48G00

1
Out of stock

17

UNION

17890-06G20

1
Out of stock

18

TANK ASSY, RESERVOIR | Includes Item(s) 19

17910-22H00

1
Out of stock

19

.CAP,RESERVOIR TANK

17931-02FA0

1
Out of stock

20

CUSHION

17912-22H00

1
Out of stock

21

HOSE, TANK OVERFLOW

17982-22H00

1
Out of stock

22

HOSE, TANK INLET NO.1

17981-22H00

1
Out of stock

23

HOSE, TANK INLET NO.2

17981-22H10

1
Out of stock

24

JOINT, HOSE

09364-06005

1
Out of stock

25

BOLT (6X12)

09111-06085

1
Out of stock

26

CLIP

09401-08411

4
Out of stock

27

CLAMP

09408-00224

2
Out of stock

28

CAP

17730-12C30

1
Out of stock

29

CONDUCTION

17791-24D00

1
Out of stock

30

BOLT

01550-0620A

1
Out of stock

31

SENSOR, WATER TEMP

13650-49X00

1
Out of stock

32

GASKET

09168-12017

1
Out of stock

33

JOINT, 3 WAY

17891-48G00

1
Out of stock

34

BOLT

09103-06274

2
Out of stock

35

BOLT

09103-06280

1
Out of stock

36

BOLT

07130-0612A

1
Out of stock

37

O RING

09280-18009

1
Out of stock

38

O RING

09280-26005

1
Out of stock

39

CLIP This part replaces 09401-12409.

09401-12414

4
Out of stock

40

CLAMP

09402-28513

2
Out of stock

41

CLAMP

09402-32512

4
Out of stock

42

CLAMP

09402-38512

6
Out of stock
