2009 Suzuki VLR1800 CAM Chain Diagram

← All diagrams

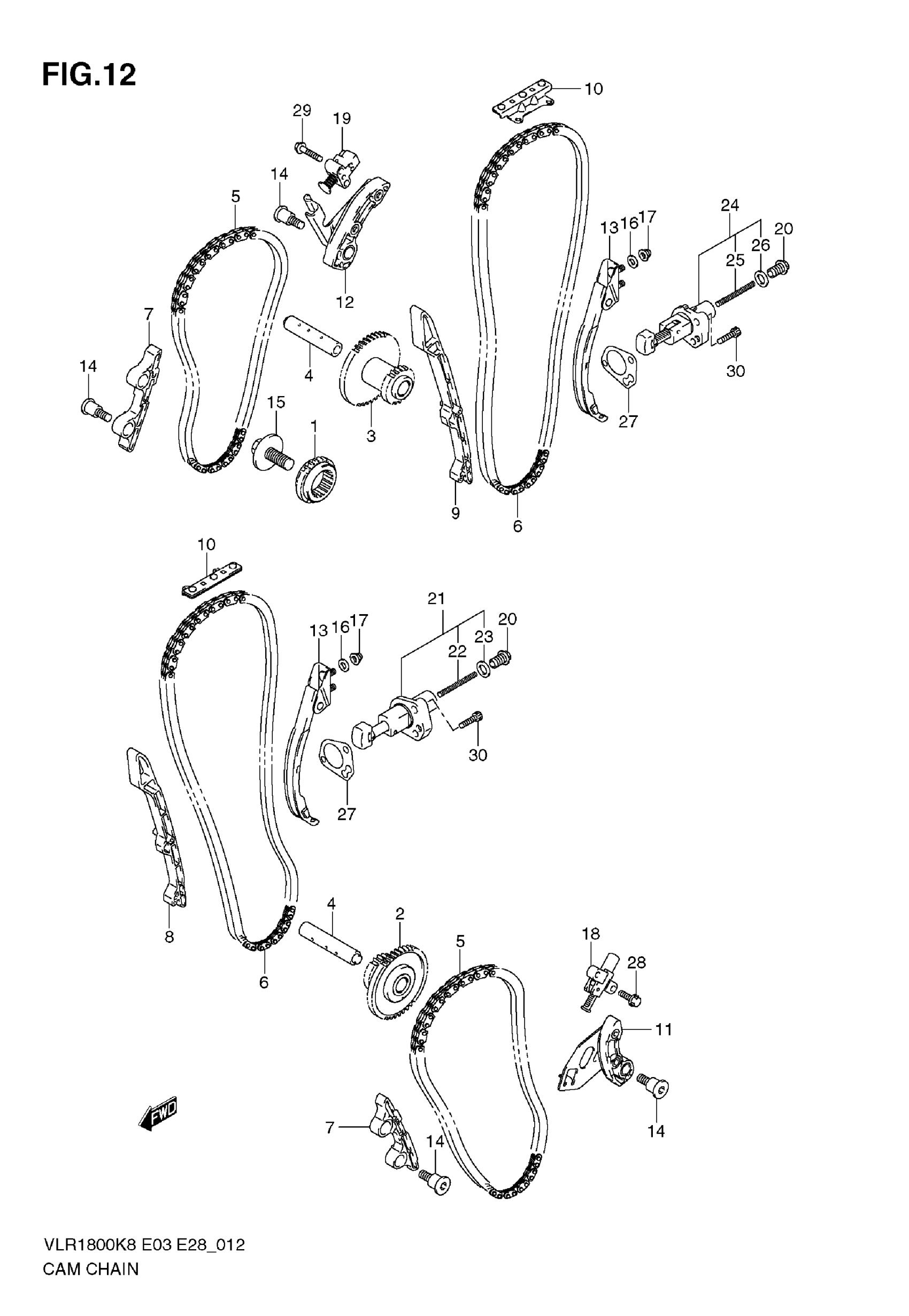

Find the part on the CAM Chain diagram for your 2009 Suzuki VLR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VLR1800 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPROCKET, CAM CHAIN DRIVE RH

12731-48G00

1
Out of stock

2

SPROCKET, CAM CHAIN IDLE FR

12751-48G00

1
Out of stock

3

SPROCKET, CAM CHAIN IDLE RR

12752-48G00

1
Out of stock

4

SHAFT, IDLER

12755-48G00

2
Out of stock

5

CHAIN, CAMSHAFT DRIVE NO.1

12761-48G00

2
Out of stock

6

CHAIN, CAMSHAFT DRIVE NO.2

12762-48G00

2
Out of stock

7

GUIDE, CAM CHAIN NO.1

12771-48G00

2
Out of stock

8

GUIDE, CAM CHAIN NO.2 FR

12772-48G00

1
Out of stock

9

GUIDE, CAM CHAIN NO.2 RR

12774-48G00

1
Out of stock

10

GUIDE, CAM CHAIN NO.3

12773-48G00

2
Out of stock

11

TENSIONER, CAM CHAIN NO.1 FR

12811-48G00

1
Out of stock

12

TENSIONER, CAM CHAIN NO.1 RR

12813-48G00

1
Out of stock

13

TENSIONER,CAM CHAIN NO.2 This part replaces 12814-48G00.

12814-48G01

2
Out of stock

14

BOLT

12812-31G00

6
Out of stock

15

BOLT (12X28)

09103-12013

1
Out of stock

16

GASKET

09168-06023

4
Out of stock

17

NUT

08313-20067

4
Out of stock

18

ADJUSTER, TENSIONER NO.1 FR

12831-48G00

1
Out of stock

19

ADJUSTER, TENSIONER NO.1 RR

12832-48G00

1
Out of stock

20

PLUG

12833-17G00

2
Out of stock

21

ADJUSTER, TENSIONER NO.2 FR | Includes Item(s) 22 - 23

12834-48G00

1
Out of stock

22

SPRING

12831-35F00

1
Out of stock

23

GASKET

12837-24F10

1
Out of stock

24

ADJUSTER, TENSIONER NO.2 RR | Includes Item(s) 25 - 26

12835-48G00

1
Out of stock

25

SPRING

12831-35F00

1
Out of stock

26

GASKET

12837-24F10

1
Out of stock

27

GASKET

12837-27G00

2
Out of stock

28

BOLT

01550-0620A

2
Out of stock

29

BOLT

01550-0630A

2
Out of stock

30

BOLT

07130-0625B

4
Out of stock
