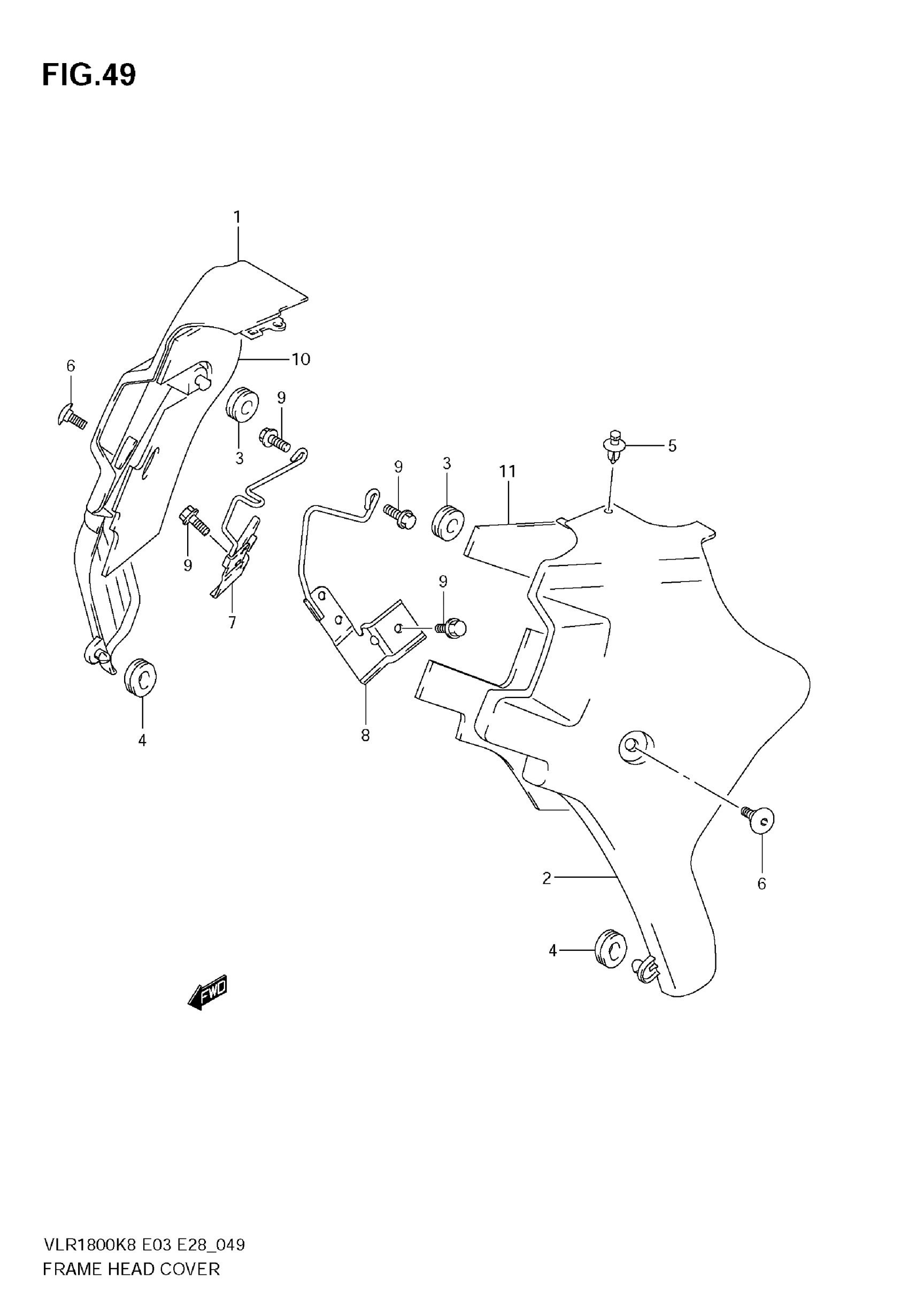

Suzuki VLR1800 (2009) FRAME HEAD COVER Diagram

#

Description
Price

1

COVER, FRAME HEAD RH (BLACK)

47351-22H00-019

Unavailable

2

COVER, FRAME HEAD LH (BLACK)

47361-22H00-019

Unavailable

3

CUSHION, UPPER

09320-08018

$2.80

4

CUSHION, LOWER

09320-08029

$2.51

5

CLIP

09409-06329

$2.80

6

SCREW

09139-06131

$2.80

7

PLATE, HEAD COVER RH

47370-22H00

Unavailable

8

PLATE, HEAD COVER LH

47380-22H00

Unavailable

9

BOLT

01550-0616A

$1.97

10

CUSHION, RH

47352-22H00

Unavailable

11

CUSHION, LH

47362-22H00

Unavailable
