2009 Suzuki VLR1800 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2009 Suzuki VLR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

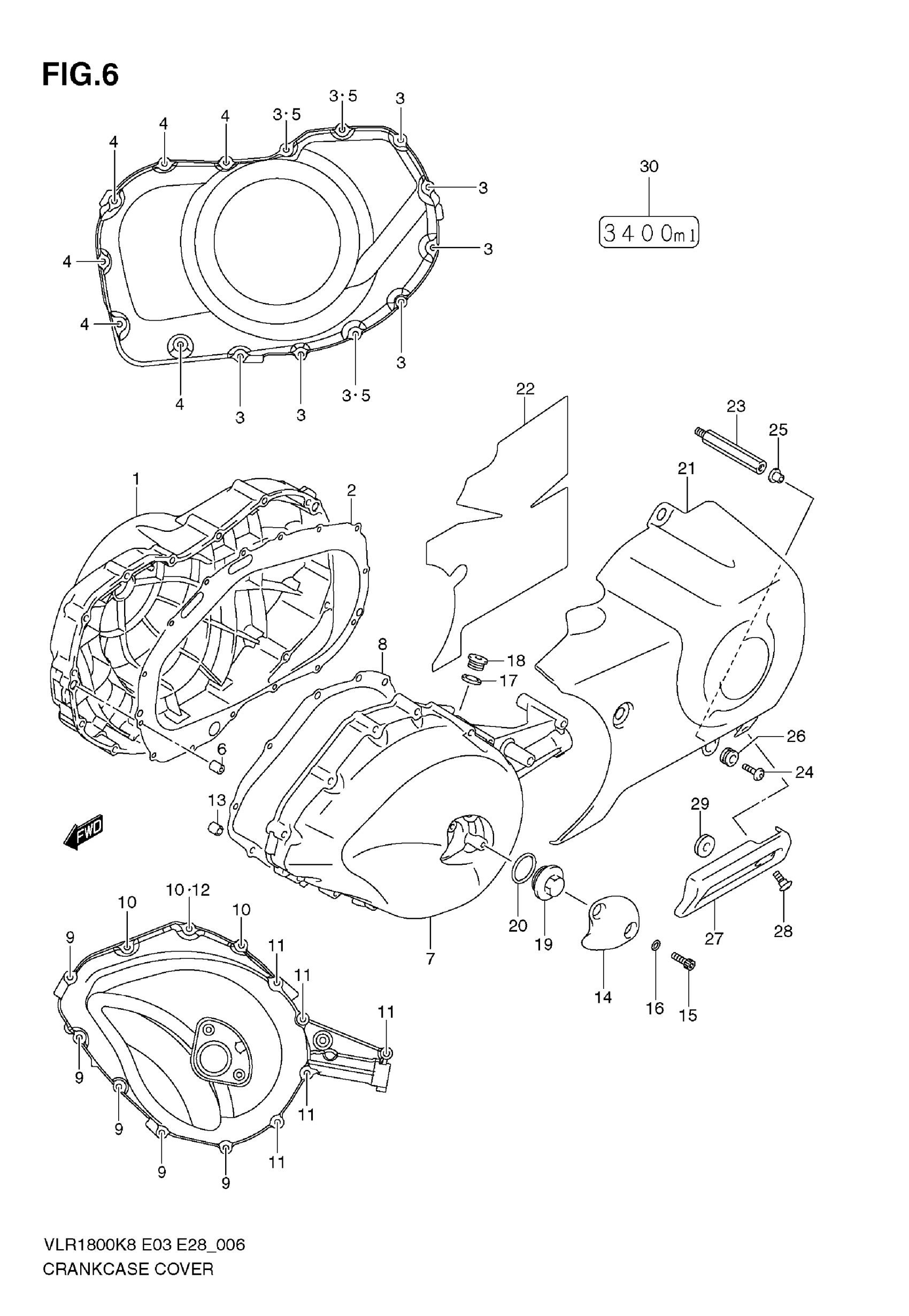

2009 Suzuki VLR1800 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11341-22H00

1
Out of stock

2

GASKET

11482-48G00

1

$24.59

In stock

3

BOLT (6X40)

09103-06215

9
Out of stock

4

BOLT (6X55)

09103-06216

6
Out of stock

5

GASKET

09168-06023

3
Out of stock

6

PIN

04211-09189

2

$1.77

In stock

7

COVER, MAGNETO

11351-22H00

1
Out of stock

8

GASKET

11483-48G00

1

$18.97

In stock

9

BOLT (6X30)

09103-06213

5

$2.63

In stock

10

BOLT (6X40)

09103-06215

3
Out of stock

11

BOLT (6X70)

09103-06225

5

$3.13

In stock

12

GASKET

09168-06023

1
Out of stock

13

PIN

04211-09149

2
Out of stock

14

CAP, MAGNETO COVER

11352-22H00

1
Out of stock

15

BOLT (6X10) This part replaces 09106-06068.

09106-06076

2
Out of stock

16

WASHER

09160-06165

2
Out of stock

17

GASKET

09168-16002

1
Out of stock

18

PLUG

09248-16012

1
Out of stock

19

PLUG, CRANKSHAFT HOLE

09259-30005

1
Out of stock

20

O RING

09280-26006

1
Out of stock

21

COVER, SECONDARY DRIVE

11361-22H00

1
Out of stock

22

DAMPER, SEC DRIVE COVER

11363-22H00

1
Out of stock

23

BOLT

11372-22H00

1
Out of stock

24

BOLT

09139-06028

3

$3.58

In stock

25

SPACER

09169-06062

3
Out of stock

26

CUSHION

09320-09501

3
Out of stock

27

COVER, SECONDARY DRIVE NO.2

11362-22H00

1
Out of stock

28

BOLT

09139-06120

1
Out of stock

29

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

1
Out of stock

30

NOTE, ENGINE OIL

68322-48G00

1
Out of stock
