2009 Suzuki VLR1800 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2009 Suzuki VLR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

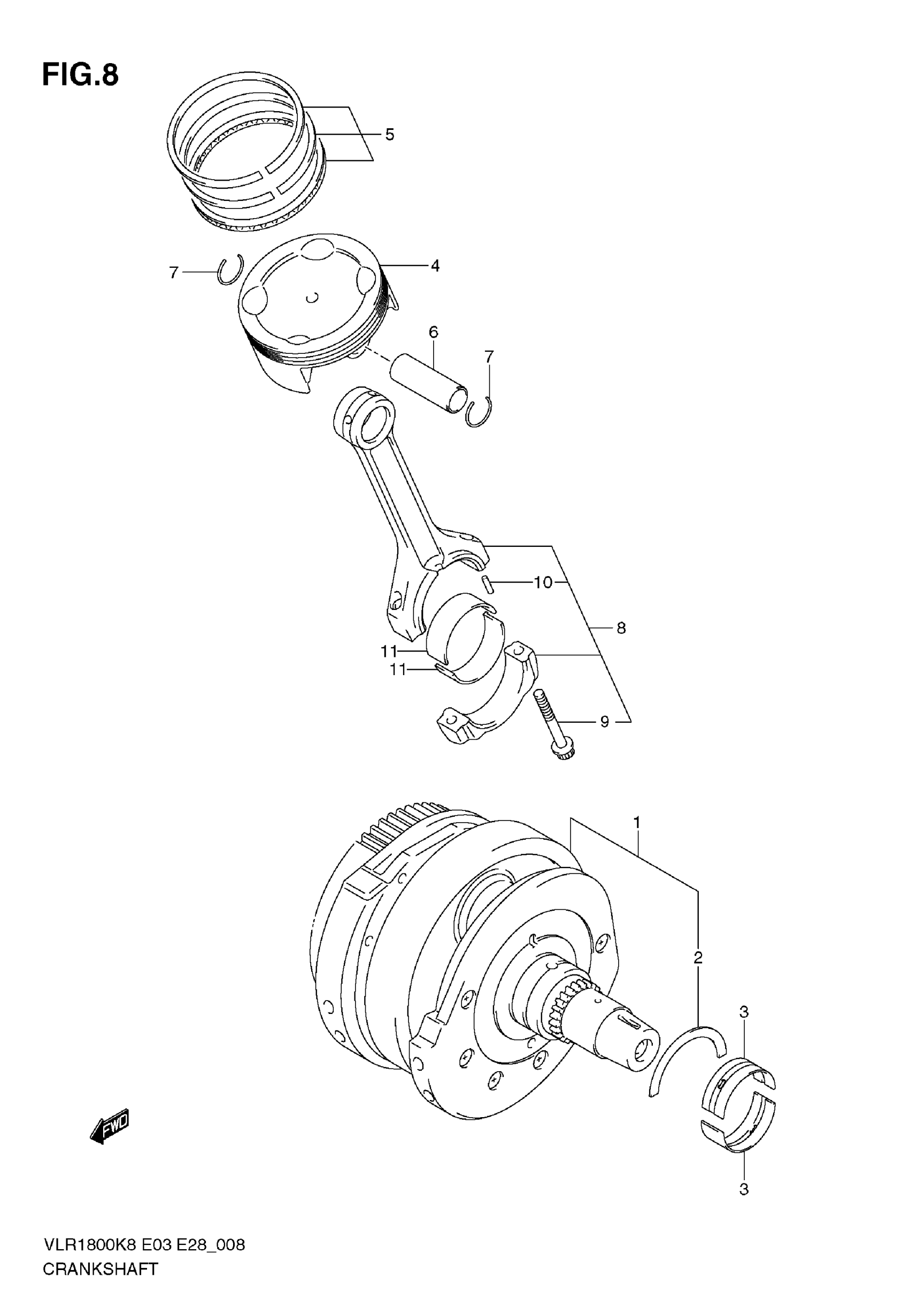

2009 Suzuki VLR1800 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT SET | Includes Item(s) 2 - 2

12000-22810

1
Out of stock

2

WASHER, CRANK THRUST (RED)

12228-48G00-0A0

1
Out of stock

2

WASHER, CRANK THRUST (BLACK)

12228-48G00-0B0

1
Out of stock

2

WASHER, CRANK THRUST (BLUE)

12228-48G00-0C0

1
Out of stock

2

WASHER, CRANK THRUST (GREEN)

12228-48G00-0D0

1
Out of stock

2

WASHER, CRANK THRUST (YELLOW)

12228-48G00-0E0

1
Out of stock

2

WASHER, CRANK THRUST (WHITE)

12228-48G00-0F0

1
Out of stock

3

BEARING, CRANKSHAFT (GREEN)

12229-48G10-0A0

4
Out of stock

3

BEARING, CRANKSHAFT (BLACK)

12229-48G10-0B0

4
Out of stock

3

BEARING, CRANKSHAFT (BROWN)

12229-48G10-0C0

4
Out of stock

3

BEARING, CRANKSHAFT (YELLOW)

12229-48G10-0D0

4
Out of stock

3

BEARING, CRANKSHAFT (BLUE)

12229-48G10-0E0

4
Out of stock

4

PISTON

12111-48G00-0F0

2
Out of stock

5

RING SET, PISTON

12140-48G00

2
Out of stock

6

PIN, PISTON

12151-48G00

2
Out of stock

7

CIRCLIP

09381-23003

4
Out of stock

8

ROD ASSY, CONNECTING | Includes Item(s) 9 - 10

12160-48G00

2
Out of stock

9

BOLT

12163-06G00

4
Out of stock

10

PIN (4X13.8)

04221-04089

4
Out of stock

11

BEARING, CRANK PIN (GREEN)

12164-48G00-0A0

4
Out of stock

11

BEARING, CRANK PIN (BLACK)

12164-48G00-0B0

4
Out of stock

11

BEARING, CRANK PIN (BROWN)

12164-48G00-0C0

4
Out of stock

11

BEARING, CRANK PIN (YELLOW)

12164-48G00-0D0

4
Out of stock
