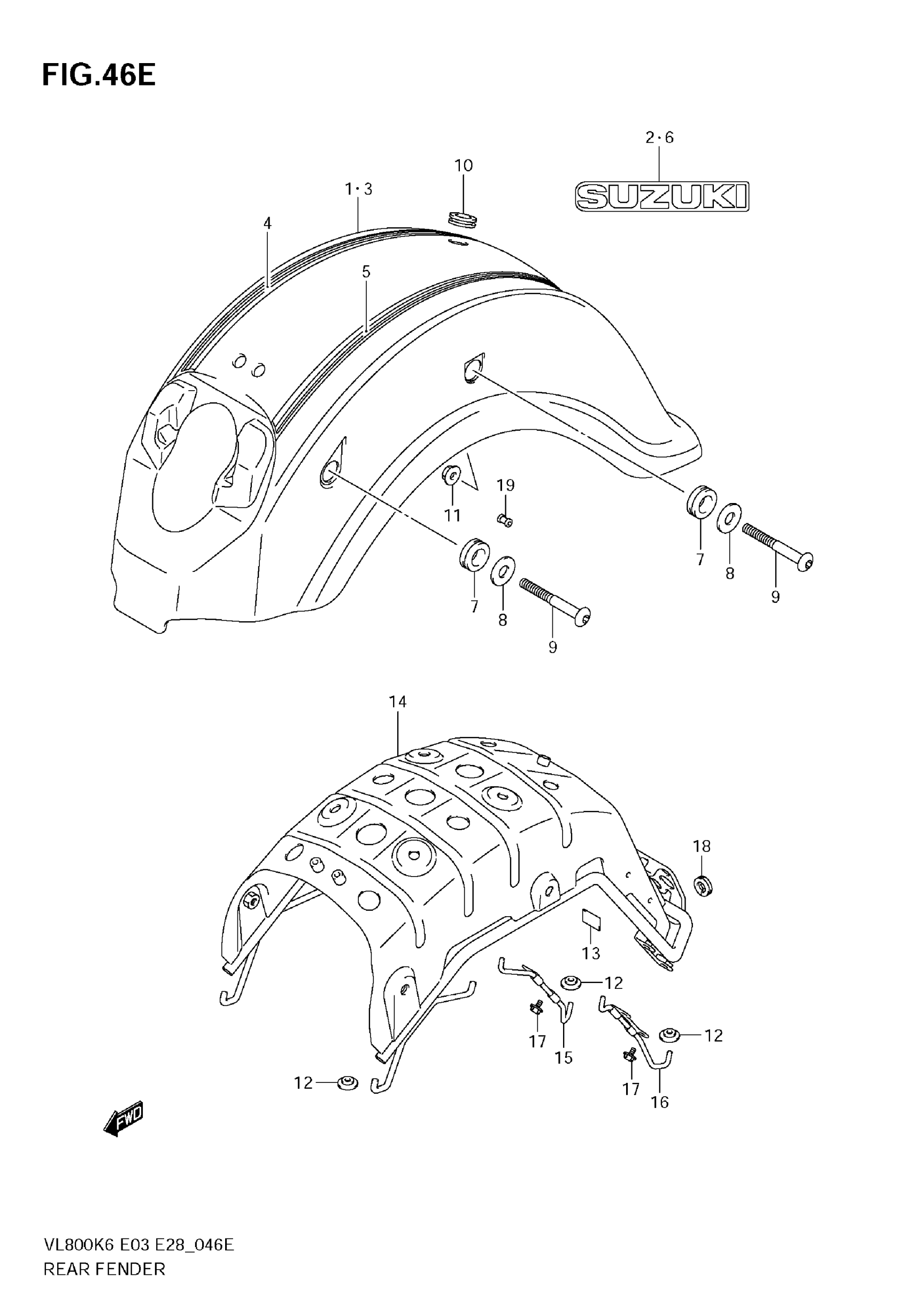

Suzuki VL800 (2009) REAR FENDER (MODEL K9) Diagram

#

Description
Price

1

FENDER, REAR (BLACK) | VL800

63110-43H00-YAY

Unavailable

1

FENDER, REAR (RED) | VL800; Includes Item(s) 2

63110-43H00-YMK

Unavailable

2

.EMBLEM,"SUZUKI" (SILVER) | VL800 This part replaces 68271-34A00-YES.

68271-34A01-YES

$9.08

3

FENDER,RR | VL800C This part replaces 63110-43H20-GDV.

63110-43H21-GDV

Unavailable

3

FENDER, REAR | VL800C

63110-43H20-GDU

Unavailable

3

FENDER, REAR | VL800T

63110-43H20-FKE

Unavailable

3

FENDER, REAR | VL800T; Includes Item(s) 4 - 6

63110-43H20-GDT

Unavailable

4

TAPE SET, RH | VL800C FOR DFV

68170-43H00-GNT

Unavailable

4

TAPE SET, RH | VL800C FOR GDU

68170-43H00-GNV

Unavailable

4

TAPE SET, RH | VL800T FOR FKE

68170-43H00-GKR

Unavailable

4

TAPE SET, RH | VL800T FOR GDT

68170-43H00-GPC

Unavailable

5

TAPE SET, LH | VK800C FOR GDV

68710-43H00-GNT

Unavailable

5

TAPE SET, LH | VK800C FOR GDU

68710-43H00-GNV

Unavailable

5

TAPE SET, LH | VK800T FOR FKE

68710-43H00-GKR

Unavailable

5

TAPE SET, LH | VK800T FOR GDT

68710-43H00-GPC

Unavailable

6

EMBLEM,"SUZUKI" | VL800C This part replaces 68271-34A00-YJH.

68271-34A01-YJH

Unavailable

6

.EMBLEM,"SUZUKI" (SILVER) | VL800T This part replaces 68271-34A00-YES.

68271-34A01-YES

$9.08

7

CUSHION

47191-24F00

$4.86

8

WASHER

09160-15002

$1.70

9

BOLT

63161-41F00

$8.85

10

CUSHION, PILLION SEAT

09320-15008

$3.56

11

NUT

08316-1008B

$2.65

12

CUSHION, REAR

09320-06026

$4.45

13

CUSHION,FR FEND This part replaces 53145-17C00.

53145-17C12

$5.78

14

PLATE, REAR FENDER

63130-43H00

$468.58

15

BRACKET, LOWER RH

63150-43H00

$46.25

16

BRACKET, LOWER LH

63160-43H00

$46.25

17

BOLT

01550-0610B

$2.43

18

GROMMET, MUDGUARD

09308-10017

$5.65

19

CUSHION, GRIP

09250-07004

$3.72
