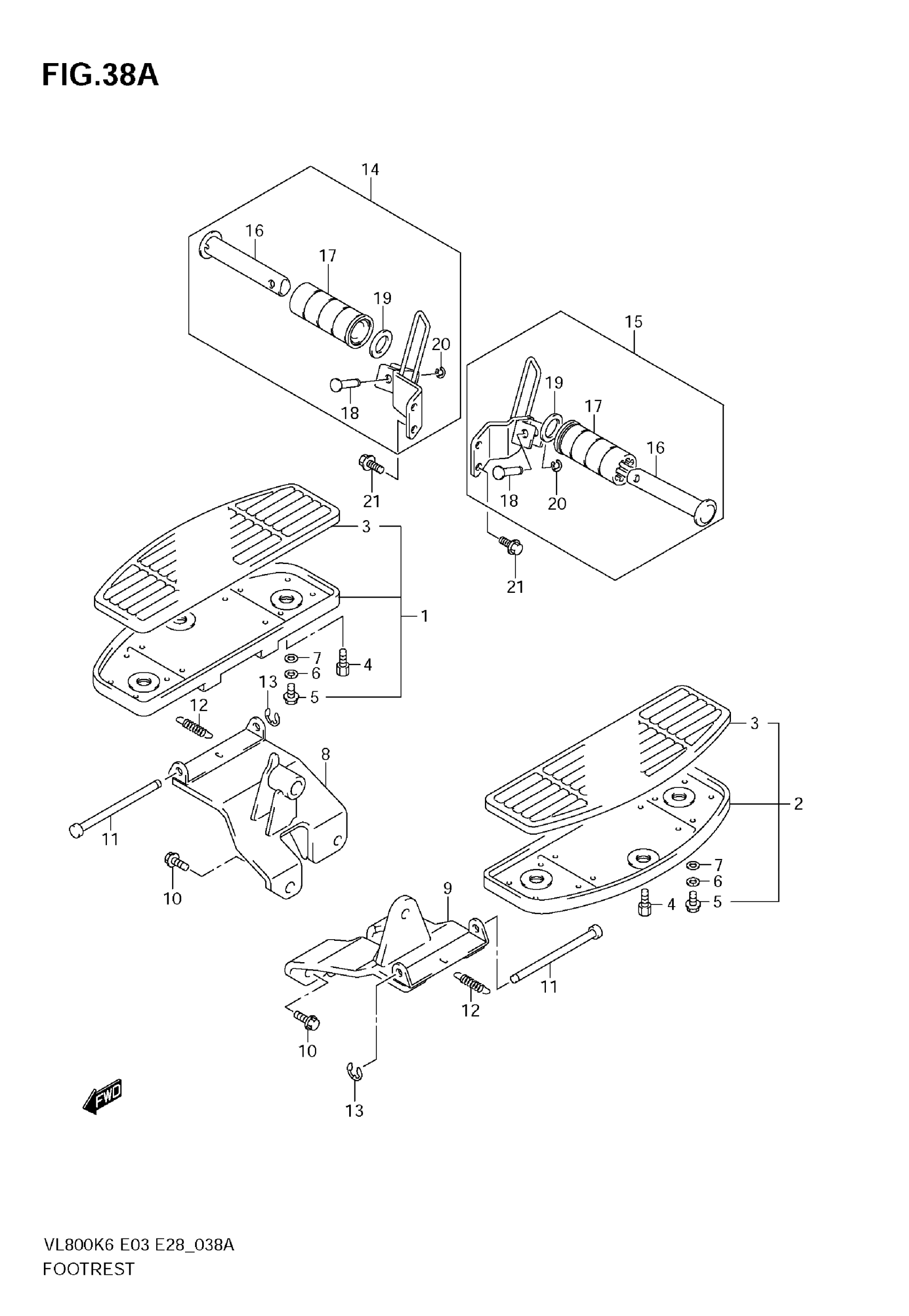

Find the part on the Footrest diagram for your 2009 Suzuki VL800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VL800 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTREST ASSY,FRONT RH This part replaces 43501-10F10.

43501-10F12

1
Out of stock

2

FOOTREST ASSY,FRONT LH | Includes Item(s) 3 - 7 This part replaces 43502-10F10.

43502-10F12

1
Out of stock

3

RUBBER

43550-10F10

2
Out of stock

4

.BOLT,BANK SENSOR

43576-07D01

2
Out of stock

5

BOLT

01550-0610B

6
Out of stock

6

WASHER

09160-06158

6
Out of stock

7

.CUSHION This part replaces 09320-10036.

09320-10077

6
Out of stock

8

BRACKET, FRONT FOOTREST RH

43510-41F30

1
Out of stock

9

BRACKET, FRONT FOOTREST LH

43520-41F30

1
Out of stock

10

BOLT

01580-1030B

4
Out of stock

11

PIN,FRONT FOOTREST

43539-10F00

2
Out of stock

12

SPRING

09443-11033

2
Out of stock

13

E-RING

08332-1106B

2
Out of stock

14

FOOTREST ASSY, PILLION RH

43600-41F50

1
Out of stock

15

FOOTREST ASSY, PILLION LH | Includes Item(s) 16 - 20

43700-41F50

1
Out of stock

16

BAR

43610-39G00

2
Out of stock

17

RUBBER

43612-39G00

2
Out of stock

18

PIN

43636-25D00

2
Out of stock

19

WASHER

09160-19024

2
Out of stock

20

E-RING

08332-1104B

2
Out of stock

21

BOLT, BRACKET

09103-08412

4
Out of stock
