2009 Suzuki VL800 Luggage BOX Diagram

← All diagrams

Find the part on the Luggage BOX diagram for your 2009 Suzuki VL800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

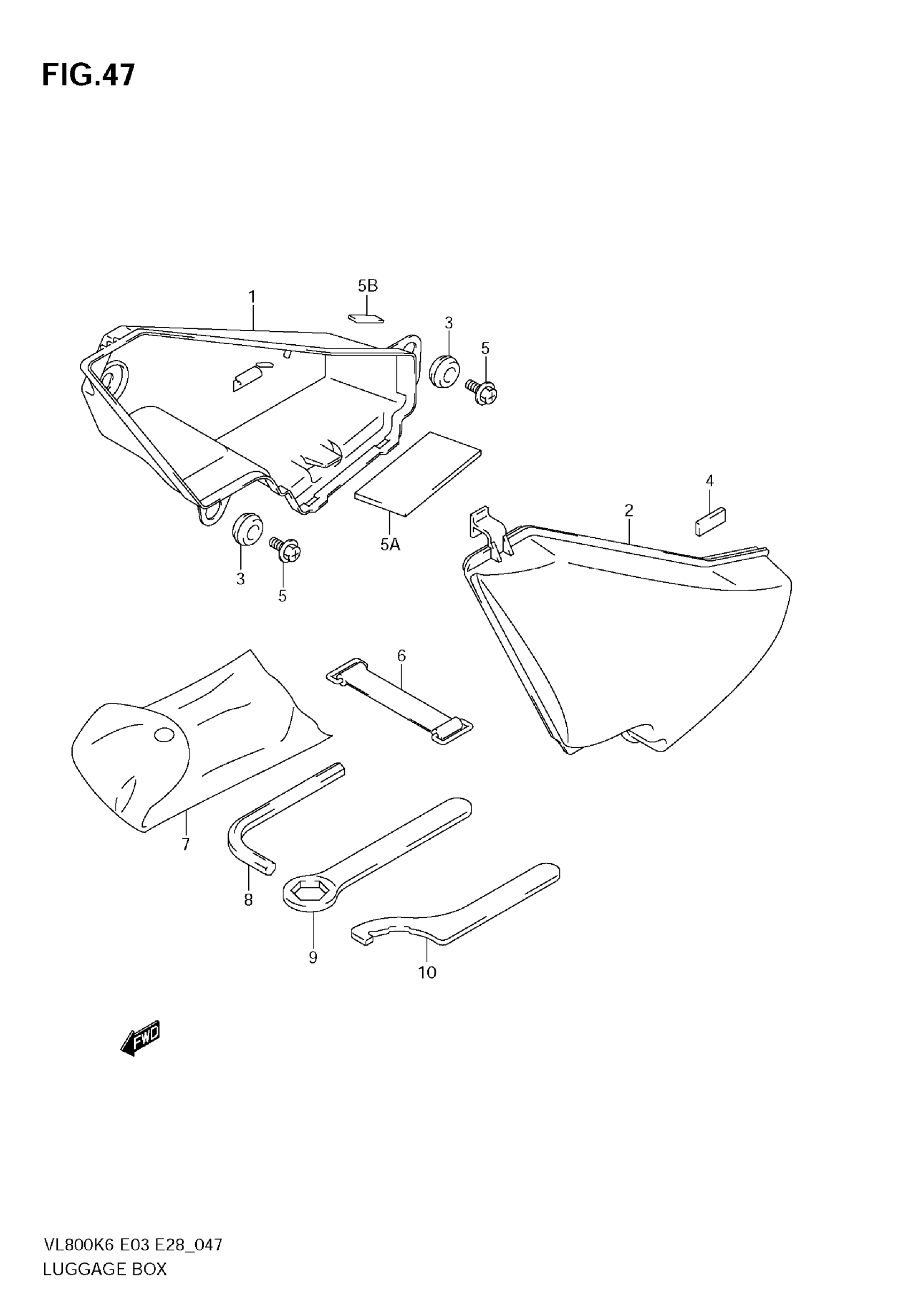

2009 Suzuki VL800 Luggage BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, LUGGAGE BOX

92211-41F00

1
Out of stock

2

LID,LUGGAGE BOX

92212-41F01

1
Out of stock

3

CUSHION | MODEL K6/K7/K8

93676-80020

1
Out of stock

4

CUSHION, NO.2

92213-41F00

1
Out of stock

5

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

2
Out of stock

5A

CUSHION, BOX | MODEL K9

33652-35F00

1
Out of stock

5B

CUSHION, BOX UPPER | MODEL K9

48128-14FA0

1
Out of stock

6

O RING(D:3.5,ID This part replaces 09280-61002.

09280-61004

1
Out of stock

7

TOOL ASSY | MODEL K6 This part replaces 09800-21012.

09800-21069

1
Out of stock

7

TOOL ASSY | MODEL K7/K8/K9 This part replaces 09800-21055.

09800-21102

1
Out of stock

8

HEXAGON SPANNER, 6

09816-00050

1
Out of stock

8

HEXAGON SPANNER, 4 | MODEL K6

09816-00103

1
Out of stock

8

HEXAGON SPANNER, 12 | MODEL K6

09816-00139

1
Out of stock

8

HEXAGON SPANNER, 8 | MODEL K6

09816-00051

1
Out of stock

9

SPANNER (22) | MODEL K6

09817-00035

1
Out of stock

10

CLAMP,WRENCH | MODEL K6

09822-00003

1
Out of stock
