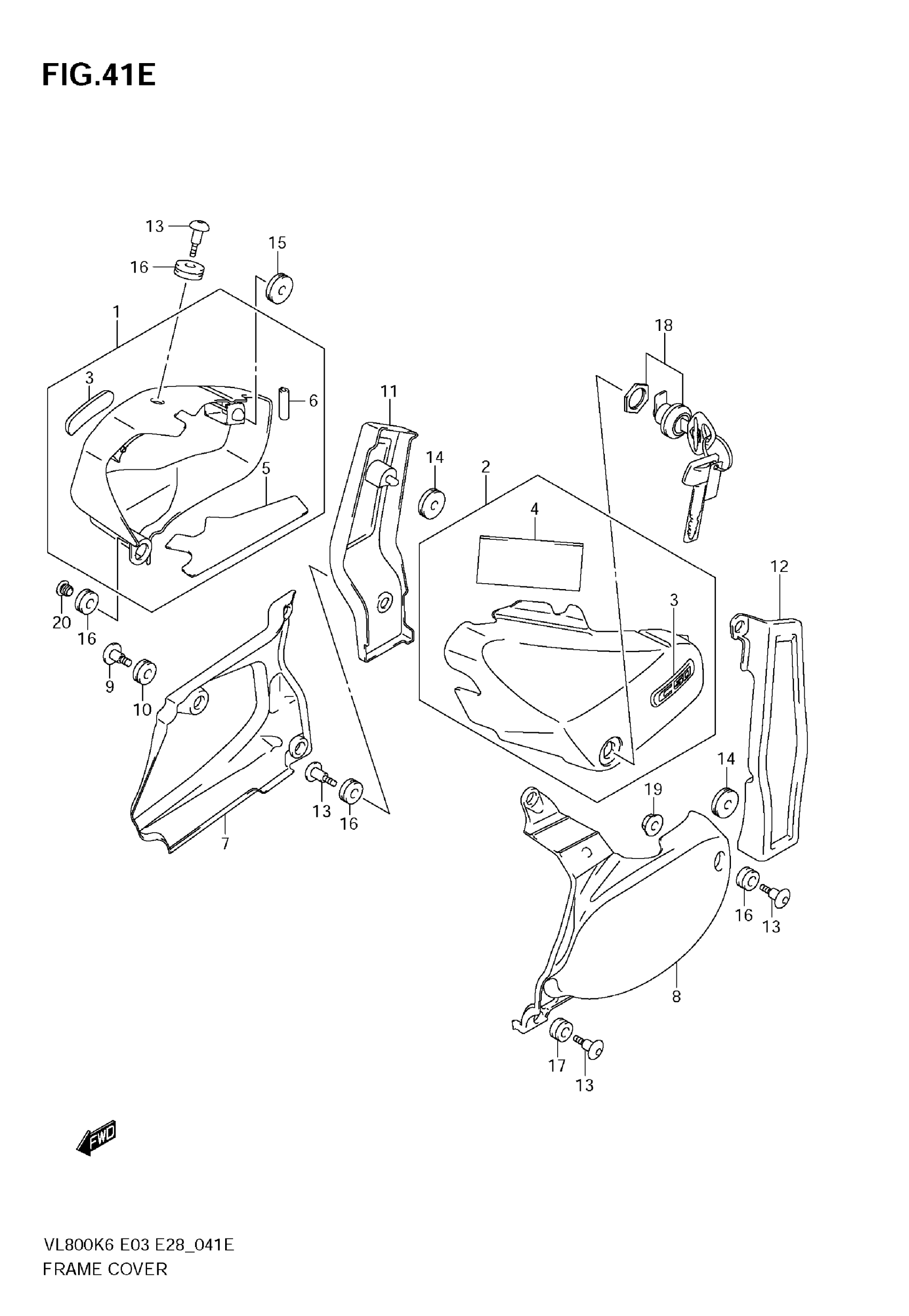

Suzuki VL800 (2009) FRAME COVER (MODEL K9) Diagram

#

Description
Price

1

COVER,SIDE,R | VL800 E3,E28 This part replaces 47110-41FT0-YAY.

47110-41F60-YAY

Unavailable

1

COVER, FRAME RH (RED) | VL800 E3,E28

47110-41FT0-YMK

Unavailable

1

COVER, FRAME RH (GRAY) | VL800C E3,E28 FOR GDV

47110-41FT0-YLF

Unavailable

1

COVER, FRAME RH (GREEN) | VL800C E3,E28 FOR GDU

47110-41FT0-YRE

Unavailable

1

COVER, FRAME RH (BLACK) | VL800T E3,E28 FOR FKE

47110-41FN0-YAY

Unavailable

1

COVER, FRAME RH (BLUE) | VL800T E3,E28 FOR GDT

47110-41FN0-YRC

Unavailable

1

COVER, FRAME RH (BLACK) | VL800 E33

47110-41FM0-YAY

Unavailable

1

COVER, FRAME RH (RED) | VL800 E33

47110-41FM0-YMK

Unavailable

1

COVER, FRAME RH (GRAY) | VL800 E33 FOR GDV

47110-41FM0-YLF

Unavailable

1

COVER, FRAME RH (GREEN) | VL800C E33 FOR GDU

47110-41FM0-YRE

Unavailable

1

COVER, FRAME RH (BLACK) | VL800T E33 FOR FKE

47110-41FP0-YAY

Unavailable

1

COVER, FRAME RH (BLUE) | VL800T E33 FOR GDT

47110-41FP0-YRC

Unavailable

2

COVER,SIDE,L(BL | VL800 This part replaces 47210-41FL0-YAY.

47210-41FL1-YAY

$259.58

2

COVER COMP,SIDE | VL800 This part replaces 47210-41FL0-YMK.

47210-41FL1-YMK

$242.28

2

COVER, FRAME LH (GRAY) | VL800C FOR GDV

47210-41FL0-YLF

Unavailable

2

COVER,SIDE,L(GR | VL800C FOR GDU This part replaces 47210-41FL0-YRE.

47210-41FL1-YRE

Unavailable

2

COVER,SIDE,L(BL | VL800T FOR FKE This part replaces 47210-41FM0-YAY.

47210-41FM1-YAY

Unavailable

2

COVER COMP,SIDE | VL800T FOR GDT; Includes Item(s) 3 - 6 This part replaces 47210-41FM0-YRC.

47210-41FM1-YRC

Unavailable

3

EMBLEM, "C50" | VL800/C This part replaces 68131-41F40.

68131-41F41

$37.73

3

EMBLEM, "C50T" | VL800T This part replaces 68131-41F50.

68131-41F51

$35.90

4

CUSHION, LH

47217-41F00

$13.53

5

SHIELD, FRAME COVER RH

47166-41F00

$20.13

6

MOLDING, RH

94631-35F00

$8.35

7

COVER, SIDE LOWER RH

47130-41F00

Unavailable

8

COVER, SIDE LOWER LH

47231-41F00

$429.23

9

SCREW

47133-43H00

$7.98

10

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

11

COVER, SIDE REAR RH (BLACK)

47141-41F01-019

$155.65

12

COVER, SIDE REAR LH (BLACK)

47241-41F00-019

$154.90

13

SCREW

09139-06126

$3.65

14

CUSHION

09320-08018

$2.80

15

CUSHION BOX REAR

09320-08028

$2.80

16

CUSHION

09320-09501

$2.06

17

CUSHION This part replaces 09320-09045.

09320-09062

$2.14

18

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$69.50

19

NUT, SIDE LOWER LH

08316-1006B

$2.50

20

CAP This part replaces 09250-09001.

09250-09008

$1.56
