2009 Suzuki VL800 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2009 Suzuki VL800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

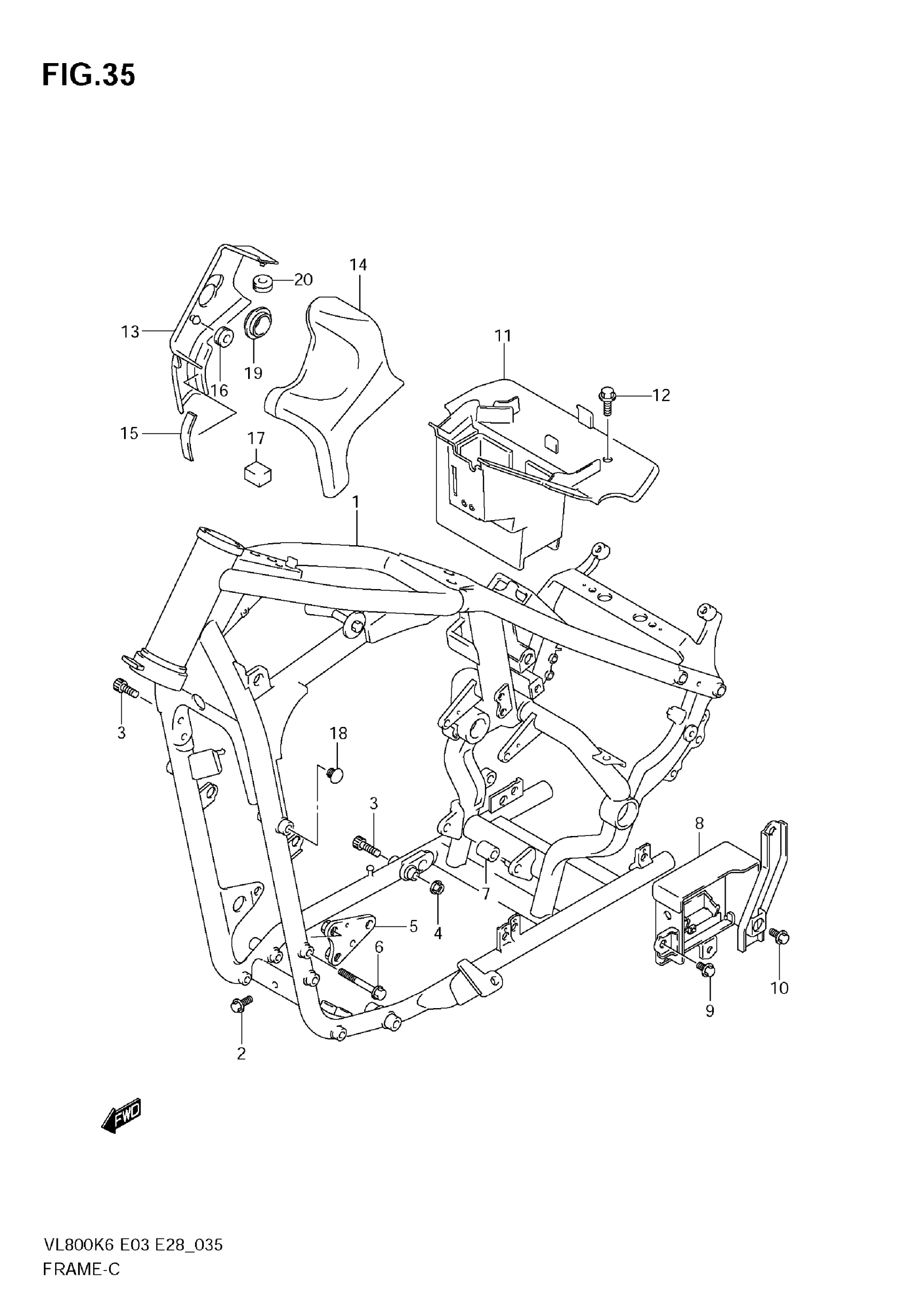

2009 Suzuki VL800 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | VL800K6/TK6 This part replaces 41100-41F40-019.

41100-41F41-019

1
Out of stock

1

FRAME (BLACK) | VL800CK6 This part replaces 41100-41F30-019.

41100-39G01-019

1
Out of stock

1

FRAME (BLACK) | MODEL K7/K8

41100-41F32-019

1
Out of stock

2

BOLT, LOWER BRIDGE FRONT

01550-0816B

2
Out of stock

3

BOLT

07130-1035B

4

$5.63

In stock

4

NUT

08319-3110B

4
Out of stock

5

PLATE, ENGINE MOUNT LH

41920-41F00

1
Out of stock

6

BOLT

09112-08013

2
Out of stock

7

SPACER, LOWER

41941-41F00

1
Out of stock

8

HOLDER, ELECTRIC PARTS

41540-41F10

1
Out of stock

9

BOLT, FRONT

01550-0612B

1
Out of stock

10

BOLT, HOLDER

01550-0816B

2
Out of stock

11

HOLDER, ELECTRIC PARTS

47410-41F01

1
Out of stock

12

BOLT

09113-06001

4
Out of stock

13

1

$70.01

In stock

14

1

$70.40

In stock

15

CUSHION

53145-40A00

4

$2.66

In stock

16

CUSHION

09320-08018

2
Out of stock

17

2

$6.65

In stock

18

2

$1.68

In stock

19

1

$8.55

In stock

20

CUSHION

09320-09501

2

$2.22

In stock
