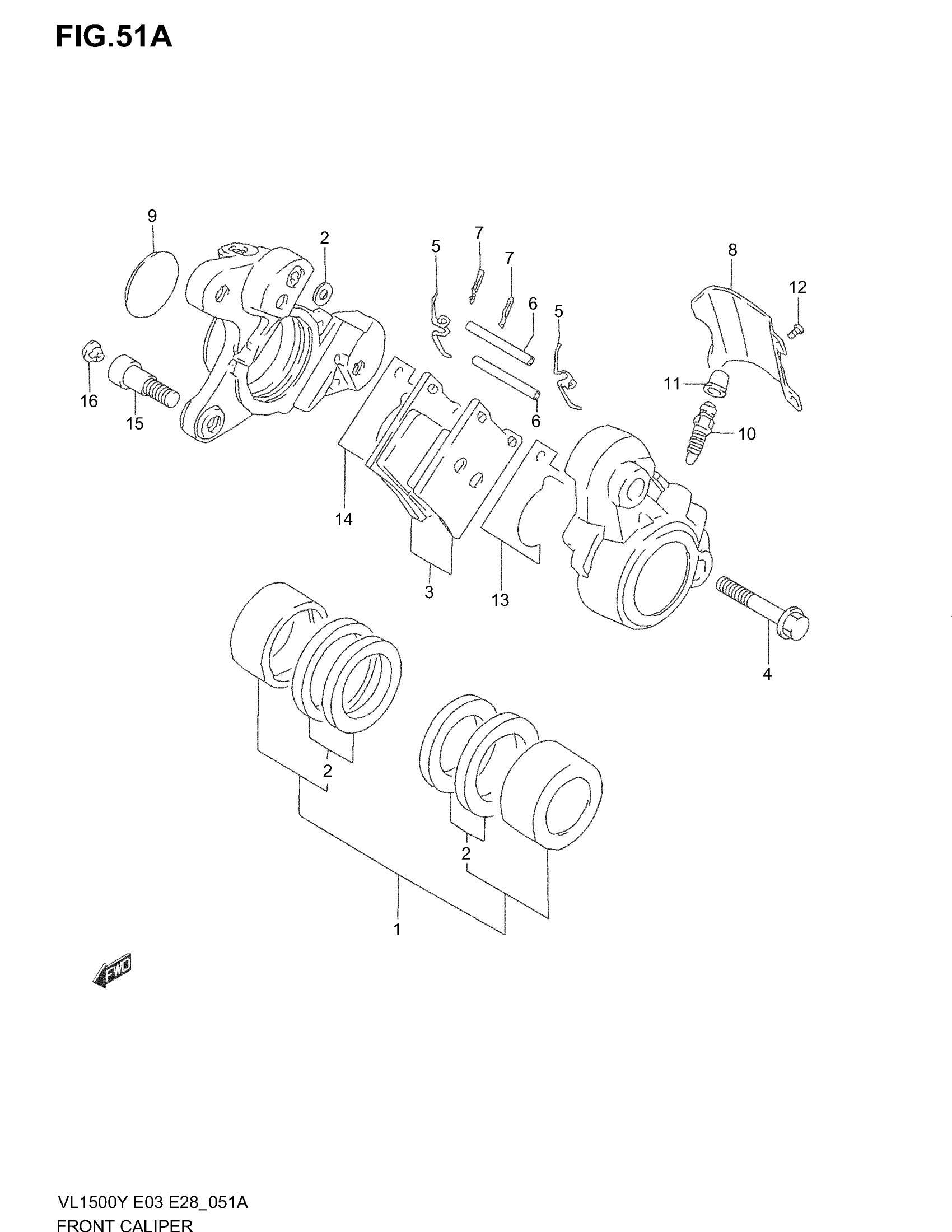

Suzuki VL1500 (2004) FRONT CALIPER (MODEL X/Y/K1) Diagram

#

Description
Price

CALIPER ASSY, FRONT RH | !59100-38B11-999 W/59100-10811; Includes Item(s) 1 - 14 This part replaces 59100-10F10.

59100-38B11-999

$428.98

1

PISTON SET

59100-38811

$111.58

2

SEAL SET, PISTON

59100-38840

$35.93

3

PAD SET This part replaces 59100-10810.

59100-10811

Unavailable

4

BOLT

59145-16700

$9.97

5

SPRING

59143-16700

$5.30

6

PIN

69141-45000

$4.86

7

.CLIP, PAD PIN

69142-45000

$3.97

8

COVER

59151-38B01

Unavailable

9

CAP, CALIPER

59152-24A00

Unavailable

10

BLEEDER

59121-18410

$7.99

11

CAP

55156-66310

$4.73

12

SCREW (4X6)

59153-38B10

$8.80

13

SHIM, INNER

59371-20C00

$18.33

14

SHIM, OUTER

59381-20C00

$18.33

15

BOLT (10X33)

09106-10038

$4.53

16

CAP

09250-08014

$2.80
