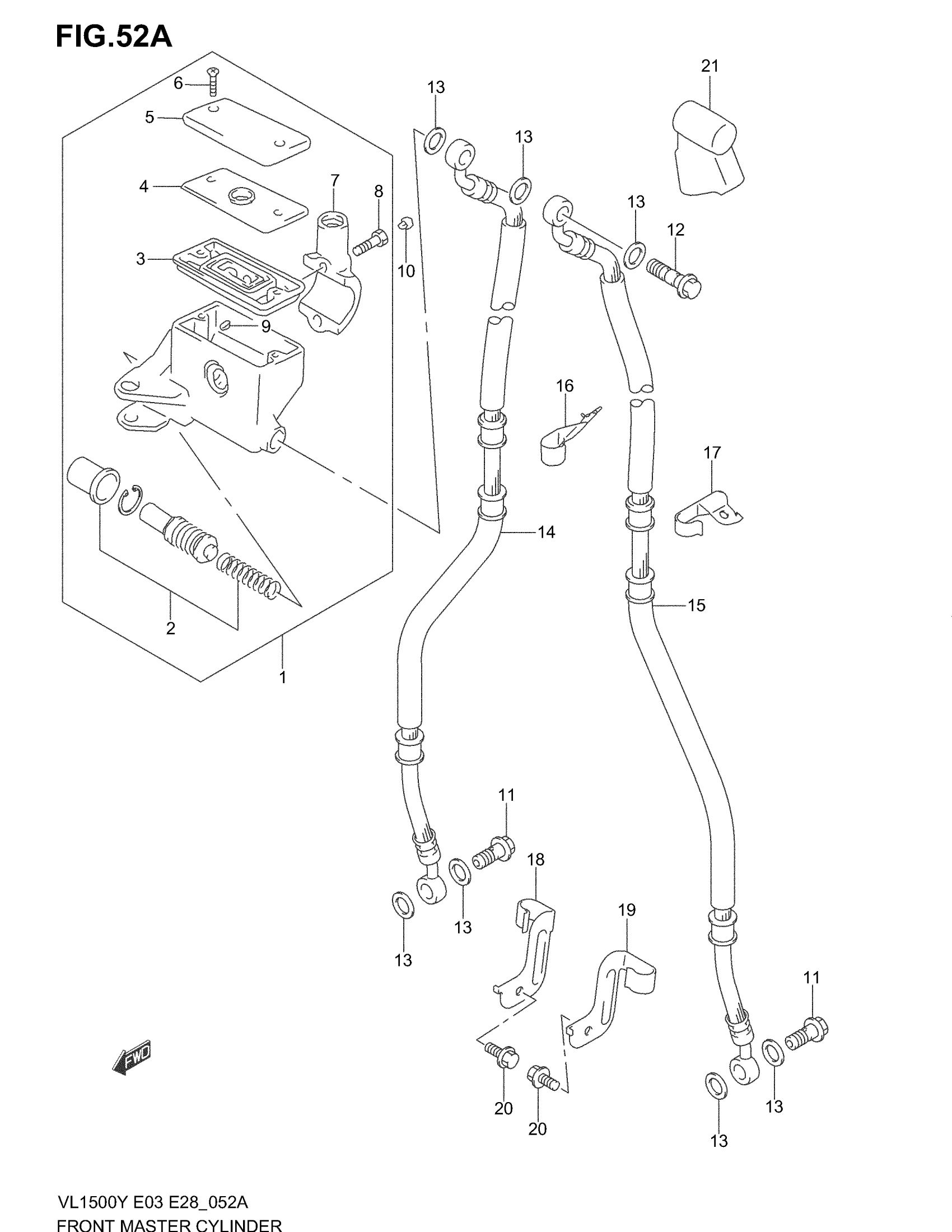

Suzuki VL1500 (2004) FRONT MASTER CYLINDER (MODEL K2/K3/K4) Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9

59600-10F20

Unavailable

2

PISTON & CUP SET

59600-45860

$36.14

3

DIAPHRAGM

59667-49460

$8.95

4

PLATE

59668-41C00

$8.54

5

CAP

59669-10F00

$80.65

6

SCREW

02122-04127

$1.97

7

HOLDER

59671-38A00

$33.97

8

BOLT

07130-06207

$2.80

9

PROTECTOR

59664-48B00

$12.43

10

CAP

09250-05008

$3.44

11

UNION This part replaces 09360-10042.

09360-10062

$5.81

12

UNION This part replaces 09360-10044.

09360-10064

$5.81

13

WASHER (10X15X1.5)

09161-10009

$1.83

14

HOSE, FRONT BRAKE RH

59240-10F00

Unavailable

15

HOSE, FRONT BRAKE LH

59440-10F00

Unavailable

16

CLAMP, FR BRAKE HOSE UPPER RH

59266-10F00

Unavailable

17

CLAMP, FR BRAKE HOSE UPPER LH

59276-10F00

Unavailable

18

CLAMP, FR BRAKE HOSE RH

59268-10F10

Unavailable

19

CLAMP, FR BRAKE HOSE LH

59278-10F10

Unavailable

20

BOLT

09103-06222

$2.28

21

BOOT, FR MASTER CYLINDER

59711-10F00

Unavailable
