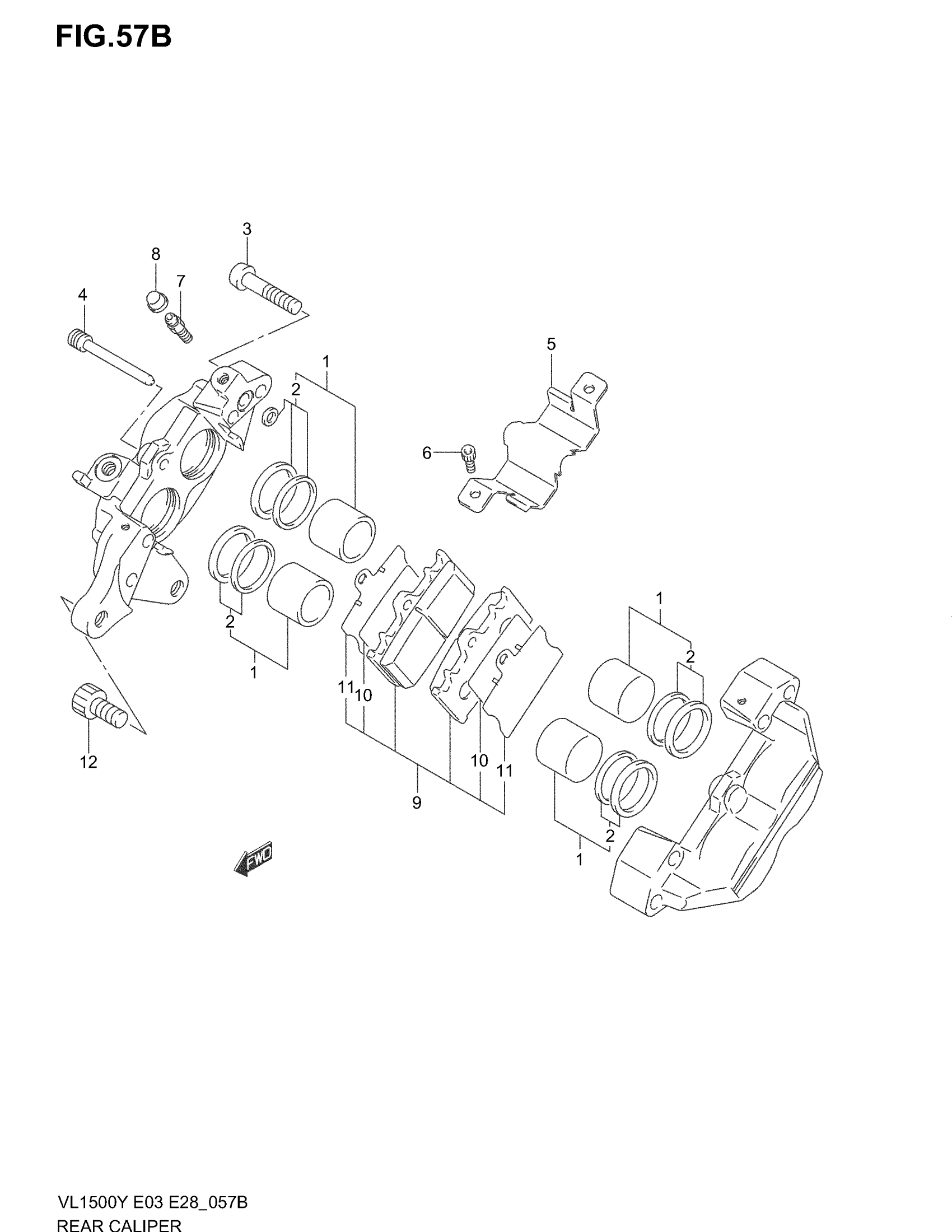

Suzuki VL1500 (2004) REAR CALIPER (MODEL K2/K3/K4) Diagram

CALIPER ASSY, REAR | Includes Item(s) 1 - 8

69100-10F10-999

$412.20

PISTON SET

69100-10810

$150.17

SEAL SET, PISTON This part replaces 59300-35840.

59300-18820

$57.68

BOLT This part replaces 59145-33E10.

59145-33E00

$10.58

PIN, PAD

59141-40F00

$35.26

COVER

69151-10F10

Unavailable

.SCREW

59153-22D00

$7.12

BLEEDER

59121-18410

$7.99

CAP, BLEEDER

55156-66310

$4.73

PAD & SHIM SET | Includes Item(s) 10 - 11

69100-10850

Unavailable

SHIM, PAD

69171-10F10

Unavailable

COVER, SHIM

69172-10F10

Unavailable

BOLT This part replaces 07130-10203.

07130-1020B

$5.00
