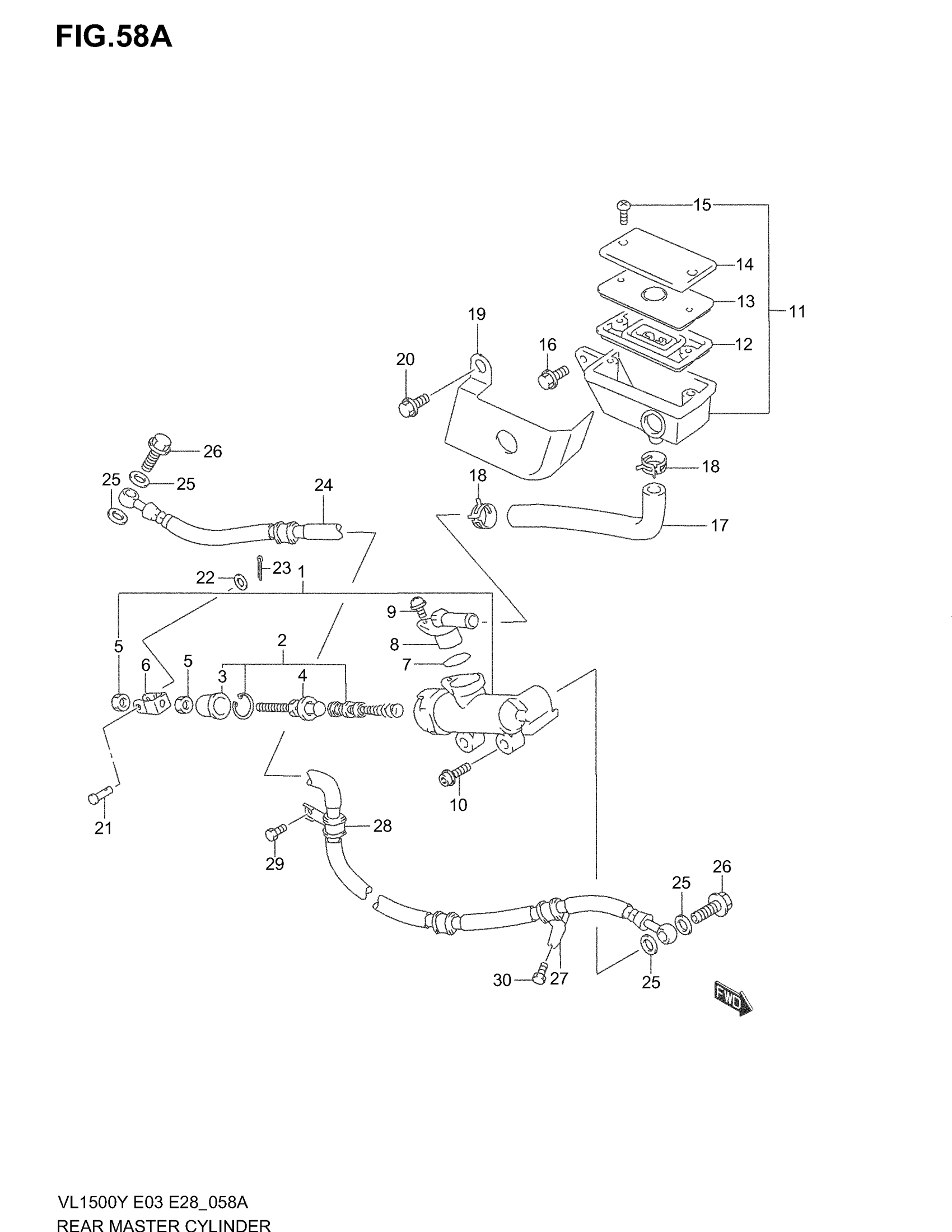

Suzuki VL1500 (2004) REAR MASTER CYLINDER (MODEL K2/K3/K4) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-10F00

$335.50

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$30.88

3

.BOOT

69691-00A00

$5.22

4

ROD, PUSH

69670-00B21

$33.02

5

NUT

69693-05A00

$1.86

6

YOKE

69692-27A30

$13.59

7

O RING

69686-34200

$2.80

8

CONNECTOR

69672-05A00

$5.47

9

.SCREW This part replaces 02112-74123.

02112-7412A

$2.67

10

BOLT, EXHAUST COVER This part replaces 07120-06163.

07120-0616B

$2.56

11

TANK ASSY, RESERVOIR | Includes Item(s) 12 - 15

69740-10F00

$119.23

12

DIAPHRAGM

59667-49460

$9.36

13

PLATE

59668-41C00

$8.92

14

CAP

59669-41C00

$32.03

15

SCREW

69689-49300

$1.81

16

BOLT This part replaces 01550-06163.

01550-0616A

$2.01

17

HOSE, RESERVOIR TANK

69731-10F00

$18.22

18

CLAMP

09401-13417

$2.31

19

COVER, RESERVOIR TANK

69795-10F00

Unavailable

20

BOLT This part replaces 01550-06103.

01550-0610A

$2.01

21

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$3.82

22

.WASHER This part replaces 08322-01063.

08322-0106B

$2.31

23

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.25

24

HOSE This part replaces 69480-10F10.

69480-10F11

Unavailable

25

WASHER (10X15X1.5)

09161-10009

$1.89

26

UNION This part replaces 09360-10042.

09360-10062

$5.99

27

CLAMP, BRAKE HOSE

69268-10F00

Unavailable

28

CLAMP, BRAKE HOSE

59268-01D10

Unavailable

29

SCREW, REAR SIDE BRKT This part replaces 02162-06123.

02162-0612A

$1.93

30

BOLT This part replaces 01550-06163.

01550-0616A

$2.01
