Description

Price

CALIPER ASSY, REAR | MODEL X/Y !69100-38B50 This part replaces 69100-38B40.

69100-38B50-999

$395.43

CALIPER ASSY, REAR | MODEL K1 !69100-38B50-999 W/69100-38870; Includes Item(s) 1 - 11 This part replaces 69100-38B50.

69100-38B50-999

$395.43

1

PISTON SET This part replaces 69100-38850.

69100-38851

$116.67

2

INSULATOR

69126-10F00

Unavailable

3

SEAL SET, PISTON This part replaces 69100-38830.

69100-38831

$26.23

4

PAD SET | MODEL X/Y This part replaces 69100-38860.

69100-38870

$57.30

4

PAD SET | MODEL K1

69100-38870

$57.30

5

BOLT

59145-16700

$9.97

6

SPRING

59143-16700

$5.30

7

PIN

69141-45000

$4.86

8

.CLIP, PAD PIN

69142-45000

$3.97

9

COVER | MODEL X/Y

59151-24A00

Unavailable

9

COVER | MODEL K1

59151-24A01

$32.30

10

BLEEDER

59121-18410

$7.99

11

CAP

55156-66310

$4.73

12

BOLT This part replaces 07130-10203.

07130-1020B

$5.00

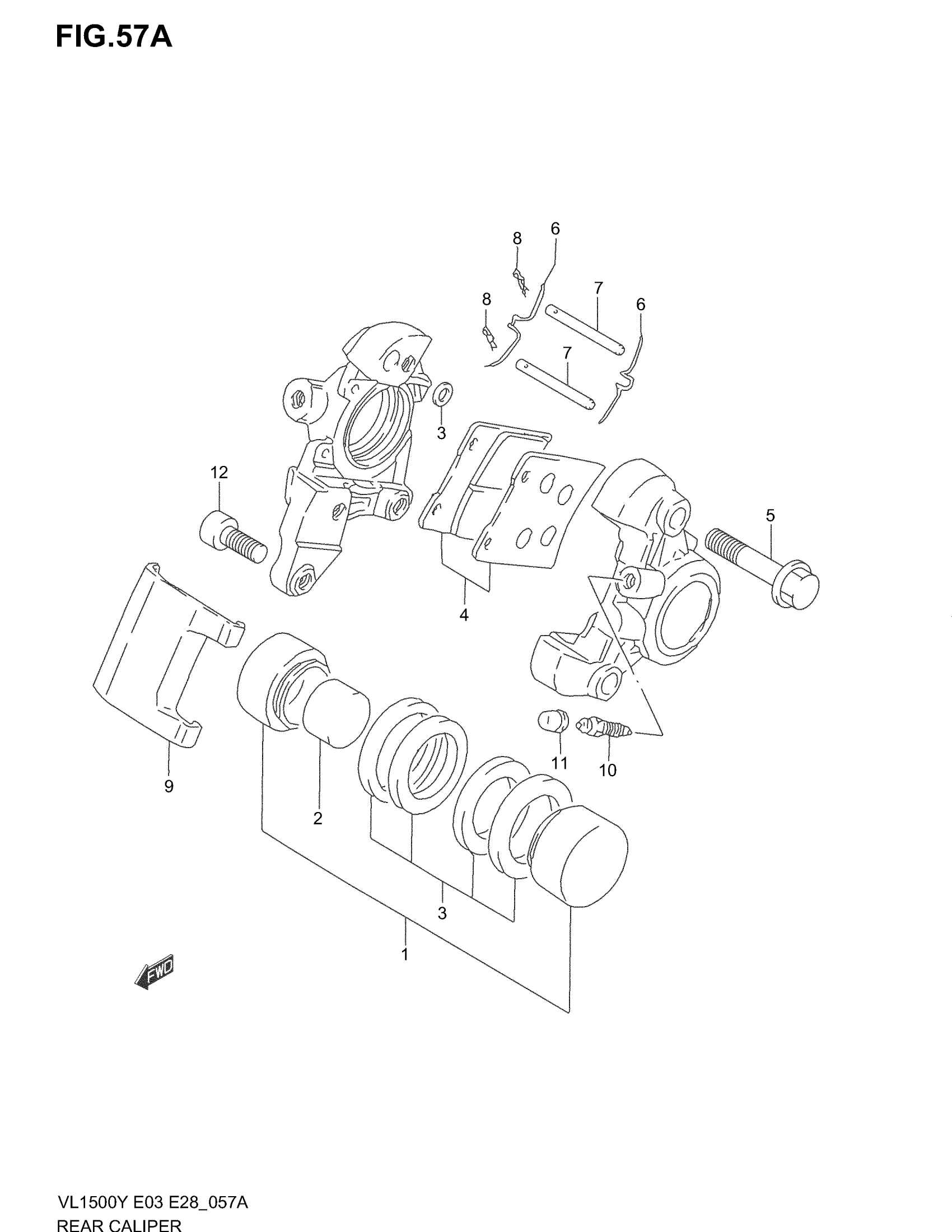

Suzuki VL1500 (2004) REAR CALIPER (MODEL X/Y/K1) Diagram
