2020 Kawasaki Versys-X 300 ABS Water Pipe Diagram

← All diagrams

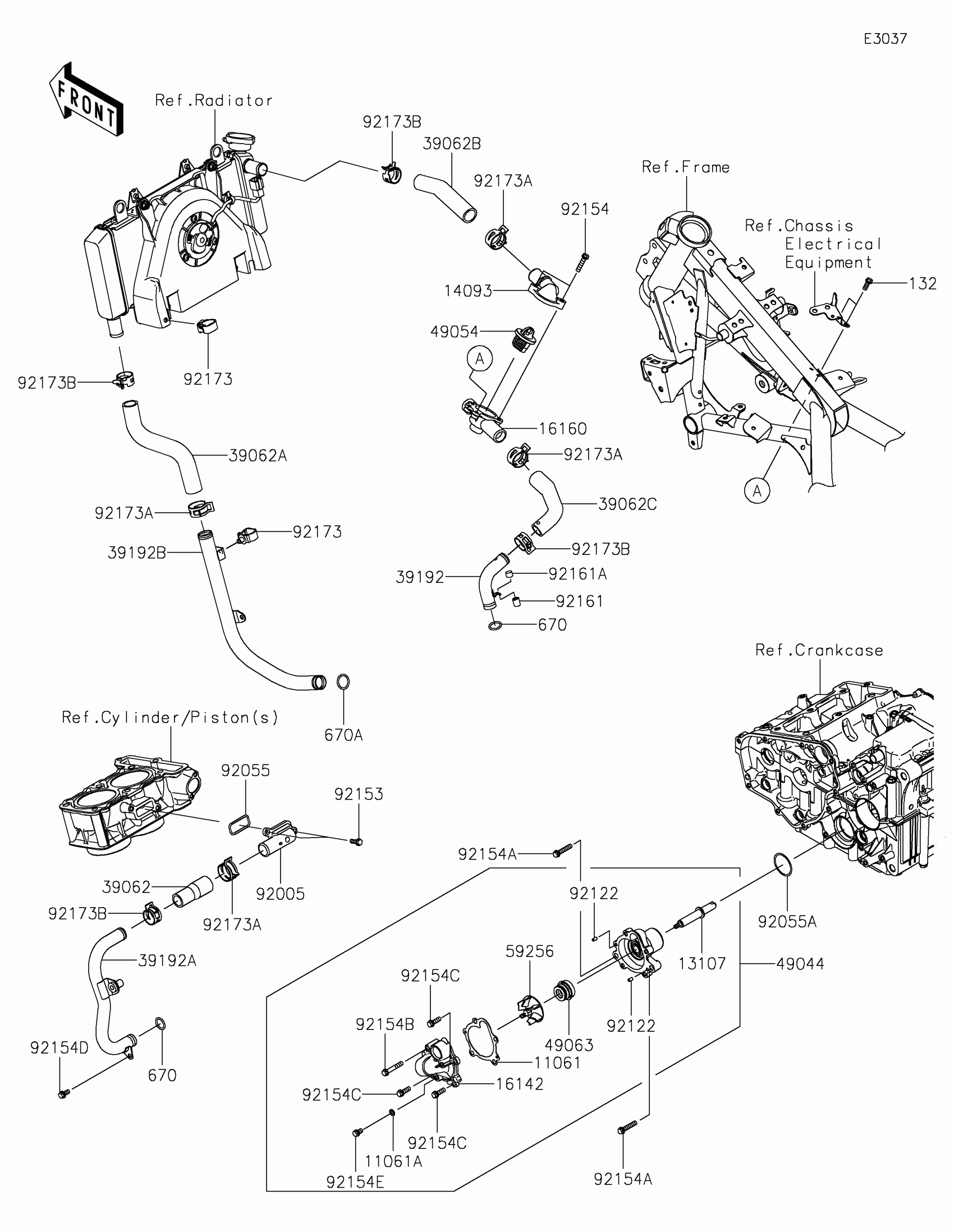

Find the part on the Water Pipe diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Versys-X 300 ABS Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET

11061-0795

1

$9.23

In stock

11061A

GASKET,DRAIN

11061-0875

1

$4.44

In stock

13107

SHAFT

13107-0742

1

$42.78

In stock

132

1

$1.31

In stock

14093

COVER,THERMOSTAT

14093-0224

1

$66.68

In stock

16142

COVER-PUMP

16142-0708

1

$46.27

In stock

16160

BODY,THERMO.,LWR

16160-0762

1

$37.40

In stock

39062

1

$4.66

In stock

39062A

1

$12.15

In stock

39062B

1

$10.27

In stock

39062C

1

$10.75

In stock

39192

1

$38.68

In stock

39192A

1

$33.09

In stock

39192B

PIPE-WATER,RAD.-W/P

39192-0604

1

$29.90

In stock

49044

PUMP-WATER

49044-0015

1

$279.76

In stock

49054

THERMOSTAT

49054-1056

1

$51.04

In stock

49063

SEAL-MECHANICAL

49063-1055

1

$18.61

In stock

59256

IMPELLER

59256-0554

1

$22.05

In stock

670

O RING,16MM

670B2016

1

$1.20

In stock

670A

O RING,18MM

670B2018

1

$1.25

In stock

92005

FITTING,CYLINDER

92005-0890

1
Out of stock

92055

RING-O,2.4MM

92055-0735

1

$3.27

In stock

92055A

RING-O,34.4X3.1

92055-0736

1

$2.19

In stock

92122

ROLLER,4X8

92122-0557

1

$1.10

In stock

92153

BOLT,6X16

92153-0695

1
Out of stock

92154

BOLT,FLANGED,6X25

92154-1212

1

$2.44

In stock

92154A

BOLT,FLANGED,6X30

92154-1773

1

$1.10

In stock

92154B

BOLT,FLANGED,6X35

92154-1779

1

$1.47

In stock

92154C

1

$1.10

In stock

92154D

BOLT,FLANGED,6X12

92154-2351

1

$1.66

In stock

92154E

1

$1.27

In stock

92161

DAMPER,10X11.5

92161-0690

1

$3.27

In stock

92161A

DAMPER,10X7.5

92161-0691

1

$1.20

In stock

92173

CLAMP

92173-0861

1

$2.44

In stock

92173A

CLAMP

92173-1416

1

$3.15

In stock

92173B

CLAMP

92173-1417

1

$2.25

In stock
