2020 Kawasaki Versys-X 300 ABS Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

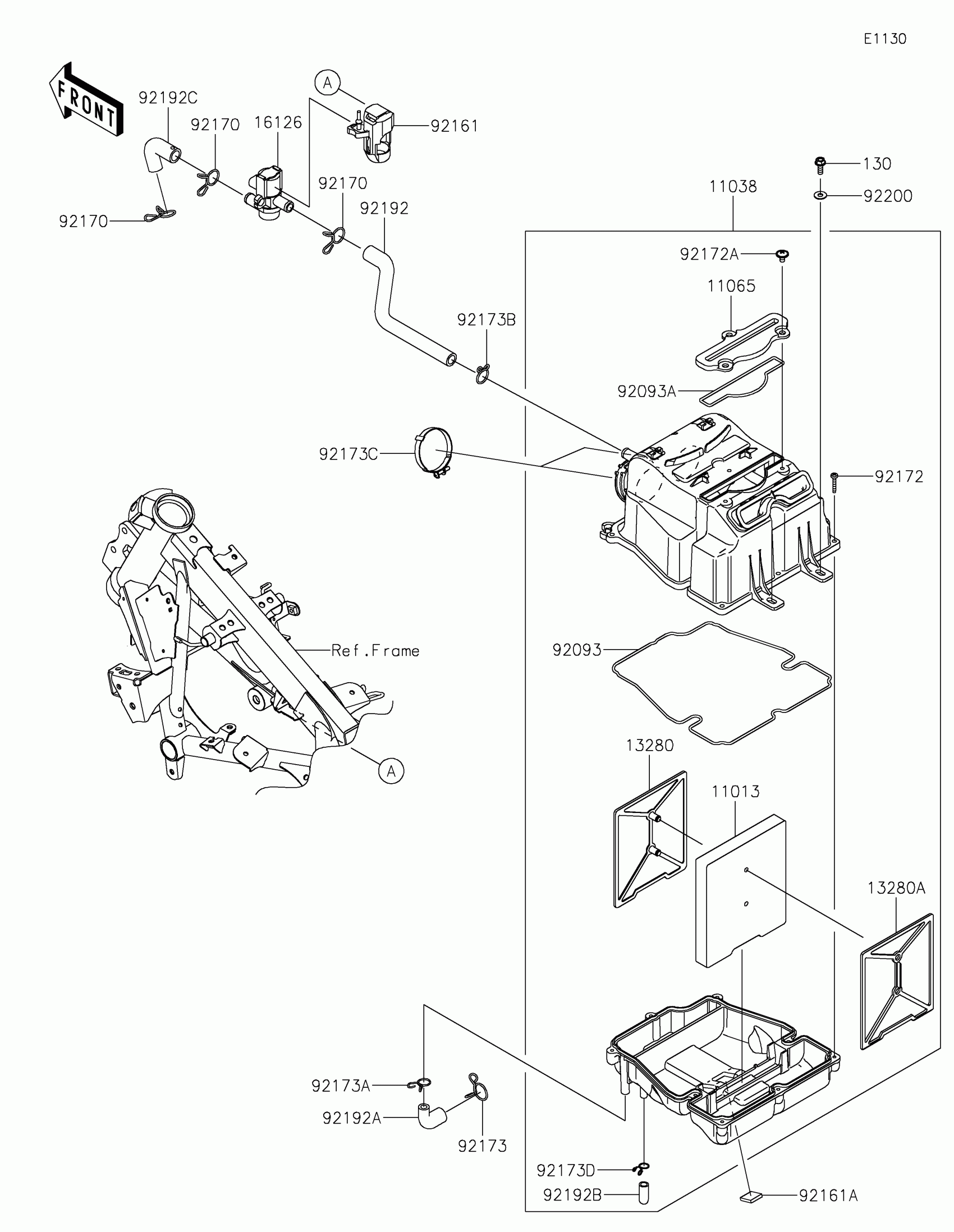

2020 Kawasaki Versys-X 300 ABS Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11013

ELEMENT-AIR FILTER

11013-0762

1
Out of stock

11038

CASE-ASSY-AIR FILTER

11038-0049

1
Out of stock

11065

CAP

11065-0967

1
Out of stock

130

BOLT-FLANGED,6X16

130BA0616

1
Out of stock

13280

HOLDER,AIR FILTER ELEMENT

13280-0883

1
Out of stock

13280A

HOLDER,AIR FILTER ELEMENT

13280-0884

1
Out of stock

16126

VALVE,AIR CUT

16126-0744

1
Out of stock

92093

SEAL,CASE

92093-0698

1
Out of stock

92093A

SEAL,CAP

92093-0699

1
Out of stock

92161

DAMPER,ACV

92161-1424

1
Out of stock

92161A

DAMPER,20X20X4

92161-1992

1
Out of stock

92170

CLAMP

92170-1017

1
Out of stock

92172

SCREW,TAPPING,5X25

92172-0803

1
Out of stock

92172A

SCREW,6X10

92172-1144

1
Out of stock

92173

CLAMP,20MM

92173-0190

1
Out of stock

92173A

CLAMP,14MM

92173-0192

1
Out of stock

92173B

CLAMP,18MM

92173-0193

1
Out of stock

92173C

CLAMP

92173-1653

1
Out of stock

92173D

CLAMP

92173-1714

1
Out of stock

92192

TUBE,VALVE-AIR FILTER

92192-1727

1
Out of stock

92192A

TUBE,BREATHER

92192-1728

1
Out of stock

92192B

TUBE,DRAIN CLEAN

92192-1744

1
Out of stock

92192C

TUBE,VALVE-CYLINDER HRAD

92192-1763

1
Out of stock

92200

WASHER,6.5X16X1.0

92200-0796

1
Out of stock
