2020 Kawasaki Versys-X 300 ABS Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

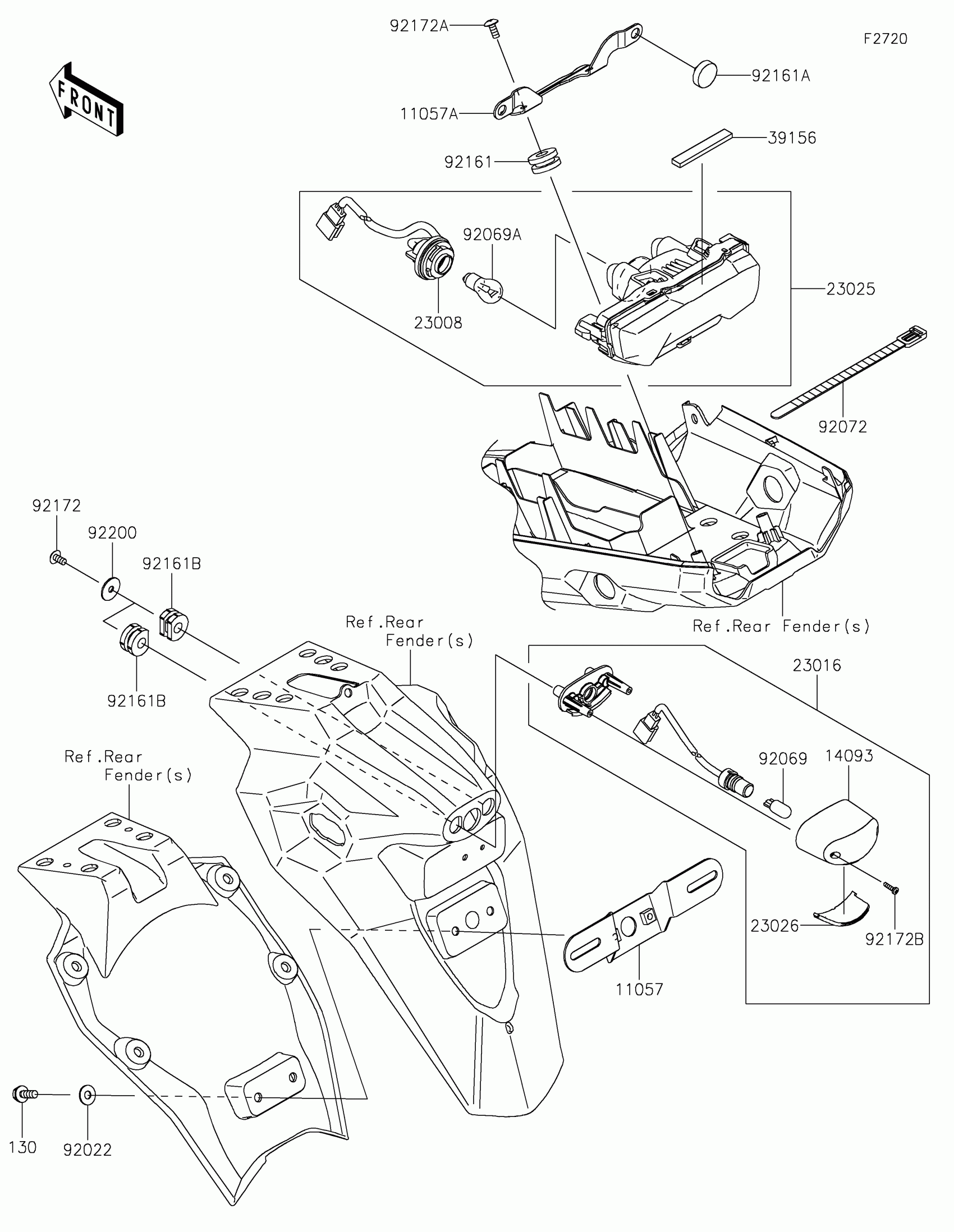

2020 Kawasaki Versys-X 300 ABS Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,LICENSE PLATE

11057-1046

1
Out of stock

11057A

BRACKET

11057-1351

1
Out of stock

130

BOLT-FLANGED,6X16

130BA0616

1
Out of stock

14093

COVER,LICENSE LAMP

14093-0525

1
Out of stock

23008

SOCKET-ASSY

23008-0182

1
Out of stock

23016

LAMP-ASSY,LICENSE

23016-0600

1
Out of stock

23025

LAMP-TAIL

23025-0363

1
Out of stock

23026

LENS,LICENSE LAMP

23026-0025

1
Out of stock

39156

PAD,9X60X4

39156-0820

1
Out of stock

92022

WASHER,6.5X16X1.0

92022-1093

1
Out of stock

92069

BULB,12V 5W

92069-1016

1
Out of stock

92069A

BULB,12V 21/5W

92069-1084

1
Out of stock

92072

BAND,L=140

92072-1293

1
Out of stock

92161

DAMPER

92161-0163

1
Out of stock

92161A

DAMPER

92161-0336

1
Out of stock

92161B

DAMPER

92161-0776

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0427

1
Out of stock

92172A

SCREW,5X12

92172-0821

1
Out of stock

92172B

SCREW,4X12

92172-0904

1
Out of stock

92200

WASHER,5.5X20X1.2

92200-0284

1
Out of stock
