2020 Kawasaki Versys-X 300 ABS Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

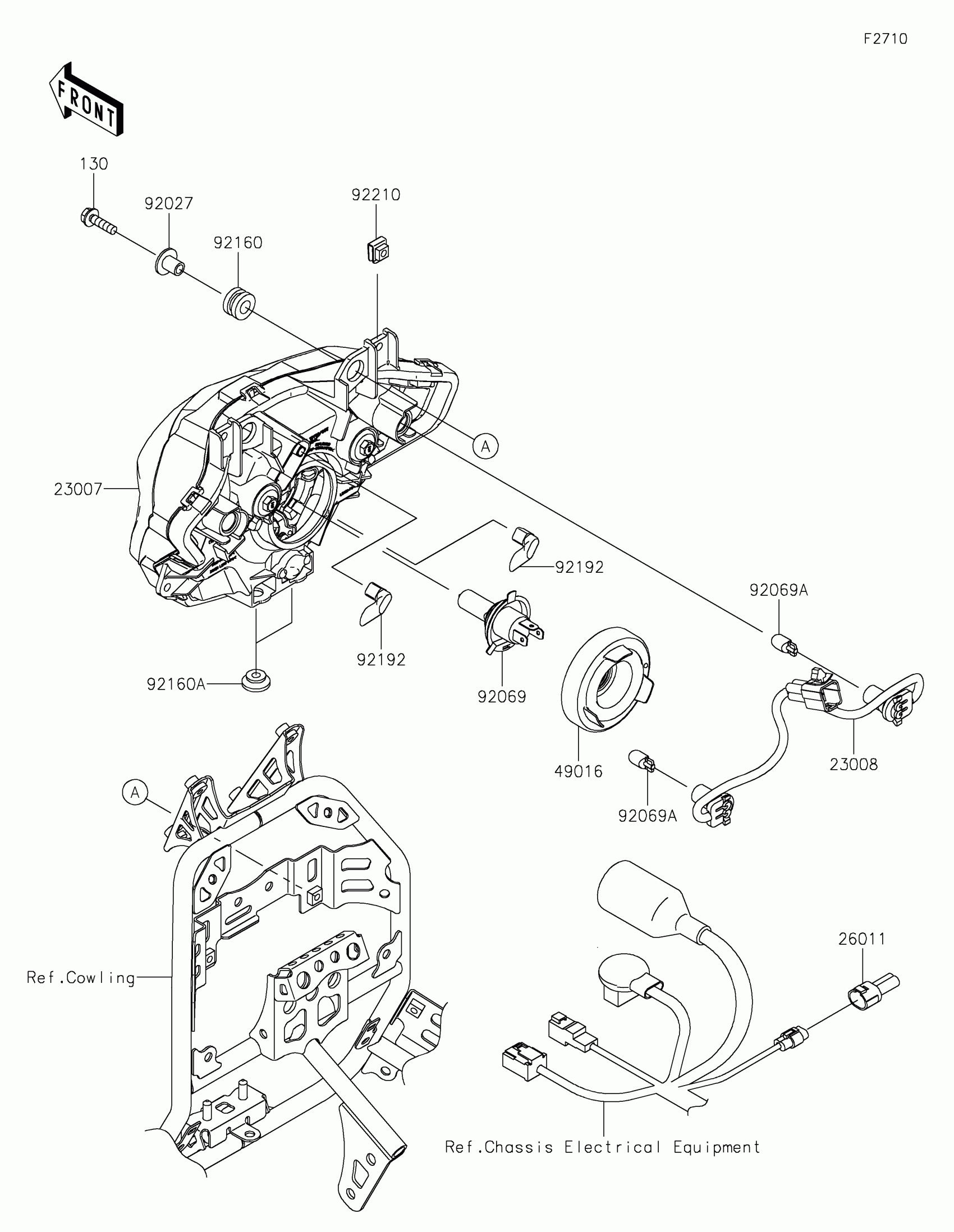

2020 Kawasaki Versys-X 300 ABS Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

23007

LENS-COMP,HEAD LAMP

23007-0207

1

$407.49

In stock

23008

SOCKET-ASSY

23008-0177

1

$84.48

In stock

26011

WIRE-LEAD

26011-0967

1

$10.36

In stock

49016

COVER-SEAL

49016-0627

1

$13.63

In stock

92027

COLLAR,6.5X10X14.1

92027-1183

1

$4.37

In stock

92069

BULB,12V 60/55W,H4

92069-0050

1

$14.37

In stock

92069A

BULB,12V 5W

92069-1016

1

$5.16

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92160A

DAMPER

92160-1613

1

$2.97

In stock

92192

TUBE,BREATHER

92192-1528

1
Out of stock

92210

NUT,5MM

92210-0776

1
Out of stock
