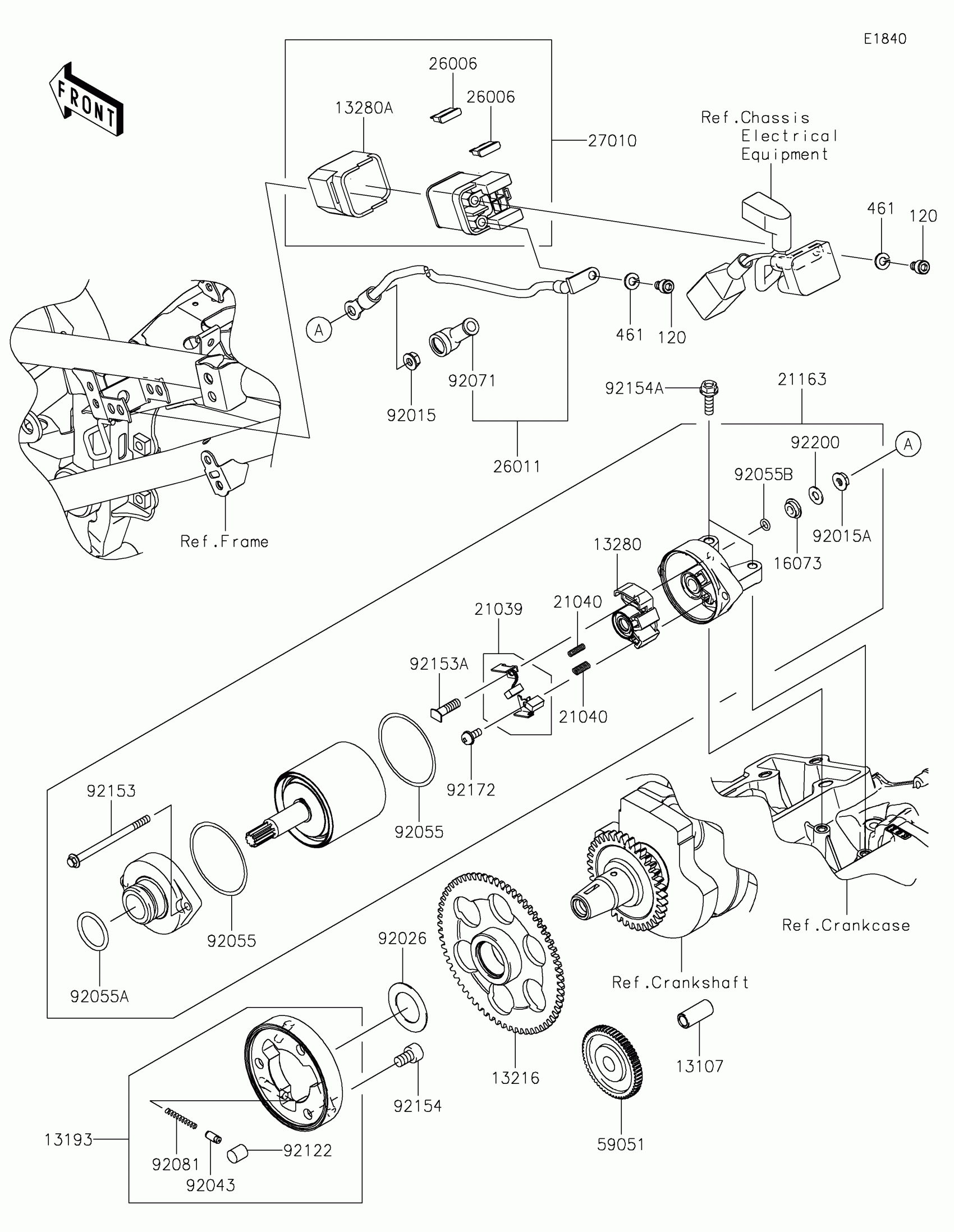

Find the part on the Starter Motor diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Versys-X 300 ABS Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X10

120CB0610

1
Out of stock

13107

SHAFT,7.8X12X26.5

13107-0743

1
Out of stock

13193

CLUTCH-ASSY-ONEWAY

13193-1002

1
Out of stock

13216

GEAR-COMP,ONEWAY CLUTCH,65T

13216-0880

1
Out of stock

13280

HOLDER

13280-0261

1
Out of stock

13280A

HOLDER

13280-0301

1
Out of stock

16073

INSULATOR

16073-0053

1
Out of stock

21039

BRUSH,CARBON SET

21039-0005

1
Out of stock

21040

SPRING-BRUSH

21040-0003

1
Out of stock

21163

STARTER-ELECTRIC

21163-0717

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1006

1
Out of stock

26011

WIRE-LEAD,STARTER

26011-0958

1
Out of stock

27010

SWITCH,MAGNETIC

27010-0099

1
Out of stock

461

WASHER-SPRING,6MM

461DA0600

1
Out of stock

59051

GEAR-SPUR,IDLER

59051-0722

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92026

SPACER,25.2X40X1.0

92026-0846

1
Out of stock

92043

PIN

92043-132

1
Out of stock

92055

RING-O

92055-0136

1
Out of stock

92055A

RING-O

92055-1276

1
Out of stock

92055B

RING-O,4.5X2.0

92055-1370

1
Out of stock

92071

GROMMET

92071-0705

1
Out of stock

92081

SPRING,COIL

92081-159

1
Out of stock

92122

ROLLER

92122-006

1
Out of stock

92153

BOLT,SET

92153-1851

1
Out of stock

92153A

BOLT

92153-1866

1
Out of stock

92154

BOLT,SOCKET,8X13

92154-0175

1
Out of stock

92154A

BOLT,FLANGED,6X20

92154-0786

1
Out of stock

92172

SCREW

92172-0334

1
Out of stock

92200

WASHER

92200-0386

1
Out of stock
