2020 Kawasaki Versys-X 300 ABS Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

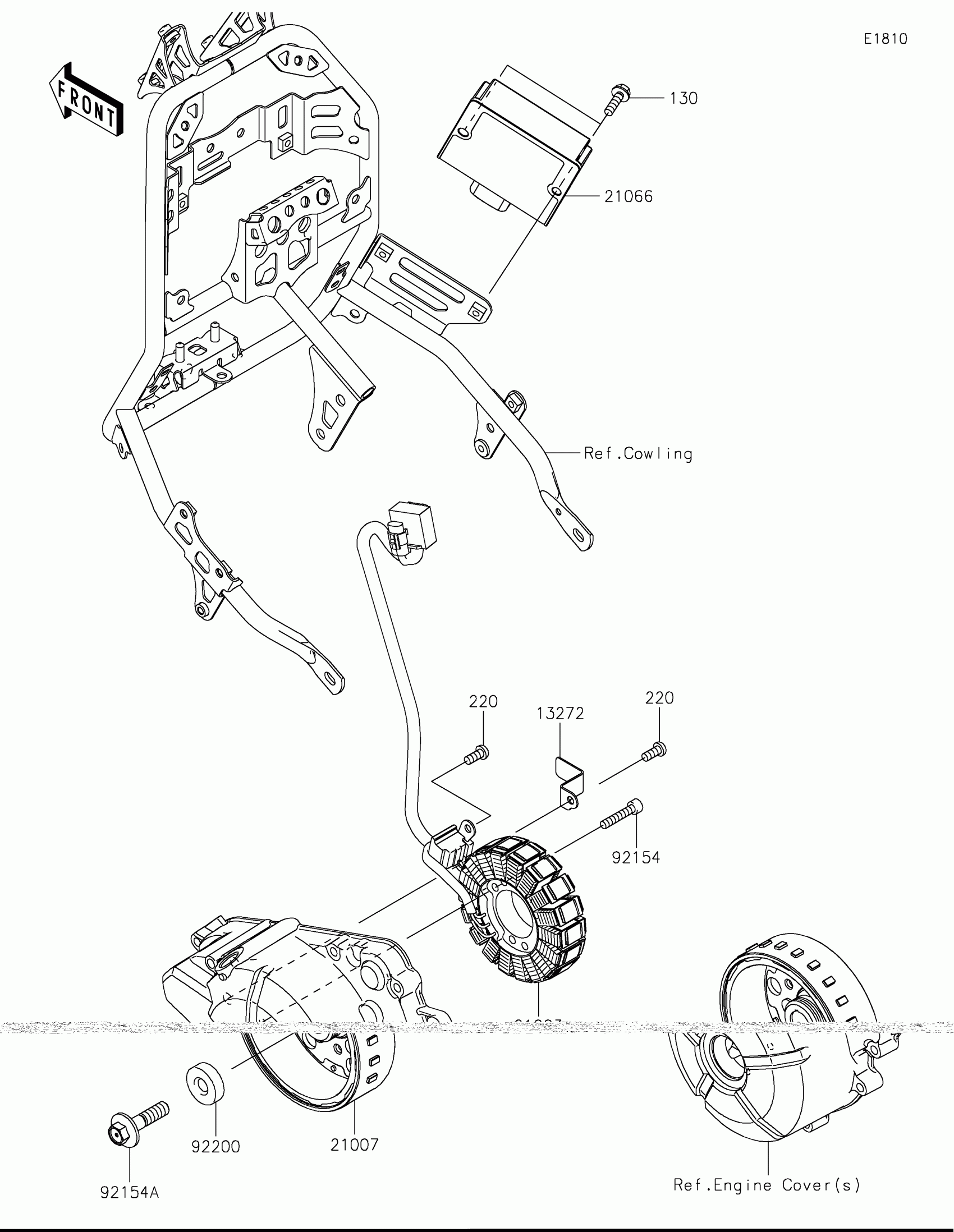

2020 Kawasaki Versys-X 300 ABS Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock

13272

PLATE

13272-1257

1

$1.44

In stock

21003

STATOR

21003-0175

1

$518.75

In stock

21007

ROTOR

21007-0569

1

$555.30

In stock

21066

REGULATOR-VOLTAGE

21066-0753

1

$214.22

In stock

220

1

$1.32

In stock

92154

BOLT,SOCKET,6X30

92154-0962

1

$1.10

In stock

92154A

BOLT,FLANGED,10X40

92154-2341

1

$20.00

In stock

92200

WASHER,10X30X9

92200-0790

1
Out of stock
