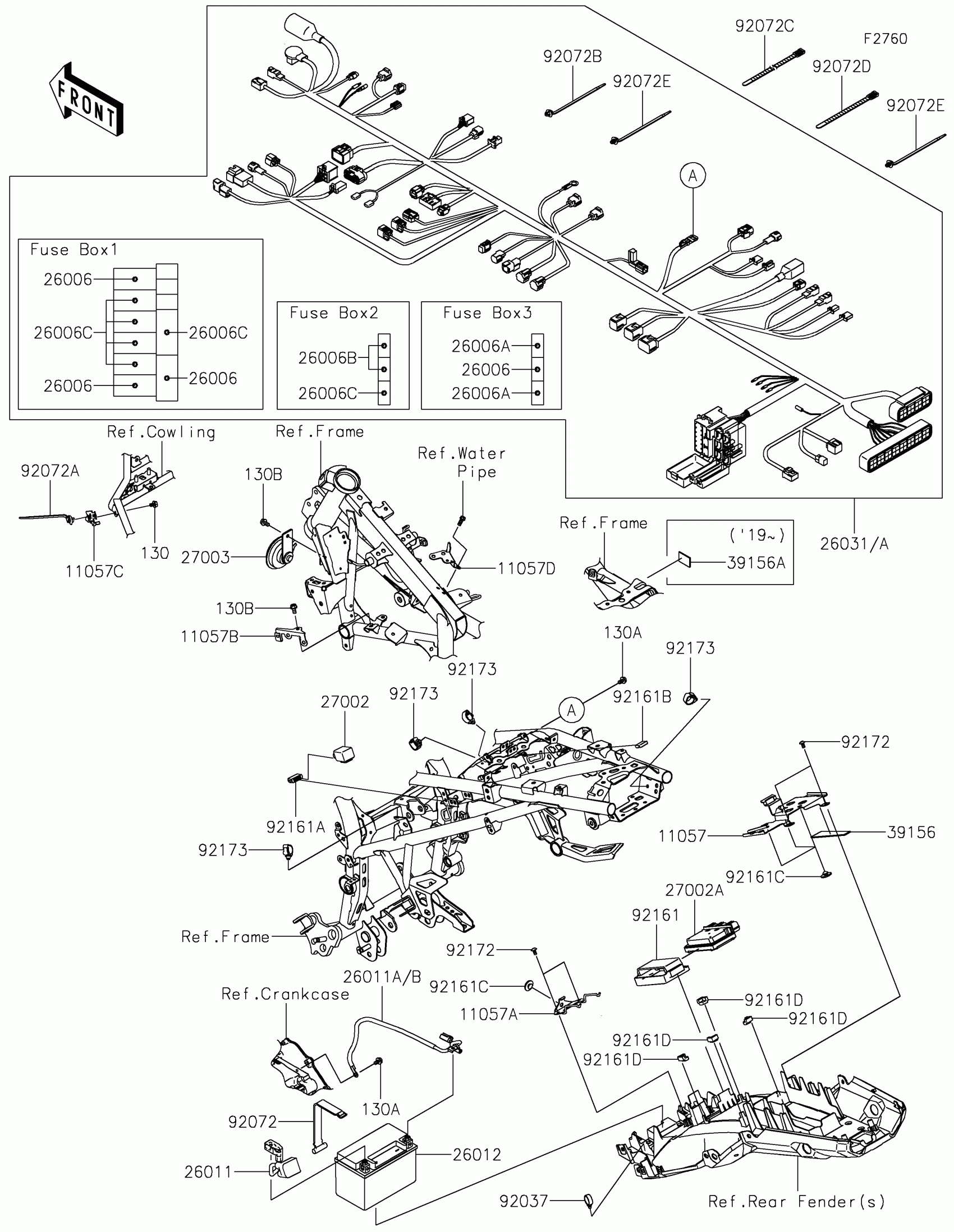

Find the part on the Chassis Electrical Equipment diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Versys-X 300 ABS Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,ECU,UPP

11057-0558

1
Out of stock

11057A

BRACKET,RR FENDER

11057-0559

1
Out of stock

11057B

BRACKET,FRM PIPE,LH

11057-0566

1
Out of stock

11057C

BRACKET,RELAY

11057-0703

1
Out of stock

11057D

BRACKET,FRM PIPE,RH

11057-1220

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

1
Out of stock

26006B

FUSE,MINI BLADE,5A,TAN

26006-1077

1
Out of stock

26006C

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-0959

1
Out of stock

26011B

WIRE-LEAD,BATTERY(-)

26011-1886

1
Out of stock

26012

BATTERY,FTX9-BS,12V 8AH

26012-0608

1
Out of stock

26031

HARNESS,MAIN

26031-2372

1
Out of stock

26031A

HARNESS,MAIN

26031-2373

1
Out of stock

27002

RELAY-ASSY,SIGNAL LAMP

27002-0006

1
Out of stock

27002A

RELAY-ASSY

27002-0028

1
Out of stock

27003

HORN

27003-0124

1
Out of stock

39156

PAD,28X112X2

39156-2145

1
Out of stock

39156A

PAD,31X23X2

39156-2462

1
Out of stock

92037

CLAMP,HOSE

92037-1827

1
Out of stock

92072

BAND

92072-0749

1
Out of stock

92072A

BAND

92072-0807

1
Out of stock

92072B

BAND,POP-2763

92072-0813

1
Out of stock

92072C

BAND,L=250

92072-1237

1
Out of stock

92072D

BAND,L=140

92072-1293

1
Out of stock

92072E

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92072E

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92161

DAMPER,RELAY BOX

92161-0203

1
Out of stock

92161A

DAMPER,15X25X8.5

92161-1443

1
Out of stock

92161B

DAMPER,15X21X5.5

92161-1472

1
Out of stock

92161C

DAMPER,8X22X10

92161-1685

1
Out of stock

92161D

DAMPER,ECU CORNER

92161-1909

1
Out of stock

92172

SCREW,TAPPING,5X10

92172-0262

1
Out of stock

92173

CLAMP,HOLDER CLIP

92173-0868

1
Out of stock

130

BOLT-FLANGED,6X8

130BA0608

1
Out of stock

130A

BOLT-FLANGED,6X10

130BA0610

1
Out of stock

130B

BOLT-FLANGED,6X12

130BA0612

1
Out of stock
