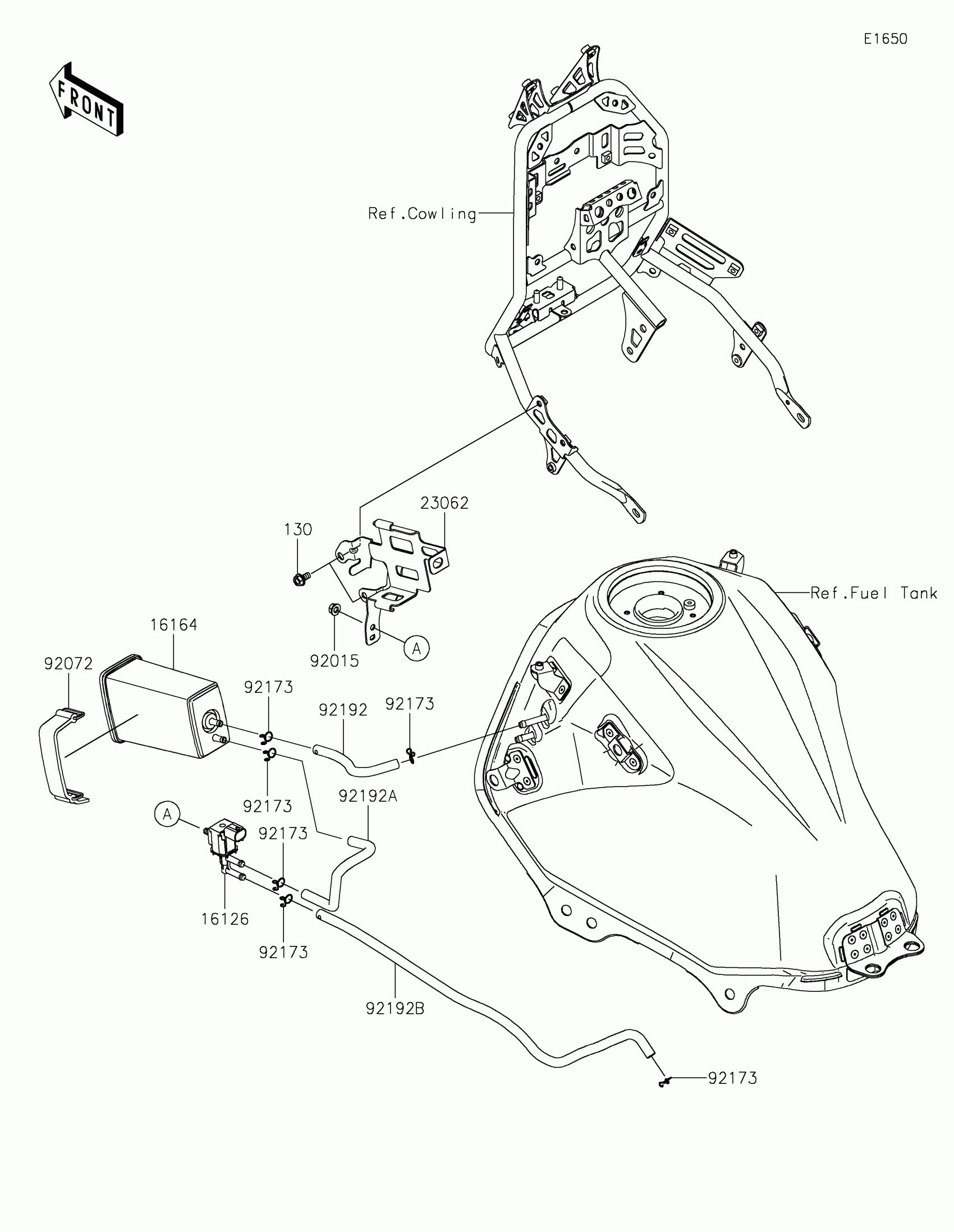

Kawasaki Versys-X 300 ABS Fuel Evaporative System(CA) Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130BA0612

$1.25

16126

VALVE,SOLENOID

16126-0705

$109.25

16164

CANISTER

16164-0012

$152.89

23062

BRACKET-COMP,CANISTER

23062-0910

$21.85

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92072

BAND,L=90

92072-0135

$13.62

92173

CLAMP

92173-0050

$5.75

92192

TUBE,TANK-CANISTER

92192-1729

$25.24

92192A

TUBE,CANISTER-VALVE

92192-1730

$37.15

92192B

TUBE,VALVE-THROTTLE BODY

92192-1731

$48.86
