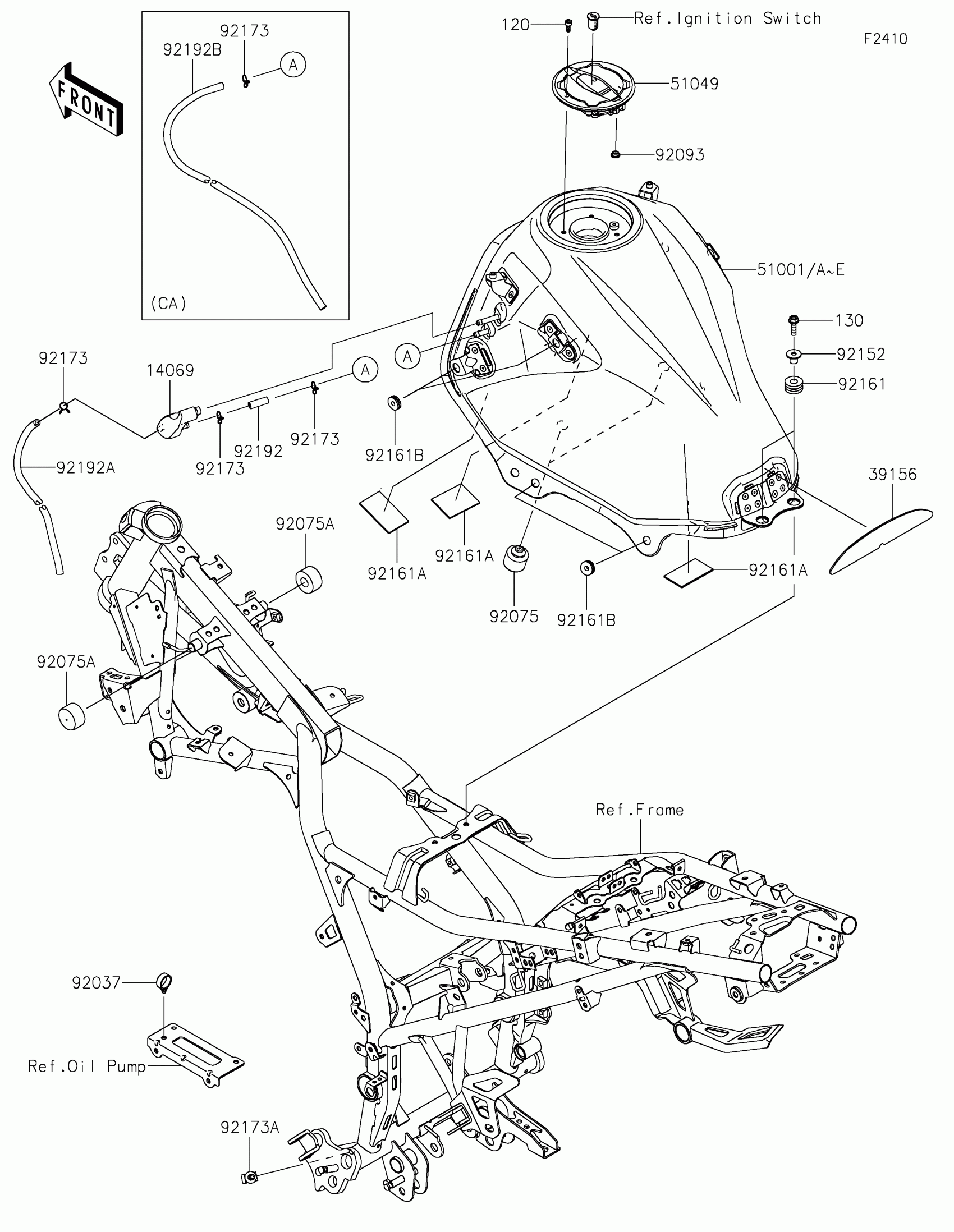

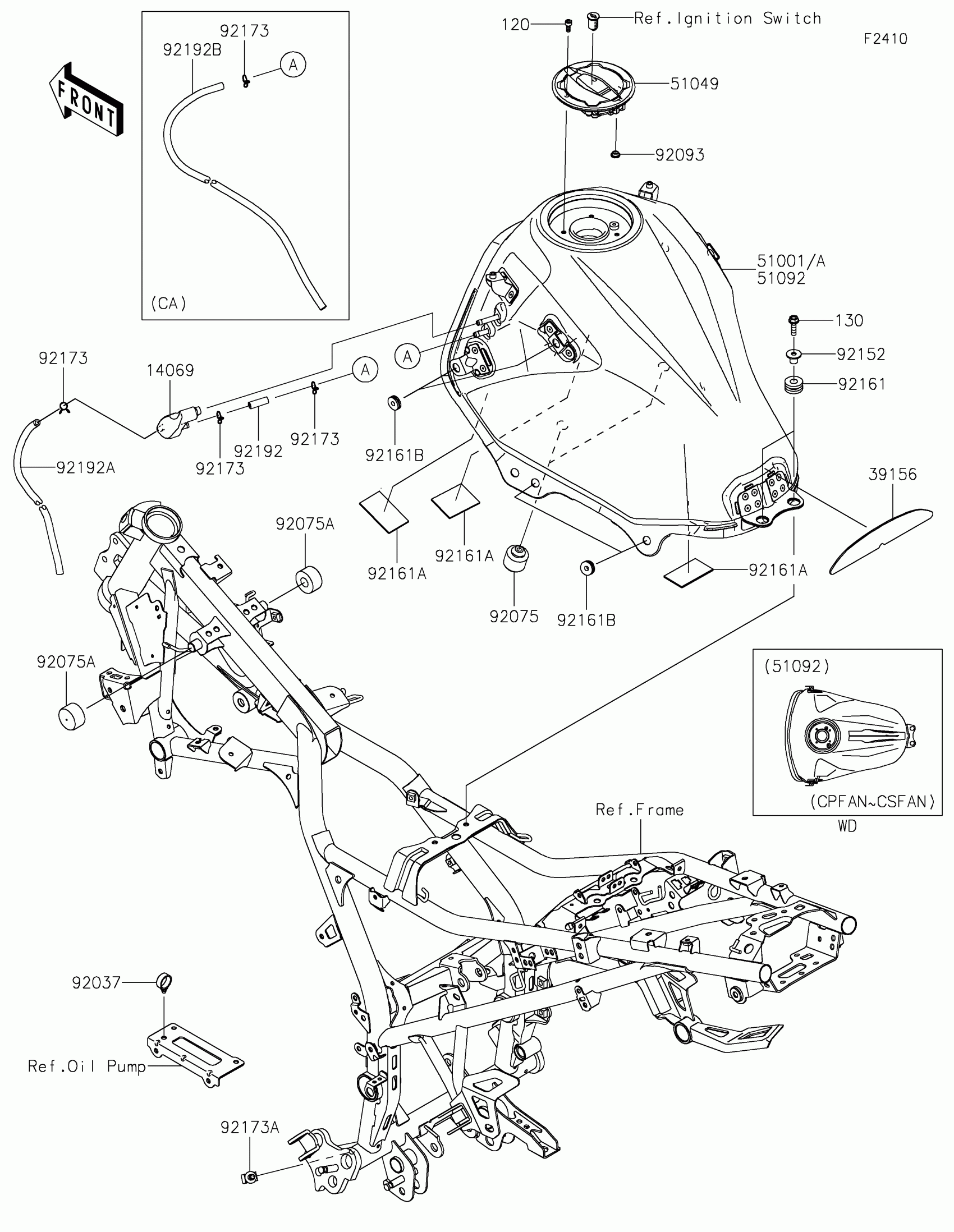

Kawasaki Versys-X 300 ABS Fuel Tank Diagram

Description

Price

120

BOLT-SOCKET,5X12

120CA0512

$1.19

130

BOLT-FLANGED,6X22

130BA0622

$1.00

14069

BREATHER

14069-0011

$11.37

39156

PAD,34X210X2

39156-2210

$5.32

51001A

TANK-COMP-FUEL,M.M.GRAY

51001-0843-25X

$902.36

51001D

TANK-COMP-FUEL,P.B.WHITE

51001-0843-54X

$743.79

51049

CAP-TANK

51049-0735

$139.17

92037

CLAMP,HOSE

92037-1827

$5.69

92075

DAMPER

92075-1002

$5.42

92075A

DAMPER,FUEL TANK,FR

92075-1115

$4.93

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92152

COLLAR,6.5X10X13.1

92152-0332

$4.95

92161

DAMPER,10X24X12

92161-0927

$4.53

92161A

DAMPER

92161-1883

$1.27

92161B

DAMPER,6X19X5.6

92161-1911

$0.76

92173

CLAMP

92173-0049

$3.39

92173

CLAMP

92173-0049

$3.39

92173A

CLAMP,12MM DIA.

92173-0736

$3.85

92192

TUBE,5X9X26

92192-0910

$2.17

92192A

TUBE,5X9X1040

92192-1732

$16.31

92192B

TUBE,5X9X1060

92192-1733

$22.68
