2010 Kawasaki Versys® Seat Cover Diagram

← All diagrams

Find the part on the Seat Cover diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

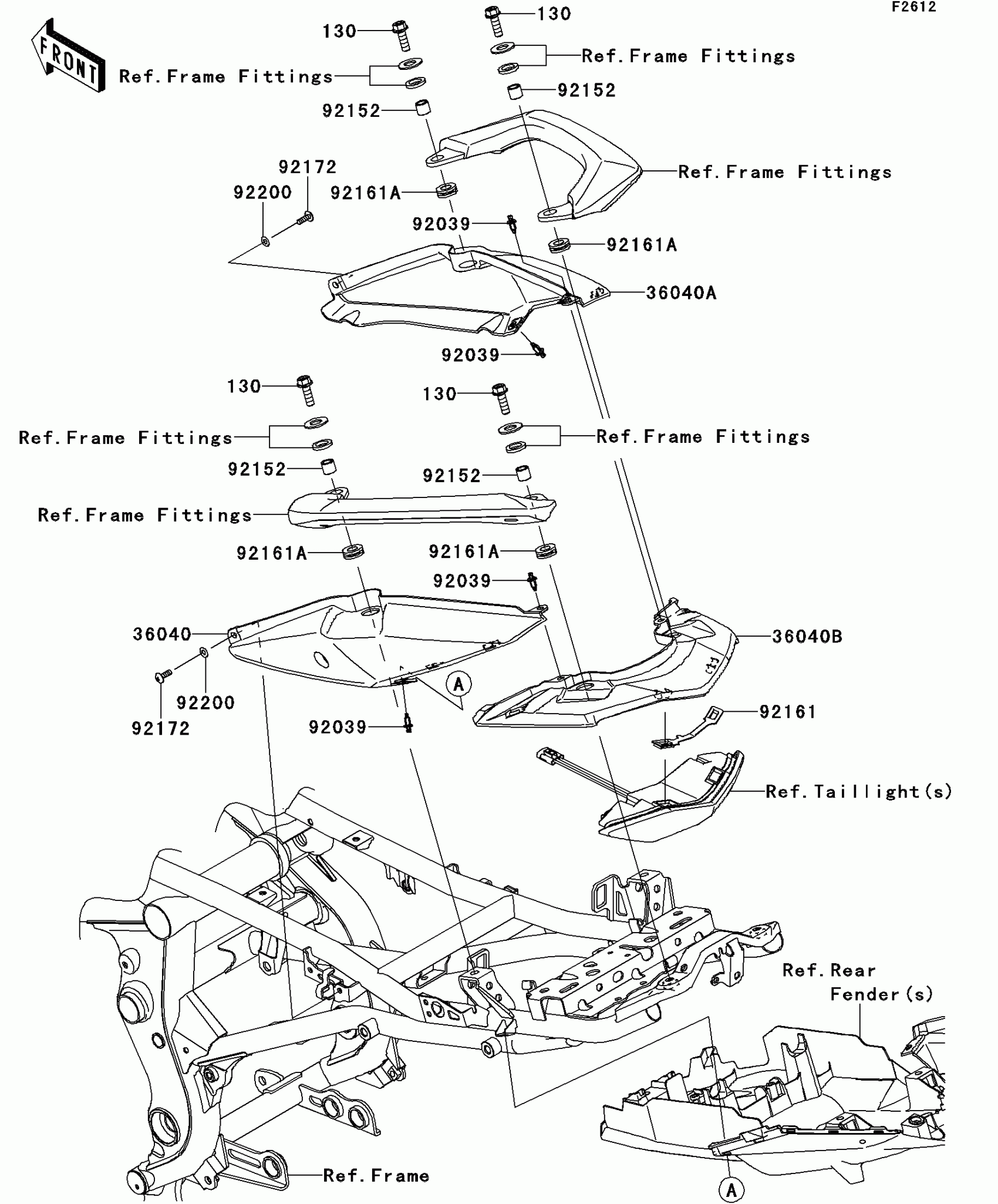

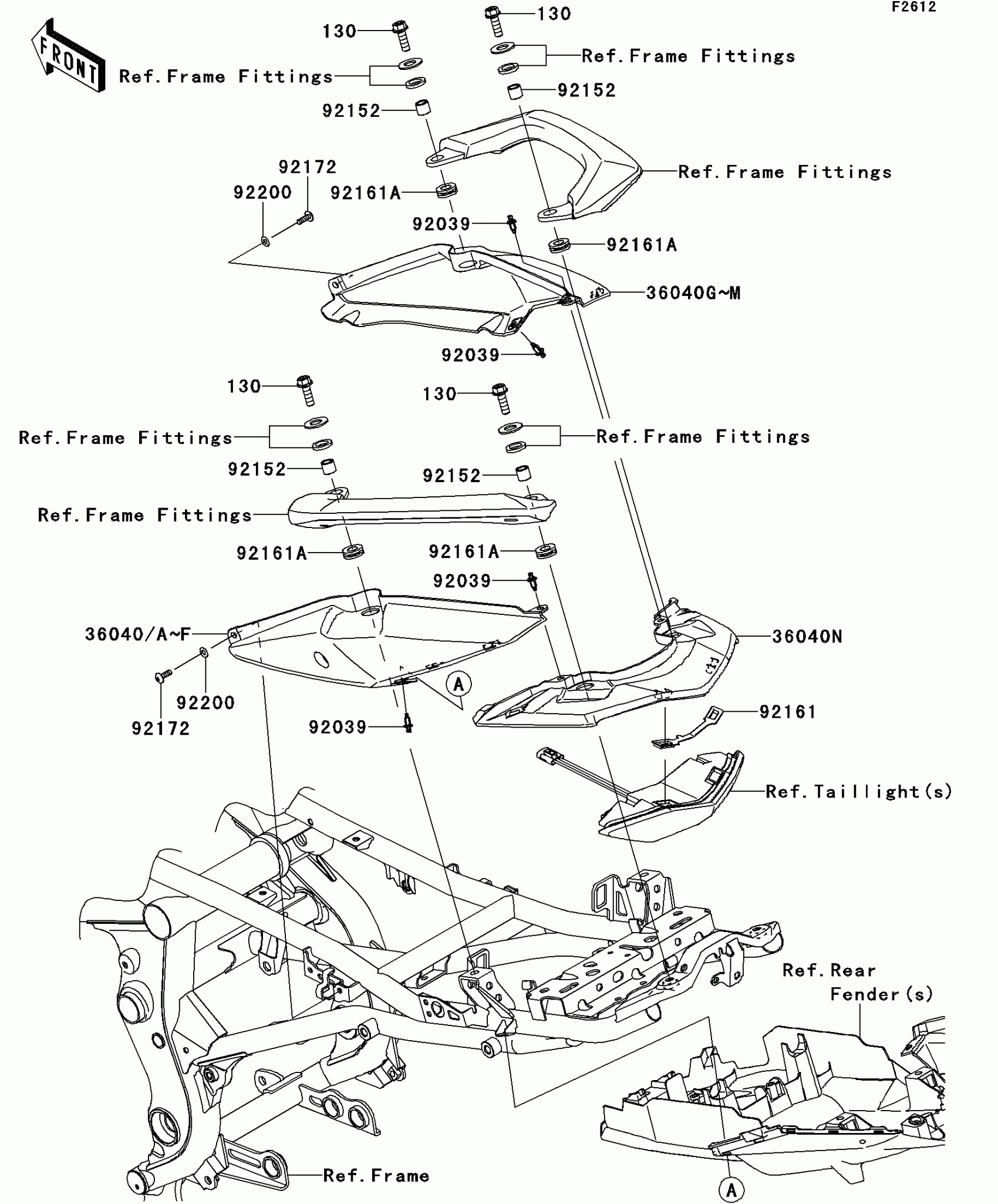

2010 Kawasaki Versys® Seat Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36040

COVER-TAIL,LH,M.S.BLACK

36040-0096-660

1

$80.44

In stock

36040A

COVER-TAIL,RH,M.S.BLACK

36040-0097-660

1

$80.44

In stock

36040B

COVER-TAIL,CNT

36040-0108

1

$53.56

In stock

92039

RIVET

92039-0023

1

$2.42

In stock

92152

1

$8.85

In stock

92161

DAMPER,TAIL LAMP

92161-0808

1

$4.20

In stock

92161A

DAMPER

92161-0868

1

$3.29

In stock

92172

SCREW,5X16

92172-0322

1

$1.81

In stock

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

1
Out of stock

130

BOLT-FLANGED,8X30

130CA0830

1

$1.00

In stock
