2010 Kawasaki Versys® Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

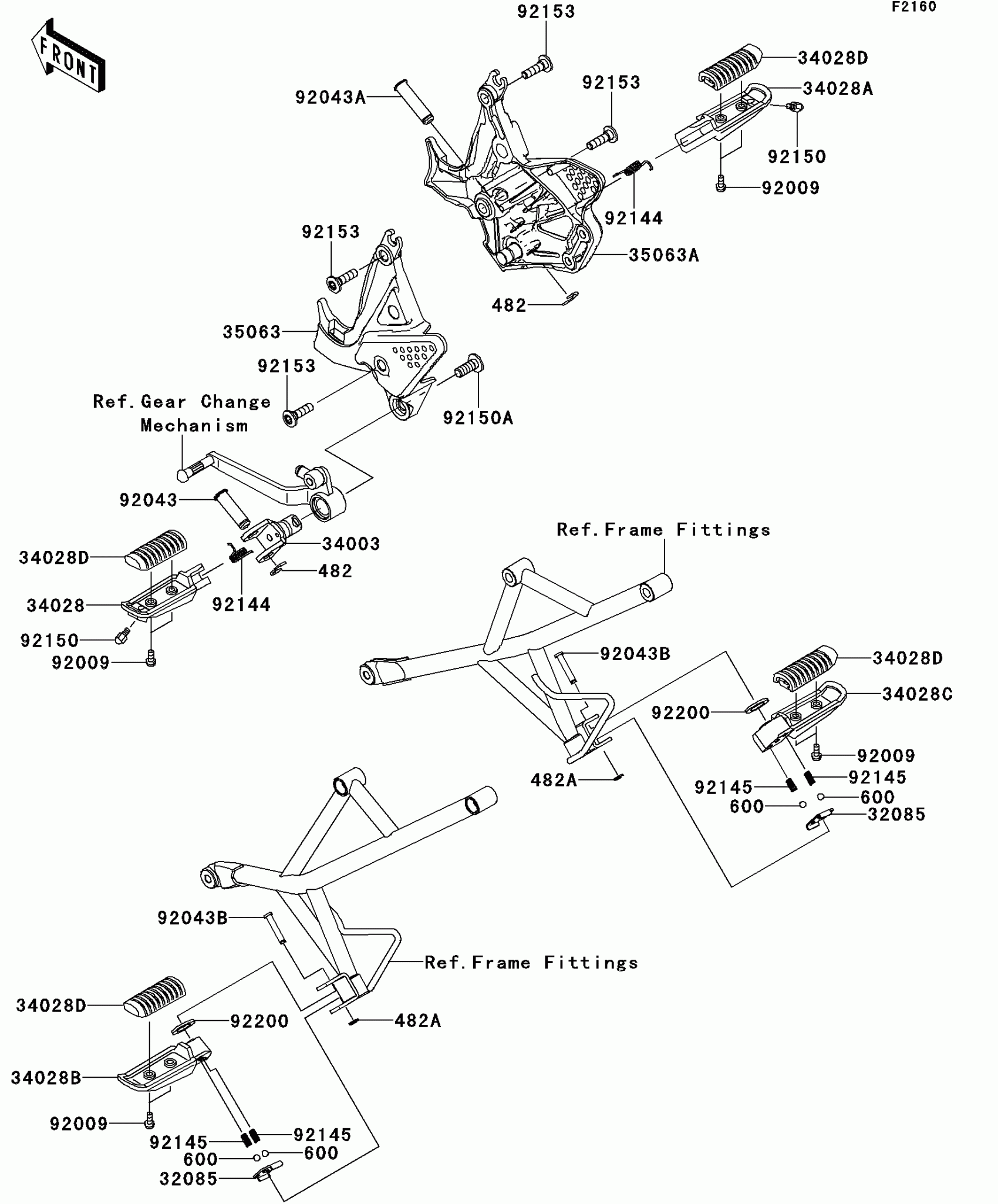

2010 Kawasaki Versys® Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32085

STOPPER,REAR STEP

32085-0047

1

$4.42

In stock

34003

HOLDER-STEP,FR,LH

34003-1474

1

$46.99

In stock

34028

STEP,FR,LH

34028-0127

1

$53.69

In stock

34028A

STEP,FR,RH

34028-0128

1

$47.62

In stock

34028B

STEP,RR,LH

34028-0129

1
Out of stock

34028C

STEP,RR,RH

34028-0130

1
Out of stock

34028D

STEP,RUBBER

34028-0133

1

$11.74

In stock

35063

STAY,STEP,FR,LH,P.SILVER

35063-0310-458

1
Out of stock

35063A

STAY,STEP,FR,RH,P.SILVER

35063-0401-458

1
Out of stock

92009

SCREW,5X14

92009-1404

1
Out of stock

92043

PIN,12X37

92043-0150

1

$10.85

In stock

92043A

PIN,12X42.5

92043-1145

1

$9.27

In stock

92043B

PIN,6X34

92043-1271

1

$4.85

In stock

92144

SPRING,STEP RETURN

92144-1567

1

$5.15

In stock

92145

SPRING

92145-1319

1

$1.54

In stock

92150

BOLT,BANK SENSOR

92150-1114

1

$10.93

In stock

92150A

BOLT,SOCKET,10X25

92150-1268

1

$4.93

In stock

92153

BOLT,SOCKET,8X30

92153-1630

1

$2.15

In stock

92200

WASHER,16X26X2.3

92200-0043

1
Out of stock

482

1

$0.98

In stock

482A

CIRCLIP-TYPE-E

482EA5000

1

$1.20

In stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock
