2010 Kawasaki Versys® Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

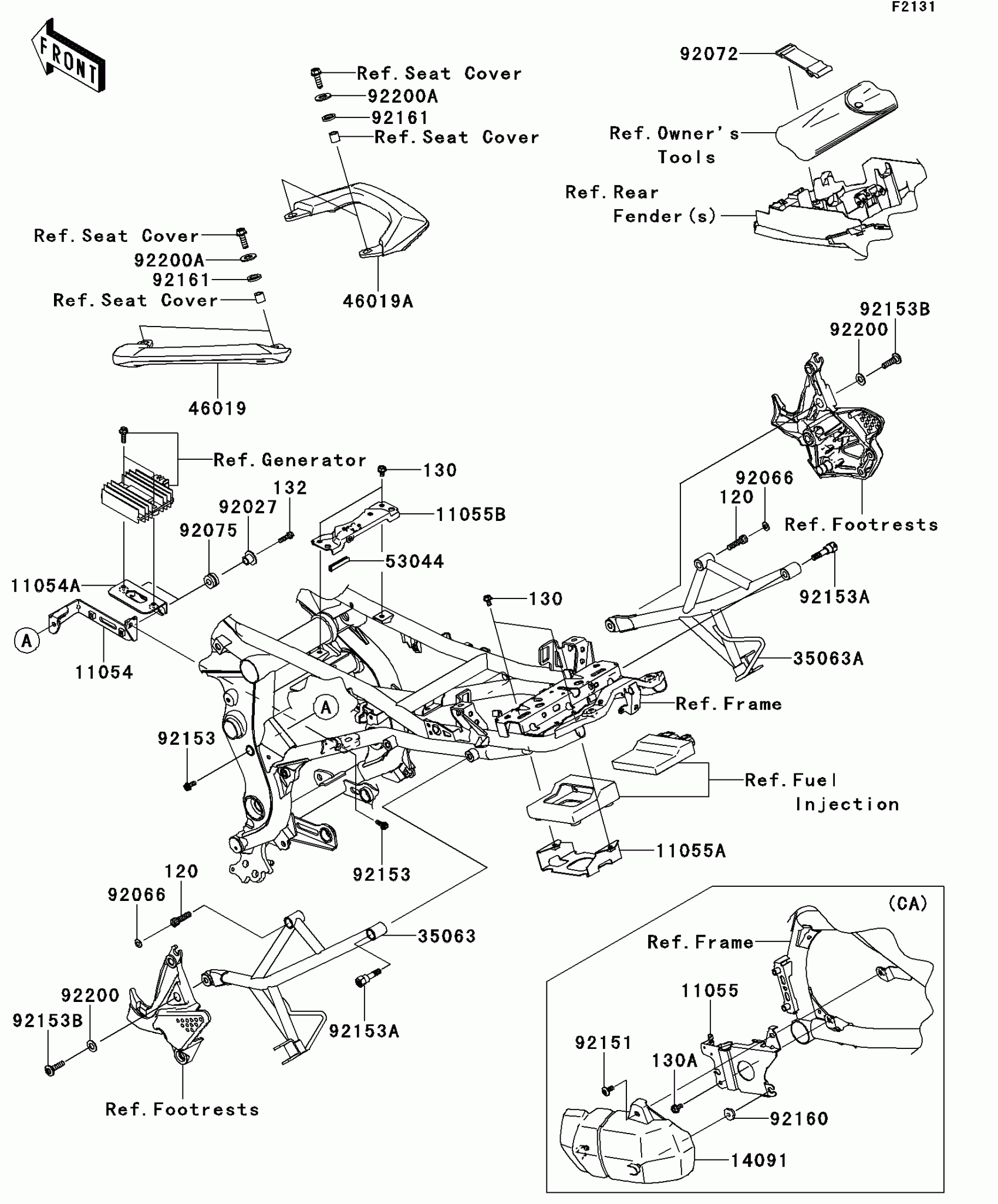

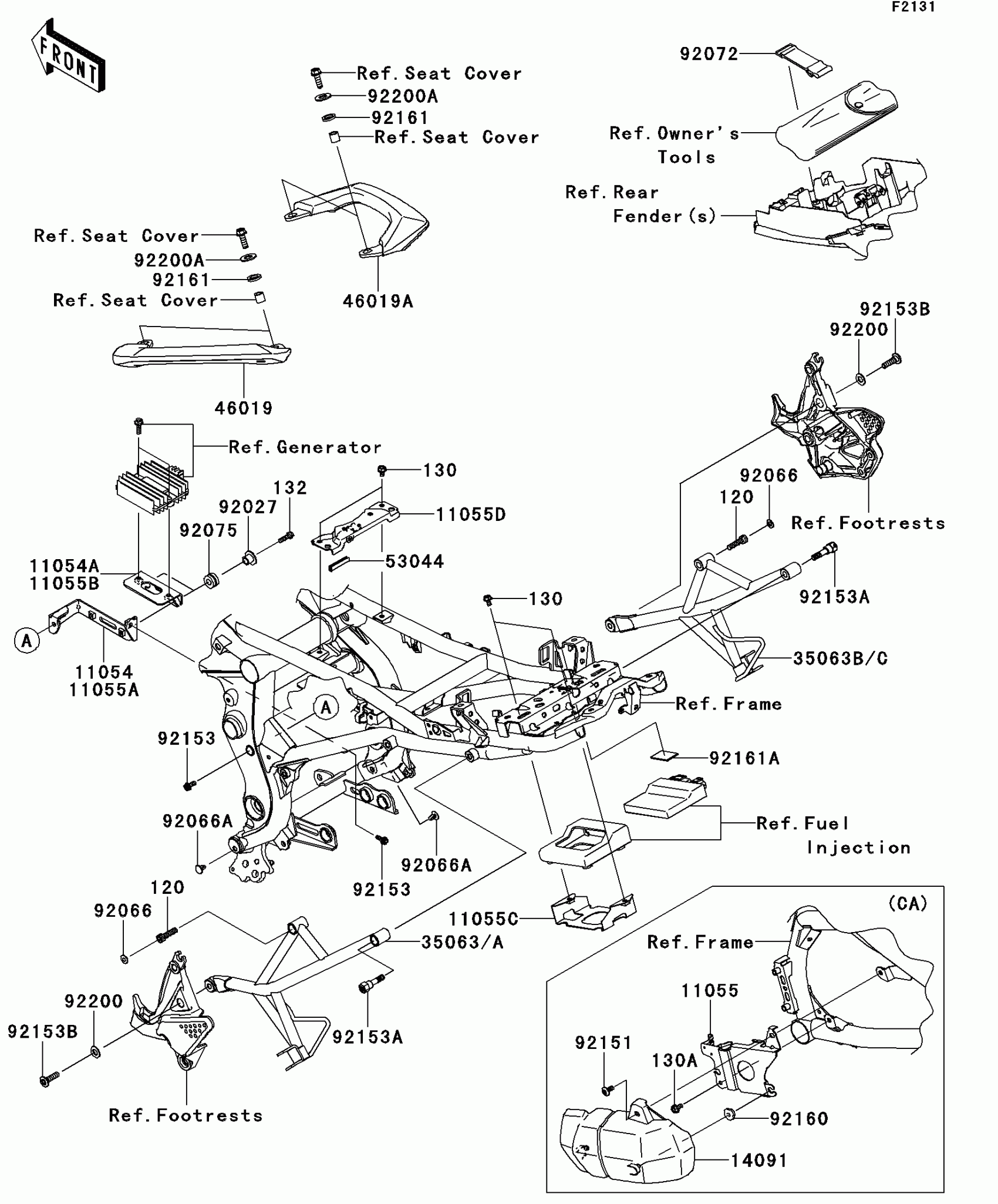

2010 Kawasaki Versys® Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,REGULATOR

11054-1283

1

$32.41

In stock

11054A

BRACKET,REGULATOR

11054-1284

1

$15.07

In stock

11055

BRACKET,CANISTER

11055-0586

1

$48.58

In stock

11055A

BRACKET,ECU

11055-1872

1

$21.80

In stock

11055B

BRACKET,FUEL TANK

11055-1929

1

$20.83

In stock

14091

COVER,CANISTER

14091-1586

1

$38.90

In stock

35063

STAY,STEP,RR,LH,F.M.GRAY

35063-0478-26M

1

$170.42

In stock

35063A

STAY,STEP,RR,RH,F.M.GRAY

35063-0479-26M

1

$170.42

In stock

46019

GRIP-ASSY,LH

46019-0030

1

$98.72

In stock

46019A

GRIP-ASSY,RH

46019-0031

1

$98.72

In stock

53044

TRIM,L=40

53044-1174

1

$3.85

In stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1

$4.93

In stock

92066

PLUG

92066-1216

1

$3.69

In stock

92072

BAND,TOOL

92072-1176

1

$12.34

In stock

92075

1

$3.72

In stock

92151

BOLT,SOCKET,6X14

92151-1654

1

$1.56

In stock

92153

BOLT,SOCKET,6X16

92153-1517

1
Out of stock

92153A

BOLT

92153-1532

1
Out of stock

92153B

BOLT,SOCKET,8X30

92153-1630

1

$2.15

In stock

92160

DAMPER

92160-1613

1

$2.97

In stock

92161

DAMPER,14X22X3

92161-0867

1

$3.29

In stock

92200

WASHER,10.2X20X1.6

92200-0328

1
Out of stock

92200A

WASHER,8.2X26X3.2

92200-0568

1
Out of stock

120

BOLT-SOCKET,8X30

120CA0830

1

$2.29

In stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

132

1

$1.93

In stock
